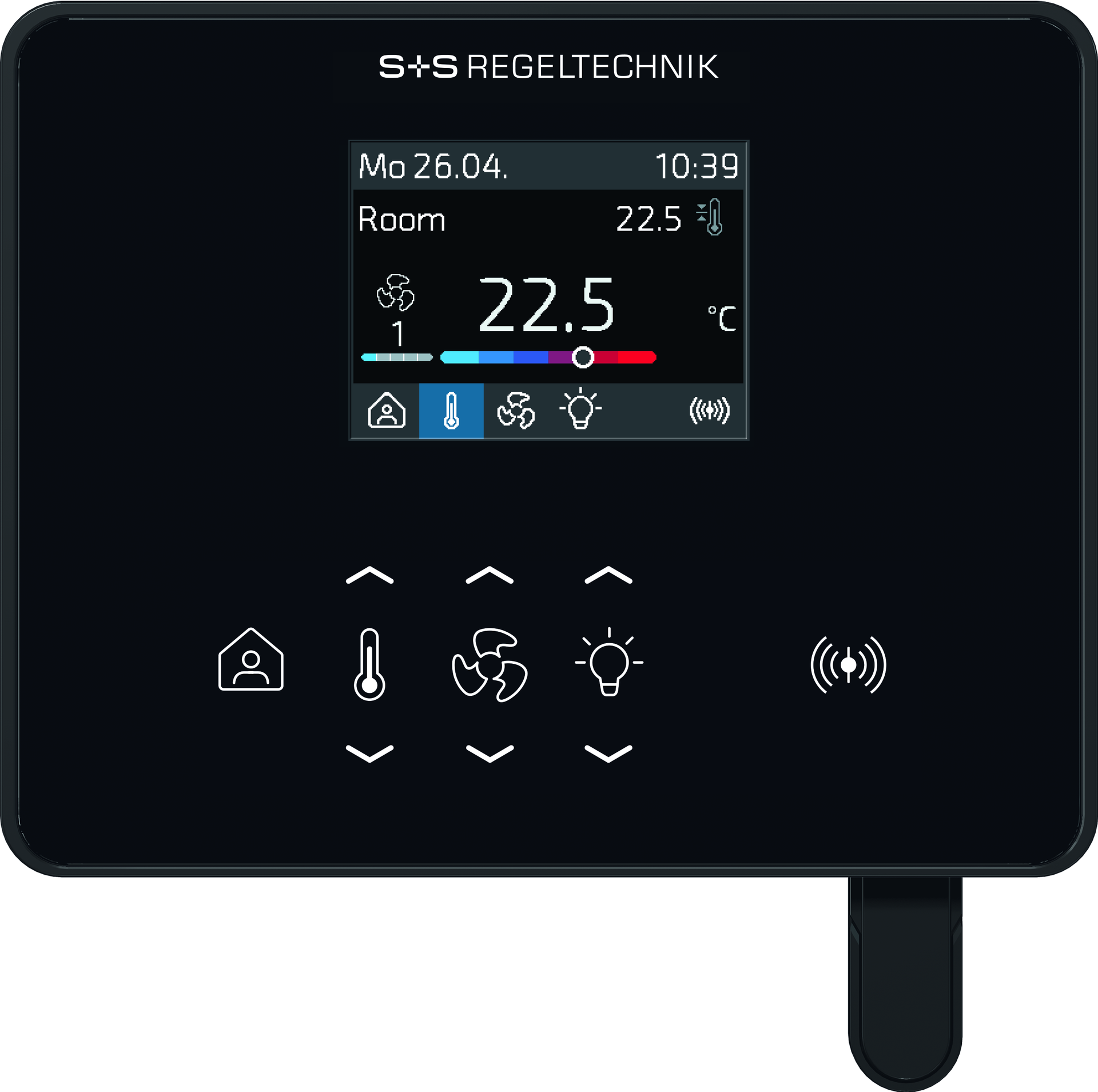

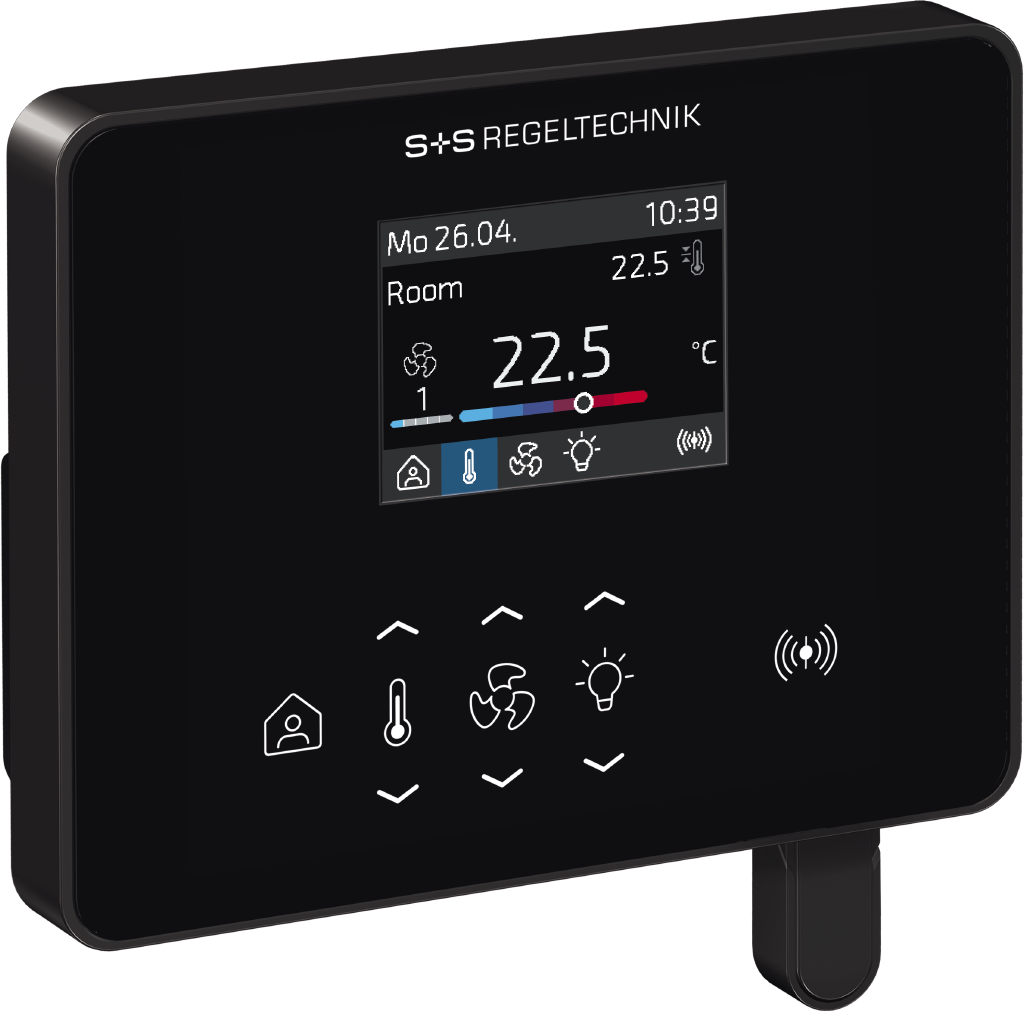

RYMASKON® RYM 1402-RH-WMOD-L

The RYMASKON® 1000 / 2000 / 3000 series room operating units are designed for controlling (up to 5 climate zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan levels of the interior. The controller variants can be operated as stand-alone devices thanks to the integrated PI, PWM or 2-/3-point control functions. The product family is characterized by its elegant design, intuitive operation and the many possible combinations of the individual components.

The RYMASKON® 1000 room operating units (interface) are used to control temperature, fans, sun shading (external venetian blinds, Venetian blinds) or light (with dimming function). The room operating units make the setpoints available to the BMS either via conventionally wired Modbus or via the wireless, radio-based W-Modbus. The visual display is a 2" TFT display and operation is via capacitive buttons (touch keys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. There is also an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact. For example, a window contact or a condensation monitor can be connected. This means that all options are available for flexible and individual air conditioning of the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mounted or surface-mounted boxes.
