Search: 329 results found for "hygrasreg kftf"

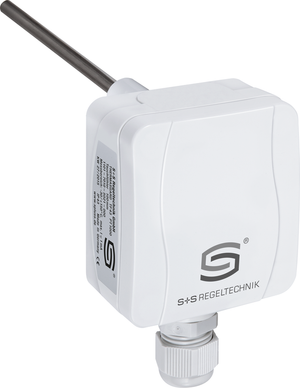

	THERMASGARD® TF43 Pt1000A 100mm 51254658597195 -30...+150 °C PT1000A Insertion length: 100 mm 4-wire connection IP54		Quantity: 34,30 € Unit price: 34,30 €

Search results "hygrasreg kftf"

°C
Frost protection thermostat

THERMASREG® FST-1D-HR

1102-1021-1102-000

Temperature limit switch (with manual reset)
–10...+15 °C/ +14...+59 °F,
factory setting w = +5 °C (+41 °F)
Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts also
switching of signal voltages < 24 V
Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
Capillary tube length: 6.0 m
Sensor response length: approx. 40 cm
Sensor: copper
Permissible medium: air
IP65
118,98 €
m/s
Airflow monitors

RHEASREG® PLSW-W24

1701-6113-0101-001

0.1...20 m/s
Flow velocity
Switching actuator (24 V)
Power supply: 24 V AC / DC
IP65
Mounting depth: 155 mm
235,08 €
°C
Frost protection thermostat

THERMASREG® FST-7D-HR

1102-1025-1102-000

Temperature limiter (with manual reset)
–10...+15 °C/ +14...+59 °F,
factory setting w = +5 °C (+41 °F)
Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts also
switching of signal voltages < 24 V
Switching differential: 2 ± 1 K (3,6 ± 1,8 °F)
Capillary tube length: 12.0 m
Sensing response length: approx. 40 cm
Sensor: Copper
Permissible medium: Air
IP65
188,09 €
°C + m/s + m³/h
Flow monitor

RHEASREG® KLGFVT-W LCD

1701-4118-1401-001

0.1...20 m/s
0...200,000 m³/h
Temperature, flow velocity, volume flow rate
2x AOS - automatic 0 -10 V/ 4...20 mA (linearized), switch-over (24 V)
IP 65, sensor technology IP 20
Mounting depths: 220 mm
418,83 €
Pa / bar / inWC
Differential pressure switch / differential pressure monitor

PREMASREG® DS-106

1302-4011-0000-000

20...300 Pa
Switching relay / relay (250 V)
Switching capacity (contact rating):
5 (0,8) A; 250 V AC
4 (0,7) A, 30 V DC
mechanical
IP54
60,46 €
°C
Frost protection thermostat

THERMASREG® FST-8D

1102-1024-0102-000

Temperature monitors (self-switching)
–10...+15 °C/ +14...+59 °F,
factory setting w = +5 °C (+41 °F)
Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts also
switching of signal voltages < 24 V
Switching differential: 2 ± 1 K (3,6 ± 1,8 °F)
Capillary tube length: 0,6 m
Sensor response length: approx. 40 cm
Sensor: Copper
Permissible medium: Air
IP65
93,76 €
Sale

m/s
Flow monitor

RHEASREG® KLSW-W24

1701-4113-0101-001

0.1...20 m/s
Flow velocity
Switching contact (24 V)
Power supply: 24 V AC / DC
IP 65; Sensor protection IP 20
Mounting depth: 220 mm
235,08 €

188,07 €
m/s
Duct DIN-rail air flow sensor / air flow monitor

RHEASREG® KHSSW-W24

1701-5113-0102-001

0,1...20 m/s
Flow velocity
Switching contact (24 V)
Power supply: 24 V AC / DC
IP 30, sensor section IP 20
Mounting dimensions: 155 mm
250,01 €
m/s
Duct DIN-rail air flow sensor / air flow monitor

RHEASREG® KHSSW-W230

1701-5133-0102-001

0,1...20 m/s
Flow velocity
Switch (230 V)
Power supply: 230 V AC
IP 30, sensor section IP 20
Installation depth: 155 mm
250,01 €
°C
Duct temperature controller

THERMASREG® KTR-1

1102-3010-1100-150

Temperature controller (external setting)

-35 ... +35 °C

Tmin ± 5 K; Tmax ± 3 K

Switching output (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA

Switching differential: 3 K

Installation dimensions:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protective sleeve:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
86,94 €
Sale

°C
Frost protection thermostat

THERMASREG® FST-8D-HR

1102-1024-1100-000

Temperature limiter (with manual reset)
–10...+15 °C/ +14...+59 °F,
factory setting w = +5 °C (+41 °F)
Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts, also
switching of signal voltages < 24 V
Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
Capillary tube length: 0.6 m
Sensing response length: approx. 40 cm
Capillary: copper
Permissible medium: air
IP65
108,98 €
Pa / bar / inWC
Volumetric flow meter

PREMASREG 7165-UW LCD

1302-7161-4171-200

5000Pa
212100 m³/h
0-10V, switcher / relay (24 V)
IP65
316,10 €
Plastic sintered filter

SF-K

7000-0050-2310-000

Plastic
Ø 16 mm, L = 35 mm
Replaceable
14,62 €
°C + m/s
Flow monitor

RHEASREG® KLGFT-W

1701-4118-0201-001

0.1...20 m/s
Temperature, flow velocity
2x AOS - automatically 0 -10 V/ 4...20 mA (linearized), changeover contact (24 V)
IP 65, sensing IP 20
Mounting depths: 220 mm
340,09 €
Mounting flange, plastic

MF-14-K

7100-0030-2000-000

Suitable for: KFF-VA, KFTF-VA, RPFF, RPFTF, KLGF, KLSW
Plastic, color Black
58 x 86 x 25 mm
Pipe penetration: Ø 14.2 mm
10,87 €
m/s
Air flow monitors

RHEASREG® PLGF-W

1701-6118-0100-001

0,1...20 m/s
Flow velocity
AOS - automatically 0 -10 V / 4...20 mA, changeover (24 V)
Power supply: 24 V AC / DC
IP 65, sensor class IP 20
Mounting depths: 155 mm
340,09 €
°C
Duct temperature controller

THERMASREG® KTR-1 U

1102-3010-2100-150

Temperature controller (external setting)

-35 ... +35 °C

Tmin ± 5 K; Tmax ± 3 K

Switching output (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA

Switching differential: 3 K

Insertion lengths:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protective sleeve:
metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
98,52 €
°C
Duct temperature controller

THERMASREG® KTR-0120

1102-3010-1100-550

Temperature controller (outdoor setting)

0 ... +120 °C

Tmin ± 5 K; Tmax ± 3 K

Switching output (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
with 24 V at least 150 mA

Switching differential: 5 K

Mounting dimensions:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protective sleeve:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
86,94 €
Pa / bar / inWC
Pressure- and differential pressure transmitters/switches

PREMASREG 7111-UW Q LCD

2004-6132-4100-001

+1000Pa
Accuracy Pressure: ± 10 Pa
0-10V, switch/relay (24 V)
M12 plug connector
IP65
321,14 €
°C
Duct temperature controller

THERMASREG® KTR-R6585

1102-3010-6100-750

Safety temperature limiter

+65 ... +85 °C

Tmin ± 5 K; Tmax ± 3 K

Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos φ = 1.0
24...250 V AC +10 %, 1.5 A, cos φ = 0.6
at 24 V at least 150 mA

Switching differential: +0/ −15...20 K

Mounting lengths:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protective well:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
103,07 €
Pa / bar / inWC
Volumetric flow meter

PREMASREG 7165-UW Q LCD

2004-6132-4100-031

5000 Pa
212100 m³/h
0-10 V, switching output / relay (24 V)
M12 plug connector
IP65
363,73 €
Mounting flange, plastic

MFT-20-K

7000-0031-0000-000

Suitable for: KFF, KFTF, KLQ, KCO2, KFTM
Plastic, color Black
62 x 87 x 30 mm
Pipe penetration: Ø 20 mm
10,87 €
°C
Duct temperature controller

THERMASREG® KTR-50140

1102-3010-1100-650

Temperature controller (external setting)

+50 ... +140 °C

Tmin ± 5 K; Tmax ± 3 K

Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA

Switching differential: 5 K

Mounting dimensions:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protective pocket:
metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
86,94 €
Pa / bar / inWC °C +1
Duct humidity and temperature sensor with integrated Pressure- and differential pressure transmitter

PREMASGARD 8148-Modbus LCD

1301-8144-4910-20V

±1500 Pa
Accuracy: ±13 Pa
Temperature, humidity, Pressure
Modbus
IP65 / IP67
640,78 €
