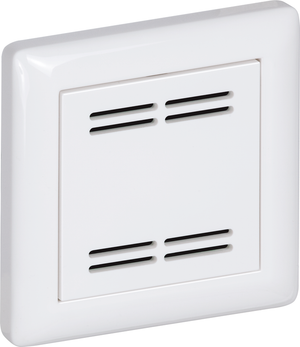

	THERMASGARD® FSTM-U 51255124623691 0...+50 °C typically ±0.8 K at +25 °C temperature [°C] 0-10V equipment: none		Quantity: 142,82 € Unit price: 142,82 €

Search results "hygrasreg kftf"

m/s
Duct DIN-rail air flow sensor / air flow monitor

RHEASREG® KHSSW-W230

1701-5133-0102-001

0,1...20 m/s
Flow velocity
Switch (230 V)
Power supply: 230 V AC
IP 30, sensor section IP 20
Installation depth: 155 mm
250,01 €
°C
Duct temperature controller

THERMASREG® KTR-090

1102-3010-1100-450

Temperature controller (external setpoint)

0 ... +90 °C

Tmin ± 5 K; Tmax ± 3 K

Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0,6
at 24 V at least 150 mA

Switching differential: 3 K

Mounting dimensions:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protective immersion pocket:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
86,94 €
Metal sinter filter

SF-M

7000-0050-2200-100

Stainless steel
Ø 16 mm, L = 32 mm
replaceable
48,10 €
°C + % RH + CO2
Duct sensors for humidity, temperature and CO2

AERASGARD® KFTM-CO2-W

1501-8116-7301-200

0...2000 ppm / 0...5000 ppm
Temperature, relative humidity, carbon dioxide (CO2)
active (0 -10 V / 4...20 mA), changeover contact
IP 65
423,89 €
m³/h
Flow monitor

RHEASREG® SW-4E

1702-3014-0041-000

mechanical
for liquid and gaseous, non-aggressive media
screw-in body made of brass
incl. built-in T-piece, ¾"
switching output (changeover contact)
working pressure max. 11 bar
medium temperature max. +120 °C
IP 65
262,90 €
Mounting flange, plastic

MF-20-K

7100-0030-4000-000

Suitable for: KH-10, KH-40, KHT-30
Plastic, color Black
58 x 86 x 25 mm
Pipe penetration: Ø 20.2 mm
10,87 €
Mounting flange, plastic

MF-06-K

7100-0030-1000-000

Suitable for: MWTF, MWTM

Plastic, color Black
58 x 86 x 25 mm
Cable pass-through: Ø 6.2 mm
6,95 €
m³/h
Flow monitor

RHEASREG® SW-2E

1702-3012-0101-000

mechanical
for liquid and gaseous media, ALSO aggressive media
Screw-in body stainless steel (V4A), R1"
for pipe Ø DN 1" ...8"
switching output (changeover contact)
working pressure max. 30 bar
medium temperature max. +120 °C
IP 65
539,67 €
m/s
Flow monitor

RHEASREG® KLSW 6

1701-3022-0000-000

0,1...15 m/ s

Flow velocity

2x changeover contact

Power supply: 24 V AC / DC

IP 65
721,29 €
Mounting flange, plastic

MF-16-K

7100-0030-0000-000

Suitable for: KFTF-VA
Plastic, color black
58 x 86 x 25 mm
Pipe penetration: Ø 16.2 mm
10,87 €
TW Modbus SD (external)

1201-121H-3001-030

229,93 €
Sale

°C + % RH + CO2 + VOC + PM + CO + atm. pressure
Multi-Sensor Modbus AMS03-MODBUS LCD

3CON-0107-1007-000

0...100 % RH
-20...+50°C
Multi-range switching (selectable via DIP switches) – 0...2000 ppm; 0...5000 ppm; 0...10000 ppm
0...100 % air humidity
PM2.5 & PM10: 0 µg/m³ ... 1000 µg/m³
0...1000 ppm
Ambient/barometric air pressure: 500-1150 mbar

Temperature [°C], relative humidity [% RH],
carbon dioxide (CO2), air quality (VOC), particulate matter (PM),
ambient air pressure, carbon monoxide (CO)

Modbus RTU

Protection rating (housing): IP 65
Protection rating (sensor): IP 20
1.854,97 €

1.055,65 €
Sale

°C + % RH + CO2 + VOC + PM + CO
Multi-Sensor Modbus AMS01-MODBUS LCD

3CON-0107-1005-000

0...100 % RH
-20...+50°C
Multi-range switching (selectable via DIP switches) – 0...2000 ppm; 0...5000 ppm; 0...10000 ppm
0...100 % air humidity
PM2.5 & PM10: 0 μg/m³ ... 1000 μg/m³
0...1000 ppm

relative humidity [% RH], temperature [°C],
carbon dioxide (CO2), air quality (VOC), particulate matter (PM),
carbon monoxide (CO)

Modbus RTU

Protection rating (enclosure): IP 65
Protection rating (sensor): IP 20
1.749,94 €

952,57 €
Sale

°C + % RH + CO2 + VOC + PM + atm. pressure
Multi-Sensor Modbus AMS02-MODBUS LCD

3CON-0107-1006-000

0...100 % RH
-20...+50°C
Multi-range switching (selectable via DIP switches) – 0...2000 ppm; 0...5000 ppm; 0...10000 ppm
0...100 % air humidity
PM2.5 & PM10: 0 μg/m³ ... 1000 μg/m³
Ambient/barometric air pressure: 500-1150 mbar

Temperature [°C], relative humidity [% RH],
Carbon dioxide (CO2), air quality (VOC), particulate matter (PM),
ambient air pressure

Modbus RTU

Protection class (enclosure): IP 65
Protection class (sensor): IP 20
1.715,21 €

976,11 €
TW Modbus SD LCD

1201-121H-3201-020

268,00 €
% RH
Condensation monitor

HYGRASREG® KW-W-SD external

Switch point: approx. 93 % RH
Relative humidity [% RH]
Changeover contact
IP 54
131,41 €
°C + % RH
Surface-mounted humidity and temperature sensor

HYGRASGARD® AFTF-20-I Q LCD

–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH
Typical measurement accuracy ± 0.2 K at +25 °C
Temperature [°C], relative humidity [% RH]
4...20 mA
M12 plug connector
IP 65
403,57 €
