Kanaltemperaturregler THERMASREG KTR-R6585 - S+S Regeltechnik

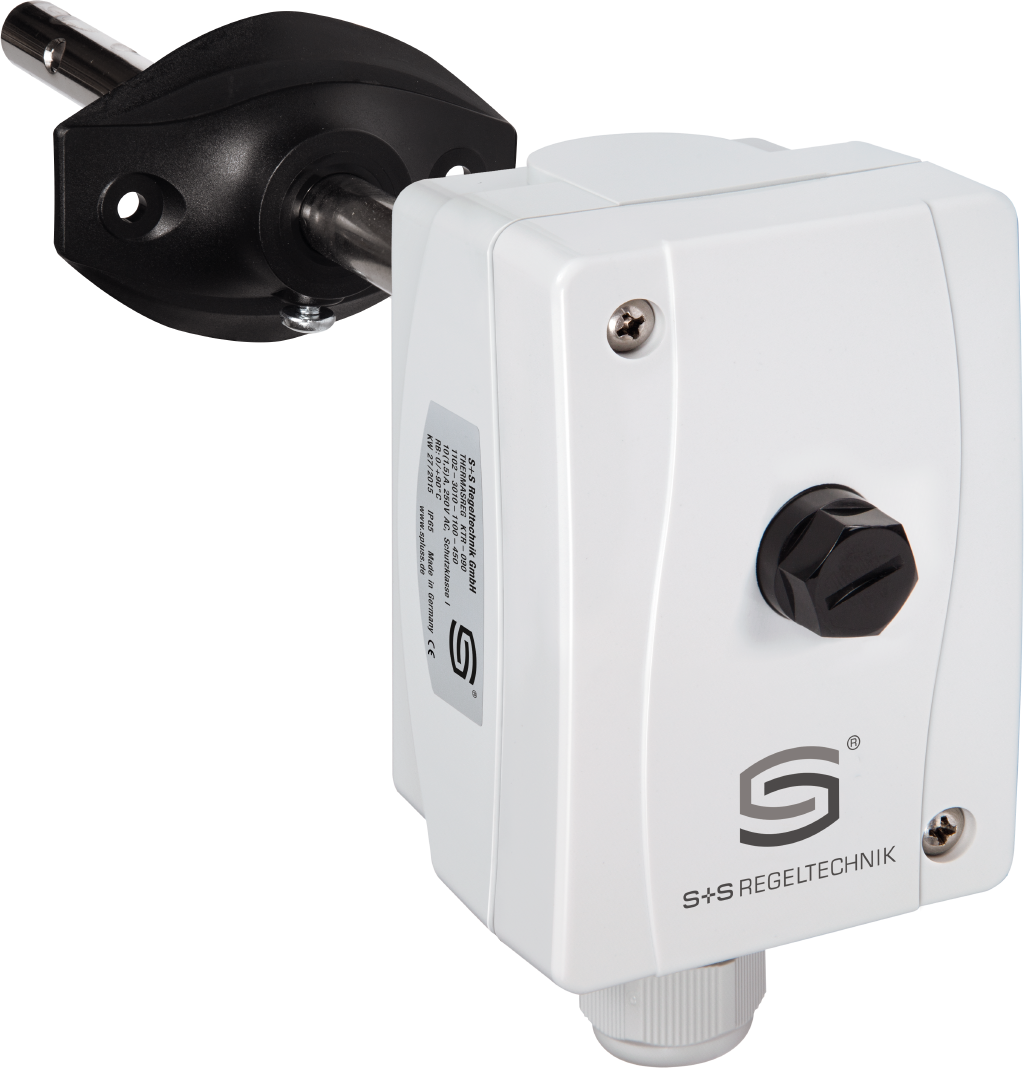

Regulador de temperatura del conducto THERMASREG® KTR-R6585

Nº de artículo 1102-3010-6100-750 EAN 4251325609720 Grupo de productos: WG02
En stock disponible en 1-3 días laborables
Precio habitual $109.79
Precio habitual Precio de oferta $109.79

Descripción del producto

  • Limitador de temperatura de seguridad
  • +65 ... +85 °C
  • Tmín ± 5 K; Tmáx ± 3 K
  • Capacidad de conmutación (carga de los contactos)
    24...250 V AC +10 %, 10 A, cos ϕ = 1,0
    24...250 V CA +10 %, 1,5 A, cos ϕ = 0,6
    a 24 V al menos 150 mA
  • Diferencial de conmutación: +0/ -15...20 K
  • Longitud de instalación:
    aprox. 205 mm (con brida);
    aprox. 184 mm (sin brida)
  • Tubo de protección:
    de metal, material CuZn37 (2.0321),
    Ø 14 mm, NL = 205 mm
  • IP65

Producto de calidad alemana con homologación DIN. Certificado CE de tipo (módulo B), de conformidad con la Directiva 97/23/CE. Dispositivos de control y limitación de temperatura para sistemas de generación de calor, de conformidad con la norma DIN EN 14597.

Regulador de temperatura mecánico/termostato de varilla THERMASREG KTR con salida de conmutación, que se utiliza para supervisar, controlar o limitar la temperatura de medios líquidos o gaseosos como regulador de calderas o en la tecnología de calefacción, ventilación y aire acondicionado, así como en la ingeniería mecánica y de aparatos y en los sistemas de generación de calor. El dispositivo está diseñado como regulador de temperatura regulable de una o dos etapas TRmonitor de temperatura TW o limitador de temperatura de seguridad STB.
