Products

Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 7112-I Q LCD

2004-6132-3100-011
±25 Pa
Accuracy Pressure: ± 1 Pa
4..20 mA
M12 plug connector
IP65
$465.68
Pa / bar / inWC
Pressure transducer for differential pressure and volume flow

PREMASGARD 6127-ECATP

2004-6271-9100-001
+7000Pa
Accuracy: ± 35 Pa
Differential pressure, volumetric flow rate

EtherCAT P
IP54
$466.33
Pa / bar / inWC
Pressure transducer for differential pressure and volume flow

PREMASGARD 6128-ECATP

2004-6271-9100-011
±1500 Pa
Accuracy: ± 3 Pa
Differential pressure, volumetric flow rate
EtherCAT P
IP54
$466.33
CO2
Duct CO2 sensor | CO2 sensor

AERASGARD® KCO2-AW LCD 120mm

1501-3140-E321-601
0...2000 ppm or 0...5000 ppm
Carbon dioxide (CO2)
automatically 0 -10 V / 4...20 mA
potential-free changeover contact (24 V / 1 A)
IP 65
$469.02
Pa / bar / inWC °C
Dual pressure sensor as pressure transmitter and differential pressure transmitter

PREMASGARD 7249T-Modbus Q

2005-6331-6100-001
2 measuring channels (1/2): ±500/±17000 Pa
±13 Pa / ±105 Pa
Modbus
M12 plug connector
IP65 / IP67
$470.36
Pa / bar / inWC °C
Double-pressure sensor as a pressure transmitter and differential pressure transmitter

PREMASGARD 7245T-Modbus Q

2005-6331-6100-021
2 measuring channels (1./2.): ±1500/±1500 Pa
± 13 Pa
Modbus
M12 plug connector
IP65 / IP67
$470.36
CO2
Room pendulum CO2 sensor

AERASGARD® RPCO2-W

3CON-0203-1001-000
0...2000 ppm / 0...5000 ppm / 0...10000 ppm
Carbon dioxide (CO2)
active (0 -10 V / 4...20 mA), changeover contact
IP 65/30 (housing / probe)
$539.01

$471.00
°C + % RH

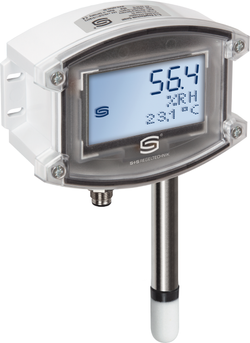

Surface-mount humidity and temperature sensor (± 2.0 %)

HYGRASGARD® AFTF-ECATP

2003-6261-9100-001
0...100 % RH
−35...+80 °C

Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]

EtherCAT P

IP 54
$471.88
°C + m/s + m³/h
Flow monitor

RHEASREG® KLGFVT-W LCD

1701-4118-1401-001
0.1...20 m/s
0...200,000 m³/h
Temperature, flow velocity, volume flow rate
2x AOS - automatic 0 -10 V/ 4...20 mA (linearized), switch-over (24 V)
IP 65, sensor technology IP 20
Mounting depths: 220 mm
$473.28
m/s + m³/h
Air flow monitors

RHEASREG® PLGFV-W LCD

1701-6118-1300-001
0.1...20 m/s
Flow velocity, volume flow rate
AOS - automatically 0 -10 V / 4...20 mA, changeover contact (24 V)
Power supply: 24 V AC / DC
IP 65, sensor unit IP 20
Mounting depths: 155 mm
$473.28
m/s
Flow monitor

RHEASGARD® KLGF-Modbus LCD 120mm

1701-4216-1102-000
0.1...20 m/s
Flow velocity
Modbus RTU
IP 65, sensor technology IP 20
Mounting depth: 120 mm
$473.85
°C
Average Temperature Transmitter

THERMASGARD® MWTM-wModbus 6M

1101-326F-0260-000
– 50...+ 150 °C; Tmin 50 °C, Tmax + 80 °C
Probe length: 6.0 m
Channel fault
W-Modbus
IP65
$475.38
°C + % RH + CO2
Room sensors for humidity, temperature and CO2

AERASGARD® RFTM-CO2-Modbus LCD

1501-61B6-6021-200
0...5000 ppm
Temperature, relative humidity, carbon dioxide (CO2)
without potentiometer
switchable metric / imperial
Modbus RTU
IP 30
$476.77
°C + % RH + PM
Room sensors for humidity, temperature and PM

AERASGARD® RFTM-PS-Modbus

1501-2116-6001-200
0...50 / 0...100 / 0...300 / 0...500 μg/m³
Temperature, relative humidity, particulate matter (PM)
switchable metric / imperial
Modbus RTU
IP 30
$477.13
°C + % RH + CO2
Duct sensors for humidity, temperature and CO2

AERASGARD® KFTM-CO2-W

1501-8116-7301-200
0...2000 ppm / 0...5000 ppm
Temperature, relative humidity, carbon dioxide (CO2)
active (0 -10 V / 4...20 mA), changeover contact
IP 65
$479.00
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-Modbus 6 LCD

1301-2214-5550-221
0... 6 bar
Modbus RTU
G1/2"
suitable for ammonia and Freons
$479.97

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
