Pendulum humidity sensor

HYGRASGARD® pendulum humidity sensors are used for precise humidity and temperature measurement in refrigeration, air conditioning or clean room technology, in meeting rooms or hotels as well as in glasshouses and greenhouses. The sensors are suitable for ceiling and duct mounting or for device installation.

%RH
Room pendulum humidity sensor

HYGRASGARD® RPFF-SD-I

1201-1172-0000-150
0...100 % RH
Accuracy: ± 2 %
Relative humidity [% RH]
4...20 mA
IP65
$200.48
%RH
Room pendulum humidity and temperature sensors

HYGRASGARD® RPFF-I

1201-1172-0000-100
0...100 % RH
Accuracy: ± 2 %
Relative Humidity [% RH]
4..20mA
IP65, IP67
$255.02
%RH
Room humidity and temperature sensors

HYGRASGARD® RPFF-U

1201-1171-0000-100
0...100 % RH
Accuracy: ± 2 %
Relative Humidity [% RH]
0-10V
IP65, IP67
$255.02
°C %RH
Room pendulum humidity and temperature sensors

HYGRASGARD® RPFTF-I

1201-1172-1000-100
0...100 % RH
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C
Humidity accuracy: ± 2 % / Temp.: ± 0.2 K
relative humidity [% RH], temperature
4..20mA
IP65, IP67
$260.75
°C %RH
Room pendulum humidity and temperature sensors

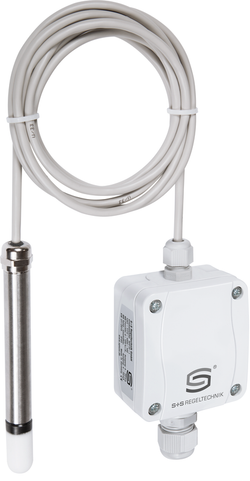

HYGRASGARD® RPFTF-U

1201-1171-1000-100
0...100 % RH
−35...+35 / −35...+75 / 0...+50 / 0...+80 °C
Humidity accuracy: ± 2 % / Temp.: ± 0.2 K
relative humidity [% RH], temperature
0-10V
IP65, IP67
$260.75
%RH
Room pendulum humidity and temperature sensors

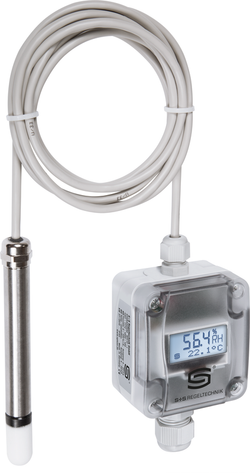

HYGRASGARD® RPFF-I LCD

1201-1172-0200-100
0...100 % RH
Accuracy: ± 2 %
Relative humidity [% RH]
4..20mA
IP65, IP67
$318.99
%RH
Room pendulum humidity and temperature sensors

HYGRASGARD® RPFF-U LCD

1201-1171-0200-100
0...100 % RH
Accuracy: ± 2 %
relative humidity [% RH]
0-10V
IP65, IP67
$318.99
°C %RH
Room pendulum humidity and temperature sensors

HYGRASGARD® RPFTF-I LCD

1201-1172-1200-100
0...100 % RH
−35...+35 / −35...+75 / 0...+50 / 0...+80 °C
Accuracy humidity: ± 2 % / Temp.: ± 0.2 K
Relative humidity [% RH], temperature
4..20mA
IP65, IP67
$324.73
°C %RH
Room pendulum humidity and temperature sensors

HYGRASGARD® RPFTF-U LCD

1201-1171-1200-100
0...100 % RH
−35...+35 / −35...+75 / 0...+50 / 0...+80 °C
Humidity accuracy: ± 2 % / Temp.: ± 0,2 K
relative humidity [% RH], temperature
0-10V
IP65, IP67
$324.73
RPFTF Modbus SD

1201-127H-1000-000

$369.45
°C %RH
Room pendulum humidity and temperature sensor

HYGRASGARD® RPFTF-Modbus-T3

1201-6246-1000-000
0...100 % RH (humidity)
-35...+80 °C (temperature)
Humidity accuracy: ± 2.0 % / Temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]
Modbus
IP65
$380.53
New

°C %RH
Room pendulum humidity and temperature sensor

HYGRASGARD® RPFTF-wModbus

1201-624F-1000-000
0...100 % RH (humidity)
-35...+80 °C (temperature)
Humidity accuracy: ± 2.0 % / Temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]
W-Modbus
IP65
$430.39
RPFTF Modbus SD LCD

1201-127H-1200-000

$433.46
°C %RH
Room pendulum humidity and temperature sensor

HYGRASGARD® RPFTF-20-Modbus

1201-1276-1000-101
0...100 % RH (Humidity)
-35...+80 °C (Temperature)
Humidity accuracy: ± 1.8 % / Temp.: ± 0.6 K
Modbus
IP65
$443.17
°C %RH
Room pendulum humidity and temperature sensor

HYGRASGARD® RPFTF-Modbus-T3 LCD

1201-6246-1400-000
0...100 % RH (humidity)
-35...+80 °C (temperature)
Humidity accuracy: ± 2.0 % / Temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]
Modbus
IP65
$489.73
°C %RH
Room pendulum humidity and temperature sensor

HYGRASGARD® RPFTF-20-Modbus-T3

1201-6246-1000-001
0...100 % RH (humidity)
-35...+80 °C (temperature)
Humidity accuracy: ± 1.8 % / Temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]
Modbus
IP65
$495.45

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
