Differential pressure transmitter

PREMASGARD® differential pressure sensors are used to measure positive pressure, negative pressure and differential pressure in almost neutral gaseous and liquid media. Measured variables are converted into a standard signal of 0-10 V or 4...20 mA. Areas of application include industrial or sanitary measurement technology, hydraulic systems and building automation.

LCD-SHD-U

1301-5111-5000-200
for SHD/ SHD-SD/ SHD 692
U-variant (0 - 10 V)
Output: 0-10V
15 predefined measuring ranges + 1x freely definable measuring range
Min/max values / averaging
Units: bar, kPa, psi, inWC, atm, mWC
$229.16

$272.67
LCD-SHD-I

1301-5112-5000-100
for SHD/ SHD-SD/ SHD 692
I variant (4...20 mA)
Output: 4..20mA
15 predefined measuring ranges + 1x freely definable measuring range
Min/max values / averaging
Units: bar, kPa, psi, inWC, atm, mWC
$229.16

$272.67
LCD-SHD-Modbus

1301-5114-5000-200
for SHD/ SHD-SD/ SHD 692
U-variant (0 - 10 V)
Output: Modbus RTU
15 predefined measuring ranges + 1x freely definable measuring range
Min/max values / averaging
Units: bar, kPa, psi, inWC, atm, mWC
$264.42

$314.58
PREMASGARD® SHD 692-U-900

1301-4121-0500-000
0...0.1 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-U-907

1301-4121-0510-000
0...0.5 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-U-912

1301-4121-0520-000
0... 1 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-U-916

1301-4121-0530-000
0...2.5 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-U-918

1301-4121-0540-000
0... 4 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-U-919

1301-4121-0550-000
0... 6 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-U-930

1301-4121-0560-000
0...10 bar
0-10V
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-I-900

1301-4122-0500-000
0...0.1 bar
4..20mA
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-I-907

1301-4122-0510-000
0...0.5 bar
4..20mA
G1/8"
$427.05

$508.18

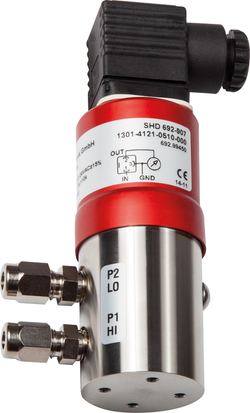

PREMASGARD® SHD 692-I-912

1301-4122-0520-000
0... 1 bar
4..20mA
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-I-916

1301-4122-0530-000
0...2.5 bar
4..20mA
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-I-918

1301-4122-0540-000
0... 4 bar
4..20mA
G1/8"
$427.05

$508.18
PREMASGARD® SHD 692-I-919

1301-4122-0550-000
0... 6 bar
4..20mA
G1/8"
$427.05

$508.18

Ratgeber Differenzdruckmessumformer

Der Differenzdruck verändert sich durch Luftströmungen, Filterverschmutzung, Klappenstellungen oder Druckverhältnisse in Lüftungs- und Klimaanlagen. Schon kleine Abweichungen können die Effizienz eines Systems beeinträchtigen – etwa durch verstopfte Filter, falsch eingestellte Volumenströme oder unerkannte Leckagen.
Differenzdrucksensoren helfen, solche Veränderungen frühzeitig zu erkennen. So lassen sich Wartungsbedarfe, Energieverluste oder Störungen im Luftstrom gezielt identifizieren. Die Sensoren liefern zuverlässige Daten für Ihre HLK-, Gebäude- oder Automationssysteme und tragen damit aktiv zur Betriebssicherheit, Energieeffizienz und Anlagenoptimierung bei.

Further links

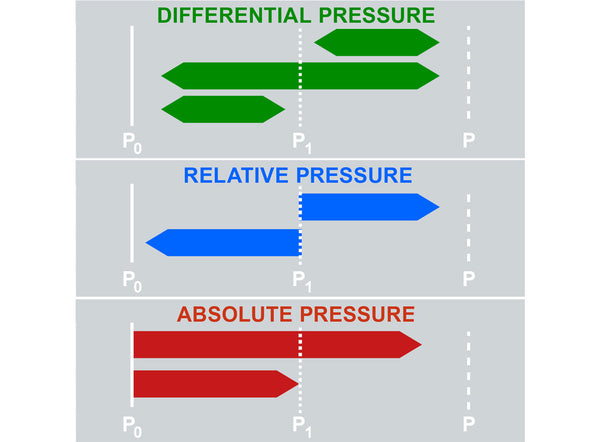

Arten der Druckmessung Funktionsweise eines Differenzdruckmessumformers Einsatzbereiche von Differenzdrucksensoren Vorteile moderner Differenzdruck Transducer Die richtige Auswahl des Differenzdrucksensors Differenzdrucksensoren von S+S

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
