Outdoor humidity sensor

HYGRASGARD® outdoor humidity sensors precisely measure the relative humidity of the ambient air outdoors. They are designed for use in weather-protected outdoor zones, industrial plants and climate monitoring systems. The recorded values are output as a standard signal (0-10 V or 4...20 mA), depending on the version. Some models also offer a potential-free changeover contact output for direct switching functions - ideal for building automation and HVAC technology.

%RH
On-wall humidity sensor / outdoor humidity sensor

HYGRASGARD® AFF-SD-I

1201-1122-0000-100
0...100 % RH
Measurement accuracy: ± 2 %
relative humidity [% RH]
4...20 mA
IP 65
$225.38
%RH
On-wall humidity sensor / outdoor humidity sensor

HYGRASGARD® AFF-SD-U

1201-1121-0000-100
0...100 % RH
Measurement accuracy: ± 2 %
relative humidity [% RH]
0 - 10 V
IP 65
$225.38
°C %RH
Surface-mounted humidity and temperature sensors

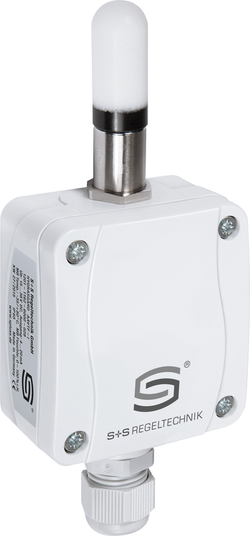

HYGRASGARD® AFTF-SD-I

1201-1122-1000-100
−35...+35 / −35...+75 / 0...+50 / 0...+80 °C
0...100 % RH
Measurement accuracy: ± 2 %
Temperature [°C], relative humidity [% RH]
4...20 mA
IP 65
$230.15
°C %RH
Surface-mounted humidity and temperature sensors

HYGRASGARD® AFTF-SD-U

1201-1121-1000-100
–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH
Measurement accuracy: ±2 %
Temperature [°C], relative humidity [% RH]
0 - 10 V
IP 65
$230.15
%RH
On-wall humidity sensor / outdoor humidity sensor

HYGRASGARD® AFF-I

1201-7112-0000-000
0...100 % RH

relative humidity [% RH]

4...20 mA

IP 65
$237.29
%RH
On-wall humidity sensor / outdoor humidity sensor

HYGRASGARD® AFF-U

1201-7111-0000-000
0...100 % RH

relative humidity [% RH]

0 - 10 V

IP 65
$237.29
°C %RH
Surface-mounted humidity and temperature sensors

HYGRASGARD® AFTF-SD-Modbus

1201-1226-1000-100
–35...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]

Modbus RTU

IP 65
$255.53
°C %RH
On-wall humidity sensor / outdoor humidity sensor for MIsch ratio

HYGRASGARD® AAVTF-I

1201-1162-6000-028
0...+50 \/ \u201320...+80 \/ \u201335...+75 \/ \u201335...+35 \u00b0C0...100 % RH

Temperature [\u00b0C], relative humidity [% RH],dew point [\u00b0C], absolute humidity [g \/ m³],mixing ratio [g \/ kg], enthalpy [kJ \/ kg]

4...20 mA

IP 65<\/li> <\/ul>
$256.32
°C %RH
On-wall humidity sensor / outdoor humidity sensor for MIsch ratio

HYGRASGARD® AAVTF-U

1201-1161-6000-028
0...+50 / \u201320...+80 / \u201335...+75 / \u201335...+35 °C
0...100 % RH

Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]

0 - 10 V

IP 65
$256.32
°C %RH
On-wall humidity and temperature sensors

HYGRASGARD® AFTF-I

1201-7112-1000-000
–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH]

4...20 mA

IP 65
$260.30
°C %RH
On-wall humidity and temperature sensors

HYGRASGARD® AFTF-U

1201-7111-1000-000
–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH]

0 - 10 V

IP 65
$260.30
°C %RH
On-wall humidity and temperature sensors

HYGRASGARD® AFTF-U NTC10K

1201-7111-2015-000
–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH]

0 - 10 V + NTC10K

IP 65
$261.10
°C %RH
On-wall humidity and temperature sensors

HYGRASGARD® AFTF-U NTC20K

1201-7111-2016-000
–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH]

0 - 10 V + NTC20K

IP 65
$261.10
°C %RH
On-wall humidity and temperature sensors

HYGRASGARD® AFTF-U Pt100

1201-7111-2001-000
–35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH]

0 - 10 V + Pt100

IP 65
$261.88
°C %RH
Surface-mounted humidity and temperature sensors

HYGRASGARD® AFTF-Modbus-T3

1201-12C6-1000-000
–35...+80 °C
0...100 % RH
Temperature [°C], relative humidity [% RH],
dew point [°C], absolute humidity [g / m³],
mixing ratio [g / kg], enthalpy [kJ / kg]
Modbus
IP 65
$263.19
°C %RH
On-wall humidity and temperature sensors

HYGRASGARD® AFTF-U Pt1000

1201-7111-2005-000
−35...+35 / −35...+75 / 0...+50 / 0...+80 °C
0...100 % RH

Temperature [°C], relative humidity [% RH]

0 - 10 V + Pt1000

IP 65
$263.47

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
