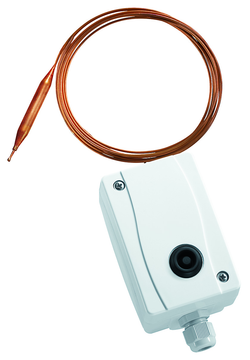

Sale°CTHERMASREG® FST-3D-HR
1102-1023-1100-000
- Temperature limiter (with manual reset)
- -10...+15 °C/ +14...+59 °F, factory setting w = +5 °C (+41 °F) / +14...+59 °F
- Switching capacity:10 (2) A, AC 250 V; also switches signal voltages due to the gold-plated contacts < 24 V
- Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
- Capillary tube length: 1.8 m / 26 ft
- Sensor response length: approx. 40 cm
- Capillary: Copper
- Permitted medium: air / water
- IP65
$127.42
$38.21
incl. VAT $45.43
-
°CTHERMASREG® ALTR-060
1102-1040-1100-300
- Temperature controller (external setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
incl. VAT $45.76
-
°CTHERMASREG® ALTR-060 U
1102-1040-2100-300
- Temperature monitor (internal setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
incl. VAT $45.76
-
°CTHERMASREG® ALTR-090
1102-1040-1100-400
- Temperature controller (external setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
incl. VAT $45.76
-
°CTHERMASREG® ALTR-090 U
1102-1040-2100-400
- Temperature monitor (internal setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
incl. VAT $45.76
