Products – Page 24 – S+S Regeltechnik

°C

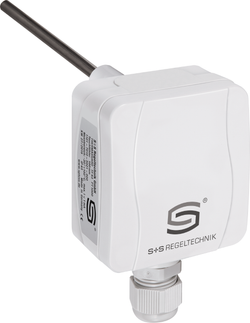

Immersion temperature sensor

THERMASGARD® TF43 NiTK 300mm

1101-7011-0061-000
-30...+150 °C

NI1000TK
Installation length: 300mm
2-wire connection
IP54
$46.12
°C
Immersion temperature sensor

THERMASGARD® TF43 NTC1.8K 400mm

1101-7011-2081-000
–30...+150 °C

NTC 1.8K
Insertion length: 400 mm
2-wire connection
IP54
$46.12
°C
Immersion temperature sensor

THERMASGARD® TF43 NTC10K 400mm

1101-7011-5081-000
–30...+150 °C

NTC 10K
Insertion length: 400mm
2-wire connection
IP54
$46.12
°C
Immersion temperature sensor

THERMASGARD® TF43 NTC20K 400mm

1101-7011-6081-000
–30...+150 °C

NTC 20K
Insertion length: 400 mm
2-wire connection
IP54
$46.12
°C
Sleeve sensor / cable temperature sensor

THERMASGARD® HTF50 NiTK PVC 10M

1101-6031-0301-110
Mounting lengths: 50 mm
Passive
-35...+105 °C
KL = 10 m
LiYY (PVC)
$46.26
°C
Immersion temperature sensor

THERMASGARD® TF43 Pt1000A 300mm

1101-7010-6063-000
–30...+150 °C

PT1000A
Immersion length: 300 mm
4-wire connection
IP54
$46.26
Nickel-plated brass thermowell

Thermowells TH-MS/VA TH-MS NPT 8in

7100-0011-0040-231
8 inch
NPT 1/2"
Brass nickel-plated / galvanized
max. Pressure: 10 bar
max. Medium temperature: +150 °C
Suitable for: TF 54/ TM 54 (Form B)
$46.50
°C

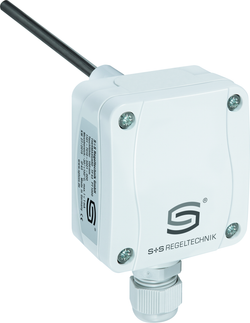

Immersion temperature sensor

THERMASGARD® TF65 NTC1.8K 50mm

1101-7021-2011-000
–30...+150 °C

NTC 1.8K
Insertion length: 50mm
2-wire connection
IP65, IP67
$46.61
°C
Immersion temperature sensor

THERMASGARD® TF65 NTC20K 50mm

1101-7021-6011-000
–30...+150 °C

NTC 20K
Immersion length: 50 mm
Two-wire connection
IP65, IP67
$46.61
°C
Immersion temperature sensor

THERMASGARD® TF65 NTC10K 50mm

1101-7021-5011-000
–30...+150 °C

NTC 10K
Insertion length: 50 mm
2-wire connection
IP65, IP67
$46.61
°C

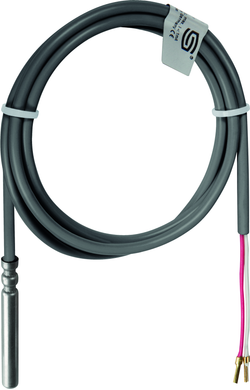

Sleeve sensor / cable temperature sensor

THERMASGARD® HTF50 LM235Z Silicone 8M

1101-6032-1281-120
Insertion length: 50 mm
passive
-40...+125 °C
KL = 8 m
SiHF (silicone)
$46.65
°C
Immersion temperature sensor

THERMASGARD® TF43 Pt100 400mm

1101-7010-1083-000
−30...+150 °C

PT100
Insertion length: 400mm
4-wire connection
IP54
$46.77
°C
Immersion temperature sensor

THERMASGARD® TF43 Pt1000 400mm

1101-7010-5081-000
−30...+150 °C

PT1000
Immersion length: 400 mm
2-wire connection
IP54
$46.77
°C
Immersion temperature sensor

THERMASGARD® TF43 Ni1000 350mm

1101-7010-9071-000
−30...+150 °C

NI1000
Installation length: 350 mm
Two-wire connection
IP54
$47.25
Stainless steel thermowell

Thermowells TH08-VA 400MM

7100-0012-0080-132
400 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. medium temperature: +600 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$47.26
°C

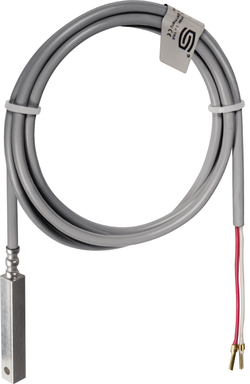

Interface temperature sensor/surface temperature sensor

THERMASGARD® OFTF Pt100 PVC 1.5M

1101-6010-1211-110
passive

-30...+105 °C

8 x 8 x 50 mm

Protective sleeve: Aluminium
$47.49

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
