Duct moisture sensor

HYGRASGARD® duct humidity sensors reliably and precisely measure the relative humidity and/or temperature in ventilation ducts, in refrigeration, air conditioning and clean room technology and convert the measured variables into a standard signal of 0-10 V or 4...20 mA. Some models also have a potential-free changeover contact as an output - ideal for flexible switching applications in building technology.
Many device groups can also display additional parameters: relative humidity [% r. H.], absolute humidity [g/ m³], mixing ratio [g/ kg], dew point temperature [°C], enthalpy [kJ/ kg] and ambient temperature [°C].

°C %RH
HYGRASGARD® KFTF-20-I

1201-3112-1000-030
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH / +32...+176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
4...20 mA
IP 65
$320.56

incl. VAT $381.36
°C %RH
HYGRASGARD® KFTF-20-U

1201-3111-1000-030
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH / +32...+176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
0 - 10 V
IP 65
$320.56

incl. VAT $381.36
°C %RH
HYGRASGARD® KFTF-20-Modbus

1201-3216-1000-030
0...100 % RH-35...+80 °C / -31...-176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.6 K
Temperature [°C], relative humidity [% RH], dew point [°C], absolute humidity [g / m³], mixing ratio [g / kg], enthalpy [kJ / kg]
Modbus RTU
IP 65
$321.28

incl. VAT $382.27
°C %RH

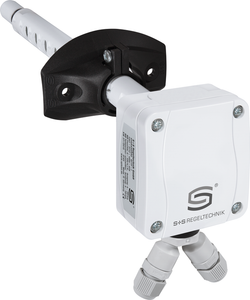

HYGRASGARD® KFTF-20-Modbus-T3

1201-32C6-1000-030
0...100 % RH-35...+80 °C / -31...-176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH], dew point [°C], absolute humidity [g / m³], mixing ratio [g / kg], enthalpy [kJ / kg]
Duct sensor
Modbus
IP 65
$330.92

incl. VAT $393.62
%RH
HYGRASGARD® KFF-20-I LCD

1201-8112-0400-030
0...100 % RH
Accuracy: ± 1.8 %
relative humidity [% RH]
4...20 mA
IP 65
$353.64

incl. VAT $420.71
%RH
HYGRASGARD® KFF-20-U LCD

1201-8111-0400-030
0...100 % RH
Accuracy: ± 1.8 %
relative humidity [% RH]
0 - 10 V
IP 65
$353.64

incl. VAT $420.71
New

°C %RH
HYGRASGARD® KFTF-wModbus LCD

1201-32CF-1400-029
0...100 % RH-35...+80 °C / -31...-176 °F
Accuracy humidity: ± 2 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH], dew point [°C], absolute humidity [g / m³], mixing ratio [g / kg], enthalpy [kJ / kg]
Duct sensor
W-Modbus
IP 65
$366.73

incl. VAT $436.27
°C %RH
HYGRASGARD® KFTF-20-I Q

2003-4151-2100-001
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
4...20 mA
M12 plug connector
IP 65
$371.32

incl. VAT $441.81
°C %RH
HYGRASGARD® KFTF-20-U Q

2003-4151-1100-001
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
0 - 10 V
M12 plug connector
IP 65
$371.32

incl. VAT $441.81
New

°C %RH
HYGRASGARD® KFTF-20-wModbus

1201-32CF-1000-030
0...100 % RH-35...+80 °C / -31...-176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH], dew point [°C], absolute humidity [g / m³], mixing ratio [g / kg], enthalpy [kJ / kg]
Duct sensor
W-Modbus
IP 65
$377.93

incl. VAT $449.56
°C %RH
HYGRASGARD® KFTF-20-I LCD

1201-8112-1400-030
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH / +32...+176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
4...20 mA
IP 65
$379.14

incl. VAT $451.15
°C %RH
HYGRASGARD® KFTF-20-U LCD

1201-8111-1400-030
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH / +32...+176 °F
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
0 - 10 V
IP 65
$379.14

incl. VAT $451.15
HYGRASREG® KFTF-45-U/W

1201-816A-1000-000
0...100% RH
0...+50 / –20...+50 / –20...+80 / 0...+100 °C / +32...+212 °F
Temperature [°C], relative humidity [% RH], absolute humidity [g / m³], dew point [°C], mixing ratio [g / kg], wet bulb temperature [°C]
3 active outputs (0 - 10 V or 4...20 mA) 1 changeover contact (potential-free, 48 V, 0.1 A, switching hysteresis: 2% of the selected scaling)
IP 65 (according to EN 60 529) >> Housing AND sensors <<
$412.45

incl. VAT $490.73
HYGRASREG® KFTF-45-I/W

1201-816B-1000-000
0...100% RH
0...+50 / –20...+50 / –20...+80 / 0...+100 °C / +32...+212 °F
Temperature [°C], relative humidity [% RH], absolute humidity [g / m³], dew point [°C], mixing ratio [g / kg], wet bulb temperature [°C]
3 active outputs (0 - 10 V or 4...20 mA) 1 changeover contact (potential-free, 48 V, 0.1 A, switching hysteresis: 2% of the selected scaling)
IP 65 (according to EN 60 529) >> Housing AND sensors <<
$412.45

incl. VAT $490.73
°C %RH
HYGRASGARD® KFTF-20-I Q LCD

2003-4172-2100-001
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
4...20 mA
M12 plug connector
IP 65
$429.86

incl. VAT $511.37
°C %RH
HYGRASGARD® KFTF-20-U Q LCD

2003-4172-1100-001
-35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH
Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
Temperature [°C], relative humidity [% RH]
0 - 10 V
M12 plug connector
IP 65
$429.86

incl. VAT $511.37

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
