Mounting accessories

Our mounting accessories ensure stable, secure and easy installation of your components in a wide range of applications - from sensors and housings to complex automation systems.

Whether thermowells, mounting flanges, mounting clamps, brackets or special brackets: all fastening solutions are precisely matched to our product series and support fast, flexible and permanently resilient installation - even under demanding environmental conditions.

With the right accessories, you can ensure that the function, durability and installation quality of your systems are optimally guaranteed.

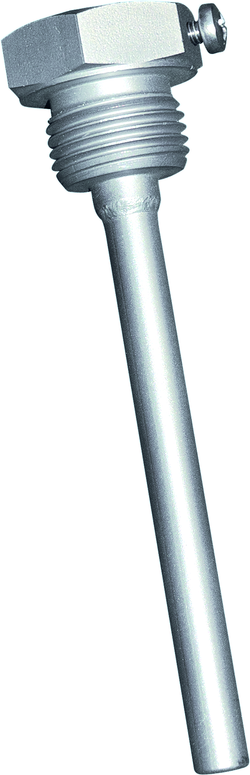

Stainless steel thermowell

Thermowells TH-VA-02

7100-0012-5402-000
Stainless steel immersion sleeve

Stainless steel

130 mm for FST
$52.32
Stainless steel thermowell

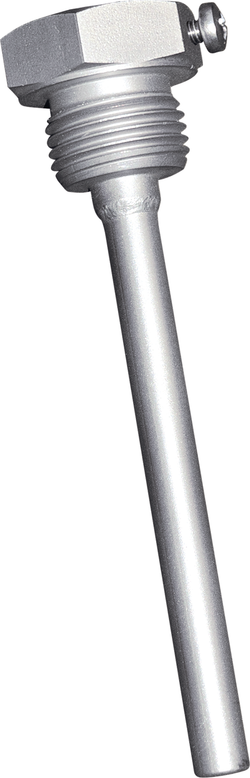

Immersion Sleeves THR-VA-09/150

7100-0012-3032-000
150 mm

G1/2"

Stainless steel V4A (1.4571)

max. Pressure: 25 bar

max. Medium temperature: +150 °C

suitable for: temperature controller ETR (Thor 2)
$52.65
Stainless steel thermowell

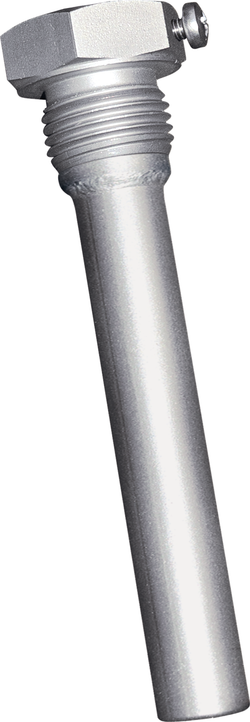

Immersion sleeves THR-VA-17/150

7100-0012-3033-000
150 mm

G1/2"

Made of stainless steel V4A (1.4571)

max. Pressure: 25 bar

max. medium temperature: +150 °C

suitable for: temperature controller ETR (Thor 2)
$52.65
Stainless steel thermowell

Immersion sleeves THR-VA-09/200

7100-0012-3042-000
200 mm

G1/2"

made of stainless steel V4A (1.4571)

max. Pressure: 25 bar

max. medium temperature: +150 °C

suitable for: temperature controller ETR (Thor 2)
$56.40
Stainless steel thermowell

Immersion Sleeves THR-VA-17/200

7100-0012-3404-000
200 mm

G1/2"

stainless steel V4A (1.4571)

max. Pressure: 25 bar

max. medium temperature: +150 °C

suitable for: temperature controller ETR (Thor 2)
$56.40
Stainless steel thermowell

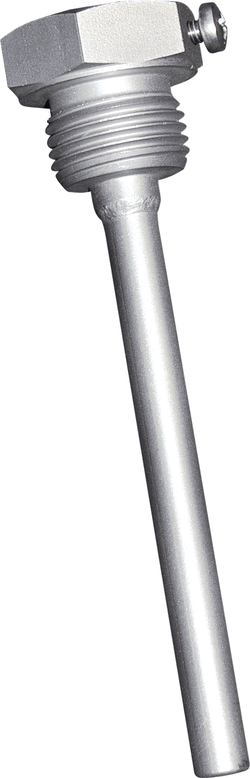

Immersion Sleeves TH-VA NPT 4in

7100-0012-0020-231
4 inch
NPT 1/2"
Made of stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. Medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$57.60

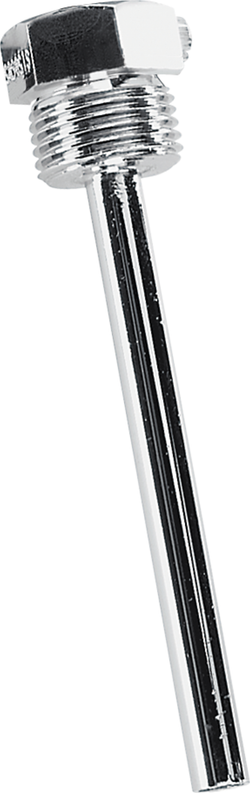

Nickel-plated brass thermowell

Immersion Sleeves TH-MS NPT 10 in

7100-0011-0050-231
10 inch
NPT 1/2"
Brass nickel-plated / galvanized
max. Pressure: 10 bar
max. Medium temperature: +150 °C
Suitable for: TF 54/ TM 54 (Form B)
$61.82
Stainless steel thermowell

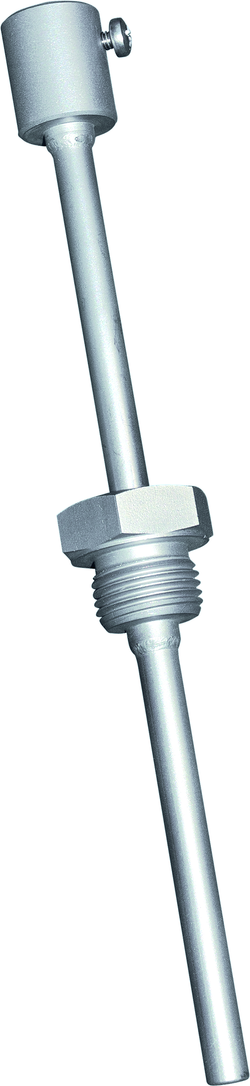

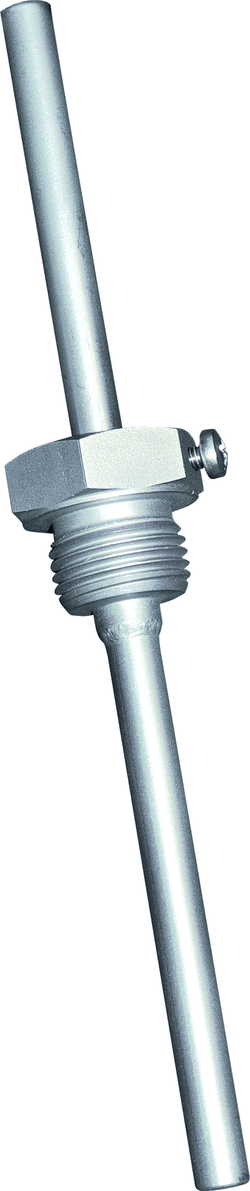

Immersion Sleeves TH-VA NPT 2+4 in

7100-0012-2010-231
2 inch
NPT 1/2"
Neck tube
made of stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$62.74
Stainless steel thermowell

Immersion Sleeves TH-VA NPT 6in

7100-0012-0030-231
6 inch
NPT 1/2"
Stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. Medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$64.01
Stainless steel thermowell

Immersion Sleeves TH-VA NPT 4+4 in

7100-0012-2020-231
4 inch
NPT 1/2"
Neck pipe
made of stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$69.16
Nickel-plated brass thermowell

Immersion Tubes TH-MS NPT 12in

7100-0011-0060-231
12 inch
NPT 1/2"
Brass, nickel-plated / galvanized
max. Pressure: 10 bar
max. Medium temperature: +150 °C
Suitable for: TF 54 / TM 54 (Form B)
$70.82
Nickel-plated brass thermowell

Immersion Sleeves TH-MS NPT 14in

7100-0011-0070-231
14 inch
NPT 1/2"
Brass nickel-plated / galvanized
max. Pressure: 10 bar
max. Medium temperature: +150 °C
Suitable for: TF 54/ TM 54 (Form B)
$79.81
Stainless steel thermowell

Immersion Sleeves TH-VA NPT 6+4 in

7100-0012-2030-231
6 inch
NPT 1/2"
Neck pipe
made of stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$83.47
Weld-in protective sleeve

Thermowells ESSH ESSH 100MM

7100-0052-0020-001
100 mm
G1/2"
Stainless steel V4A (1.4571)
max. Pressure: 100 bar
$88.45
Nickel-plated brass thermowell

Immersion Sleeves TH-MS NPT 16in

7100-0011-0080-231
16 inch
NPT 1/2"
Brass, nickel-plated / galvanized
max. Pressure: 10 bar
max. Medium temperature: +150 °C
Suitable for: TF 54/ TM 54 (Form B)
$88.80
Stainless steel thermowell

Immersion Sleeves TH-VA NPT 8in

7100-0012-0040-231
8 inch
NPT 1/2"
Stainless steel V4A (1.4571)
max. Pressure: 40 bar
max. Medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$92.65

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
