Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

°C
THERMASGARD® TF43 Pt100 250mm

1101-7010-1053-000
-30...+150 °C / -22...-302 °F

PT100
Installation length: 250mm / 10 in
4-wire connection
IP54
$39.46

incl. VAT $46.87
°C
THERMASGARD® TF43 Pt1000 250mm

1101-7010-5051-000
-30...+150 °C / -22...-302 °F

PT1000
Installation length: 250mm / 10 in
2-wire connection
IP54
$39.46

incl. VAT $46.87
°C
THERMASGARD® TF43 Ni1000 100mm

1101-7010-9021-000
-30...+150 °C / -22...-302 °F

NI1000
Installation length: 100mm / 4 in
2-wire connection
IP54
$39.54

incl. VAT $46.95
°C
THERMASGARD® TF43 NiTK 100mm

1101-7011-0021-000
-30...+150 °C / -22...-302 °F

NI1000TK
Installation length: 100mm / 4 in
2-wire connection
IP54
$39.61

incl. VAT $47.02
°C

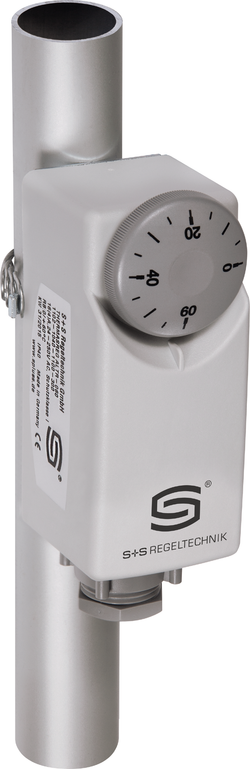

THERMASREG® ALTR-060

1102-1040-1100-300
Temperature controller (external setting)

0...+60 °C / +32...+140 °F

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA

Switching differential: 8K (± 1K)

Sensor element: Bimetal

Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)

IP40
$39.70

incl. VAT $47.11
°C

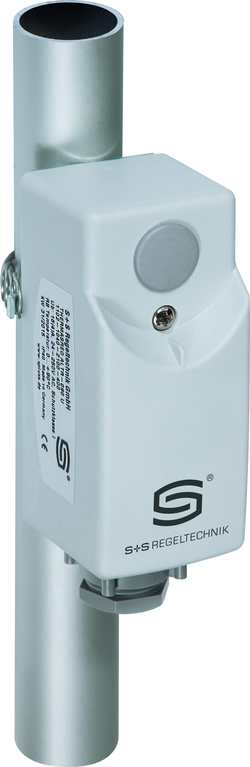

THERMASREG® ALTR-060 U

1102-1040-2100-300
Temperature monitor (internal setting)

0...+60 °C / +32...+140 °F

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA

Switching differential: 8K (± 1K)

Sensor element: Bimetal

Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)

IP40
$39.70

incl. VAT $47.11
°C
THERMASREG® ALTR-090

1102-1040-1100-400
Temperature controller (external setting)

0 ... 90 °C

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA

Switching differential: 8K (± 1K)

Sensor element: Bimetal

Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)

IP40
$39.70

incl. VAT $47.11
°C
THERMASREG® ALTR-090 U

1102-1040-2100-400
Temperature monitor (internal setting)

0 ... 90 °C

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA

Switching differential: 8K (± 1K)

Sensor element: Bimetal

Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)

IP40
$39.70

incl. VAT $47.11
°C
THERMASGARD® TF43 Pt1000A 200mm

1101-7010-6043-000
-30...+150 °C / -22...-302 °F

PT1000A
Installation length: 200mm / 8 in
4-wire connection
IP54
$39.75

incl. VAT $47.16
°C

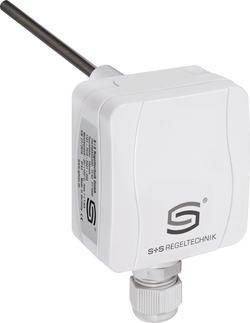

THERMASGARD® RTF1 KTY81-210

1101-40A2-0000-000
Passive

-30...+70 °C / -22...-158 °F

2-wire connection
$39.78

incl. VAT $47.19
°C

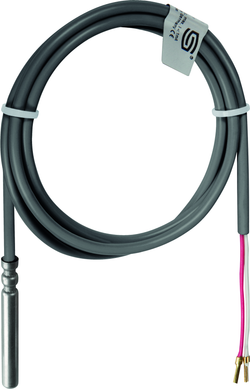

THERMASGARD® HTF50 Ni1000 PVC 10M

1101-6030-9301-110
Installation length: 50 mm / 2 in
Passive
-35...+105 °C / -31...-221 °F
KL = 10 m / 33 ft
LiYY (PVC)
$39.83

incl. VAT $47.24
°C
THERMASGARD® TF43 Ni1000 150mm

1101-7010-9031-000
-30...+150 °C / -22...-302 °F

NI1000
Installation length: 150mm / 6 in
2-wire connection
IP54
$39.83

incl. VAT $47.24
°C
THERMASGARD® TF43 LM235Z 250mm

1101-7012-1051-000
-35...+125 °C / -31...-257 °F

LM235Z
Installation length: 250mm / 10 in
2-wire connection
IP54
$39.91

incl. VAT $47.32
°C
THERMASGARD® TF43 NiTK 150mm

1101-7011-0031-000
-30...+150 °C / -22...-302 °F

NI1000TK
Installation length: 150mm / 6 in
2-wire connection
IP54
$40.01

incl. VAT $47.61
°C
THERMASGARD® HTF50 NiTK PVC 8M

1101-6031-0281-110
Installation length: 50 mm / 2 in
Passive
-35...+105 °C / -31...-221 °F
KL = 8 m / 26 ft
LiYY (PVC)
$40.16

incl. VAT $47.76
°C
THERMASGARD® HTF50 Pt1000 PVC 10M

1101-6030-5301-110
Installation length: 50 mm / 2 in
Passive
-35...+105 °C / -31...-221 °F
KL = 10 m / 33 ft
LiYY (PVC)
$40.39

incl. VAT $47.99

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
