Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

1281 products

°C

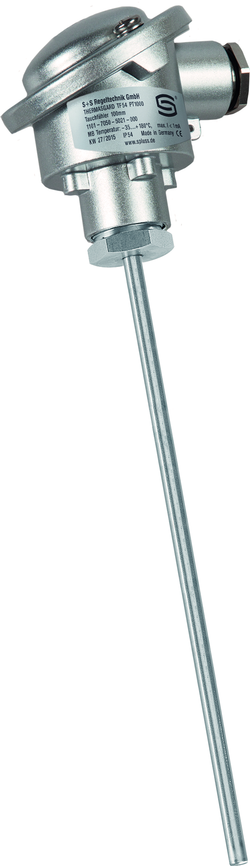

THERMASGARD® TF54 Pt1000 300mm

1101-7050-5061-000
-35...+180 °C
PT1000
Installation length: 300mm
2-wire connection
Output variant: Pressure screw
IP54
$87.98

$104.51
°C
THERMASGARD® TF54 NiTK 250mm

1101-7051-0051-000
-35...+180 °C
NI1000TK5000
Installation length: 250mm
2-wire connection
Output variant: Pressure screw
IP54
$88.23

$104.95
°C
THERMASGARD® TF54 Ni1000 300mm

1101-7050-9061-000
-35...+180 °C
NI1000
Installation length: 300mm
2-wire connection
Output variant: Pressure screw
IP54
$88.23

$104.95
°C
THERMASGARD® RSTF NTC1.8K

1101-40C1-2001-000
passive (2x)
-30...+75 °C
2-wire connection
$88.37

$105.09
°C
THERMASGARD® RSTF NTC10K

1101-40C1-5001-000
passive (2x)
-30...+75 °C
2-wire connection
$88.37

$105.09
°C
THERMASGARD® RSTF NTC20K

1101-40C1-6001-000
passive (2x)
-30...+75 °C
2-wire connection
$88.37

$105.09
°C
THERMASGARD® RTF NiTK P L T

1101-40A1-0663-347
Passive
-30...+70 °C
2-wire connection
Potentiometer, LED displays, presence button
$88.43

$105.15
°C
THERMASGARD® RTM1-SD-I

1101-41D2-0000-200
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4..20mA
IP30
$88.48

$105.20
°C
THERMASGARD® RTM1-SD-U

1101-41D1-0000-200
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
0-10V
IP30
$88.48

$105.20
°C
THERMASGARD® TF54 NiTK 300mm

1101-7051-0061-000
-35...+180 °C
NI1000TK5000
Installation length: 300mm
2-wire connection
Output variant: Pressure screw
IP54
$88.50

$105.22
°C
THERMASREG® ETR-0120 MS/150

1102-2010-1100-510
Temperature controller (external setting)
0 ... +120 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 5K
Installation length: 150 mm
brass
IP65
$88.63

$105.35
°C
THERMASREG® ETR-060 MS/150

1102-2010-1100-310
Temperature controller (external setting)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 150 mm
brass
IP65
$88.63

$105.35
°C
THERMASREG® ETR-090 MS/150

1102-2010-1100-410
Temperature controller (external setting)
0 ... +90 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 150 mm
brass
IP65
$88.63

$105.35
°C
THERMASREG® ETR-1 MS/150

1102-2010-1100-110
Temperature controller (external setting)
-35 ... +35 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 150 mm
brass
IP65
$88.63

$105.35
°C
THERMASREG® ETR-50140 MS/150

1102-2010-1100-610
Temperature controller (external setting)
+50 ... +140 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 5K
Installation length: 150 mm
brass
IP65
$88.63

$105.35
°C
THERMASREG® ETR-060 U MS/150

1102-2010-2100-310
Temperature monitor (internal setting)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 150 mm
brass
IP65
$88.63

$105.35

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
