Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

°C

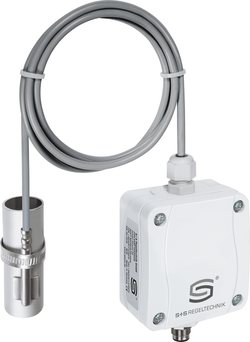

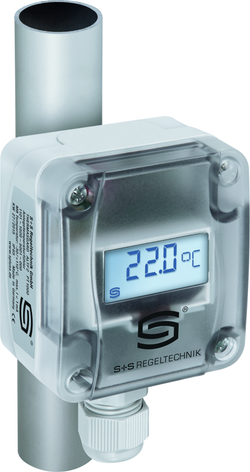

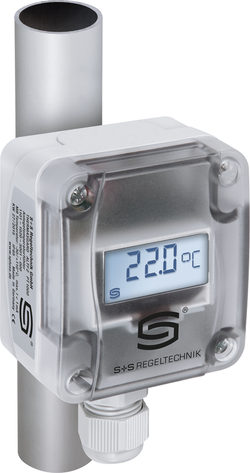

Contact temperature sensor / pipe contact transmitter

THERMASGARD® ALTM2-I LCD
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4..20mA
Cable gland
IP65
$209.26
°C
Contact temperature sensor / pipe contact transmitter

THERMASGARD® ALTM2-U LCD

1101-1121-2219-920
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
0-10V
Cable gland
IP65
$209.26
°C

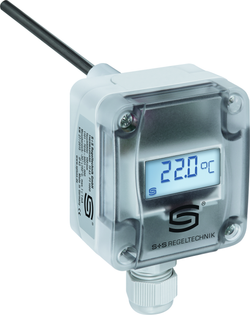

Immersion-/Screw-in duct temperature transmitters

THERMASGARD® TM54-I 200mm

1101-7152-0049-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

installation length: 200 mm

4..20 mA

pressure screw

IP54
$211.46
°C
Immersion/screw-in channel temperature transducer/sensor

THERMASGARD® TM54-U 200mm

1101-7151-0049-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

Mounting length: 200 mm

0-10V

Locking screw

IP54
$211.46
°C
Immersion/Threaded Duct Temperature Transmitter

THERMASGARD® TM54-U 100mm KV

1101-7171-0029-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typical ± 0.2 K at +25 °C
installation depth: 100 mm
0 - 10 V
cable gland
IP65
$211.74
°C
Immersion / Insertion / Screw-in duct temperature transmitter

THERMASGARD® TM54-I 100mm KV

1101-7172-0029-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
Immersion length: 100 mm
4...20 mA
Cable gland
IP65
$211.74
°C
Frost protection thermostat

THERMASREG® FST-7D-HR

1102-1025-1102-000
Temperature limiter (with manual reset)
–10...+15 °C/ +14...+59 °F,
factory setting w = +5 °C (+41 °F)
Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts also
switching of signal voltages < 24 V
Switching differential: 2 ± 1 K (3,6 ± 1,8 °F)
Capillary tube length: 12.0 m
Sensing response length: approx. 40 cm
Sensor: Copper
Permissible medium: Air
IP65
$212.54
°C
Immersion-/ Screw-in duct temperature transducers

THERMASGARD® TM54-I 250mm

1101-7152-0059-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

Immersion lengths: 250 mm

4..20mA

Adjusting screw

IP54
$214.09
°C
Submersible/Threaded/Duct Temperature Transmitter

THERMASGARD® TM54-U 250mm

1101-7151-0059-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

installation length: 250 mm

0-10V

threaded pressure screw

IP54
$214.09
°C
Immersion-/screw-in channel temperature transducer

THERMASGARD® TM65-Modbus-T3 50mm

1101-7236-0010-000
−50...+150 °C
Mounting dimensions: 50 mm
Channel sensor
Modbus
IP65
$214.51
°C
Immersion-/screw-in duct temperature transmitter

THERMASGARD® TM65-Modbus-T3 100mm

1101-7236-0020-000
–50...+150 °C
Mounting depth: 100 mm
Duct immersion
Modbus
IP65
$214.88
°C
Outdoor/Wet-Room Temperature Transmitters

THERMASGARD® ATM2-Modbus-T3

1101-12C6-0000-000
−50...+150 °C
typically ±0.2 K at +25 °C
switchable metric / imperial
Modbus
IP65
$214.96
°C
Immersion-/screw-in channel temperature transmitter

THERMASGARD® TM65-Modbus-T3 150mm

1101-7236-0030-000
50...+150 °C
Installation depth: 150 mm
Duct sensor
Modbus
IP65
$215.16
°C
Duct immersion / screw-in channel temperature transmitter

THERMASGARD® TM65-Modbus-T3 200mm

1101-7236-0040-000
−50...+150 °C
Mounting depth: 200 mm
Channel sensor
Modbus
IP65
$215.45
°C
Immersion/Threaded/Duct Temperature Transmitter

THERMASGARD® TM65-Modbus-T3 250mm

1101-7236-0050-000
–50...+150 °C
Mounting depth: 250 mm
Duct sensor
Modbus
IP65
$215.85
°C
Immersion/Threaded Duct Temperature Transmitter

THERMASGARD® TM54-I 300mm

1101-7152-0069-910
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

Installation length: 300 mm

4..20 mA

Pressure screw

IP54
$216.27

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
