Thermostats
-
°CTHERMASREG® ALTR-060
1102-1040-1100-300
- Temperature controller (external setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
$45.76
-

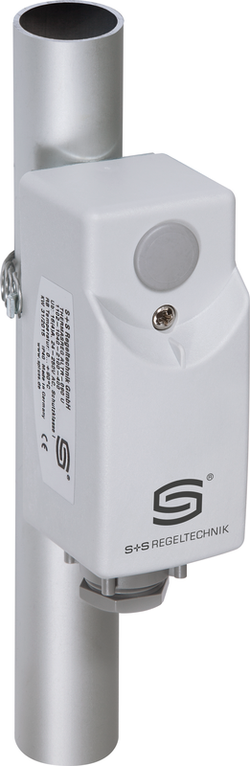

°CTHERMASREG® ALTR-060 U
1102-1040-2100-300
- Temperature monitor (internal setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
$45.76
-
°CTHERMASREG® ALTR-090
1102-1040-1100-400
- Temperature controller (external setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
$45.76
-
°CTHERMASREG® ALTR-090 U
1102-1040-2100-400
- Temperature monitor (internal setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 16 (4) A; 24...250 V ACat 24 V AC min. 150 mA
- Switching differential: 8K (± 1K)
- Sensor element: Bimetal
- Process connection: by means of 220 mm tension spring, made of metal (included in the scope of delivery)
- IP40
$38.54
$45.76
-
°CTHERMASREG® RTR-B 121
1102-4011-2100-000
- Heating, outdoor setting
- Control range: +5...+30 °C / +41...+86 °F
- Switching capacity: 230 V AC, 50 - 60 HzHeating: 10 m / 33 ftA...10 (4) A, DC 30 WCooling: 10 m / 33 ftA...5 (2) A
- Switching differential: approx. 0.5 K
- Sensor element: Bimetal
- Output: Normally closed contact
- IP30
$45.74
$54.29
-
°CTHERMASREG® RTR-B 124
1102-4011-2400-000
- Heating, temperature reduction -5K, outdoor setting
- Control range: +5...+30 °C / +41...+86 °F
- Switching capacity: 230 V AC, 50 - 60 HzHeating: 10 m / 33 ftA...10 (4) A, DC 30 WCooling: 10 m / 33 ftA...5 (2) A
- Switching differential: approx. 0.5 K
- Sensor element: Bimetal
- Output: Normally closed contact
- IP30
$48.35
$57.47
-
°CTHERMASREG® RTR-B 721
1102-4017-2100-000
- Heating / cooling, outdoor setting
- Control range: +5...+30 °C / +41...+86 °F
- Switching capacity: 230 V AC, 50 - 60 HzHeating: 10 m / 33 ftA...10 (4) A, DC 30 WCooling: 10 m / 33 ftA...5 (2) A
- Switching differential: approx. 0.5 K
- Sensor element: Bimetal
- Output: Changeover contact
- IP30
$50.34
$59.84
-
°CTHERMASREG® RTR-B 747
1102-4017-4700-000
- Heating / cooling, indoor setting
- Control range: +5...+30 °C / +41...+86 °F
- Switching capacity: 230 V AC, 50 - 60 HzHeating: 10 m / 33 ftA...10 (4) A, DC 30 WCooling: 10 m / 33 ftA...5 (2) A
- Switching differential: approx. 0.5 K
- Sensor element: Bimetal
- Output: Changeover contact
- IP30
$54.92
$65.18
-
°CTHERMASREG® ETR-0120 MS/100
1102-2010-1100-580
- Temperature controller (external setting)
- 0 ... +120 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 5K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-060 MS/100
1102-2010-1100-380
- Temperature controller (external setting)
- 0 ... +60 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-090 MS/100
1102-2010-1100-480
- Temperature controller (external setting)
- 0 ... +90 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-1 MS/100
1102-2010-1100-180
- Temperature controller (external setting)
- -35 ... +35 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-50140 MS/100
1102-2010-1100-680
- Temperature controller (external setting)
- +50 ... +140 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 5K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-060 U MS/100
1102-2010-2100-380
- Temperature monitor (internal setting)
- 0 ... +60 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-090 U MS/100
1102-2010-2100-480
- Temperature monitor (internal setting)
- 0 ... +90 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Brass
- IP65
$85.73
$101.88
-
°CTHERMASREG® ETR-0120 MS/150
1102-2010-1100-510
- Temperature controller (external setting)
- 0 ... +120 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 5K
- Installation length: 150 mm / 6 in
- Brass
- IP65
$88.63
$105.35
