Duct top-hat rail airflow sensor / airflow monitor RHEASGARD® KHSSF-W

SKU 1701-5118-0102-001 EAN 4 251325 625485 Product group: WG01
In stock , available in 1-3 working days
$410.18
$410.18

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • 0.1...20 m/s
  • Flow velocity
  • AOS - automatic 0 -10 V/ 4...20 mA (linearized), changeover contact (24 V)
  • Power supply: 24 V AC / DC
  • IP 30, sensors IP 20
  • Installation length: 155 mm

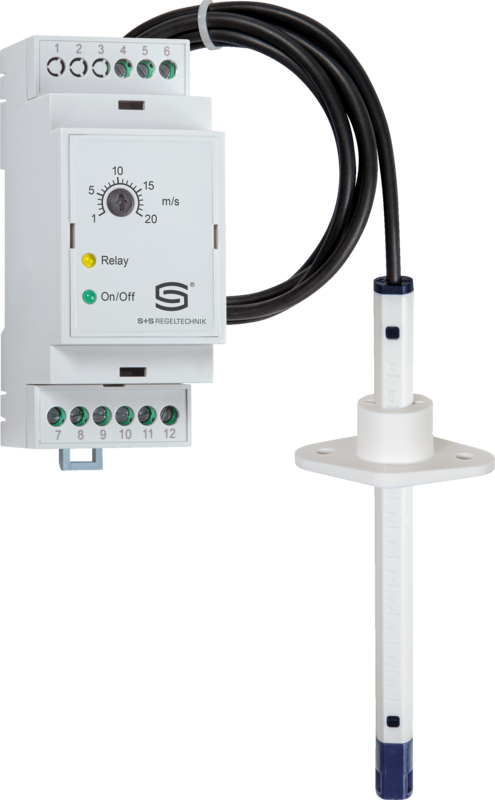

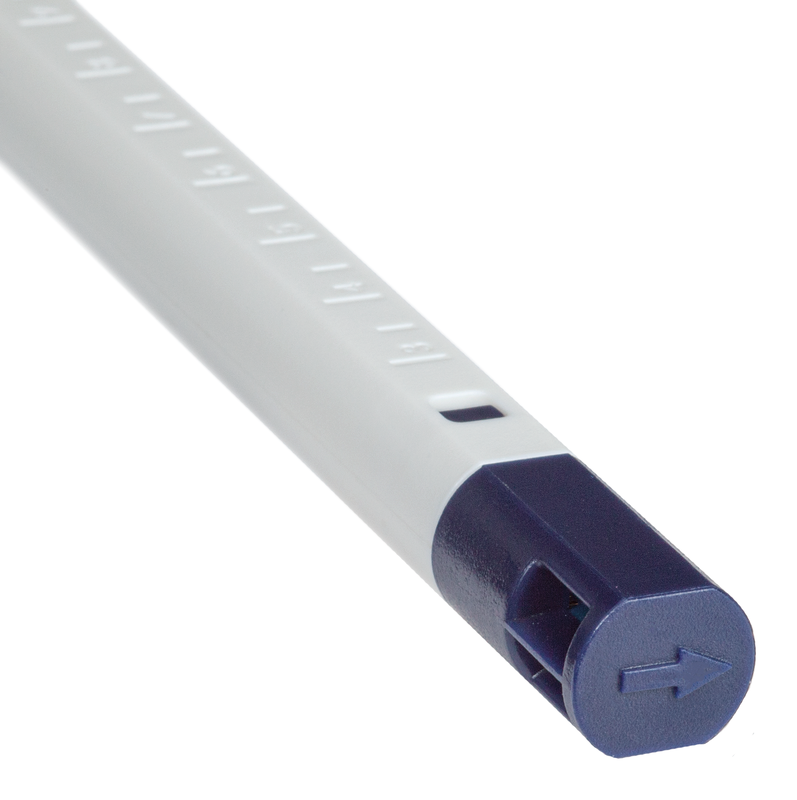

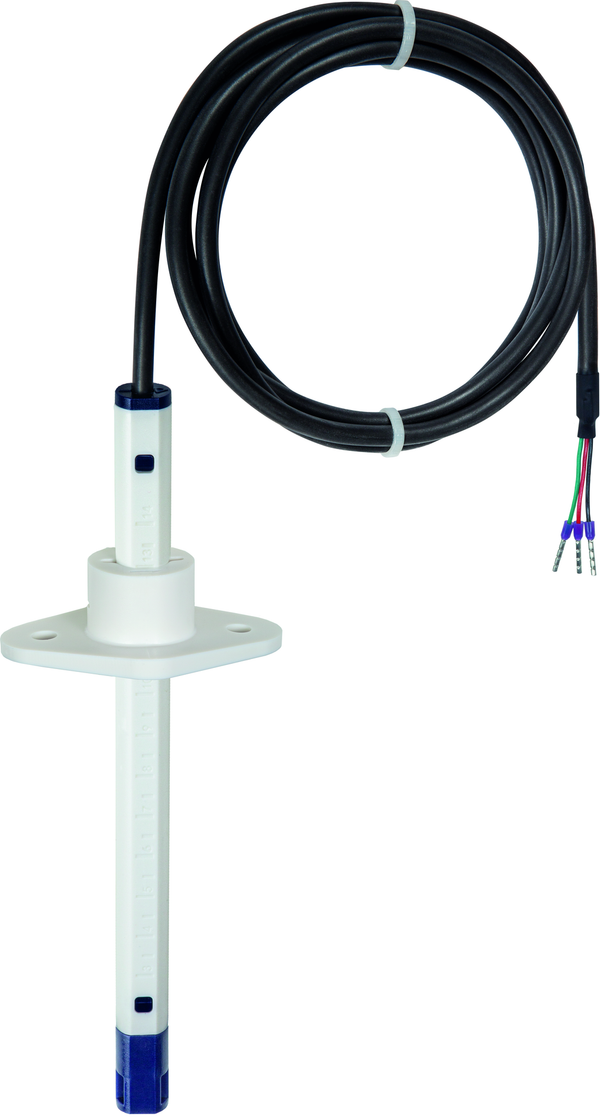

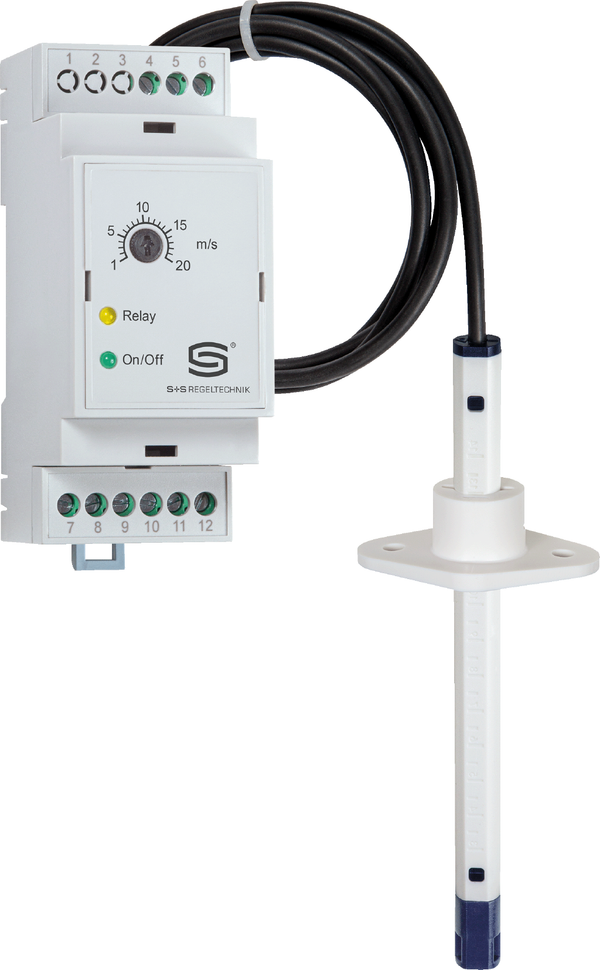

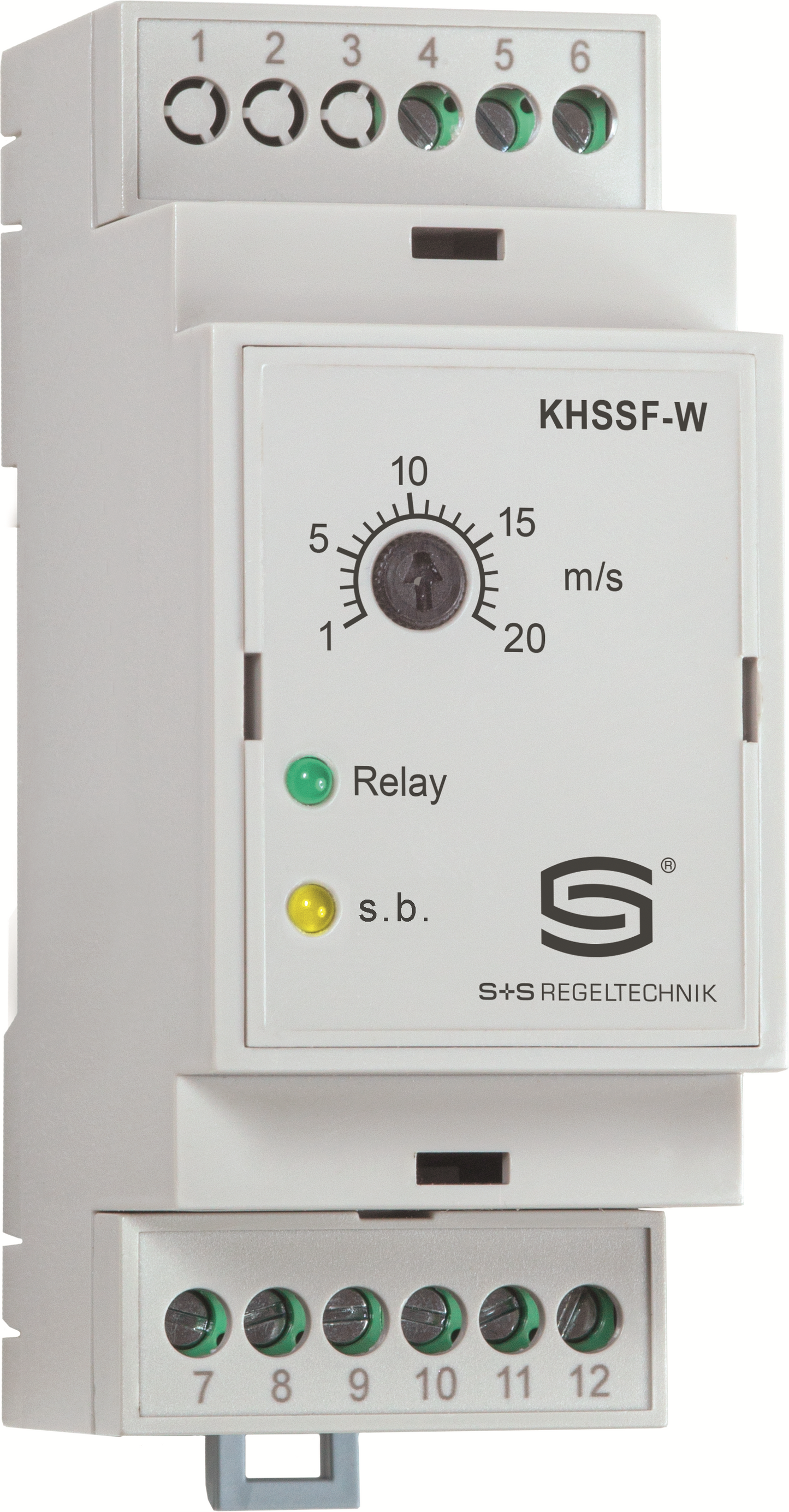

Electronic duct top-hat rail air flow sensor RHEASGARD® KHSSF with active and switching output, housing for installation in distribution boards or control cabinets with 35 mm mounting rail, external flow probe incl. mounting flange, for determining the flow velocity (0.1...20 m/s). The measuring transducer automatically detects the required output type and converts the measured variables into the required standard signal of 0 -10 V or 4...20 mA (Automatic Output Switching/ AOS).
Electronic duct top-hat rail air flow sensor RHEASGARD® KHSSF with active and switching output, housing for installation in distribution boards or control cabinets with 35 mm mounting rail, external flow probe incl. mounting flange, for determining the flow velocity (0.1...20 m/s). The measuring transducer automatically detects the required output type and converts the measured variables into the required standard signal of 0 -10 V or 4...20 mA (Automatic Output Switching/ AOS).
