WS-03
Regular price
$55.78
Regular price
Sale price
$55.78
PM
Product description
- 0...50 / 0...100 / 0...300 / 0...500 μg/m³
- Particulate matter (PM)
- 0 - 10 V
- IP 30

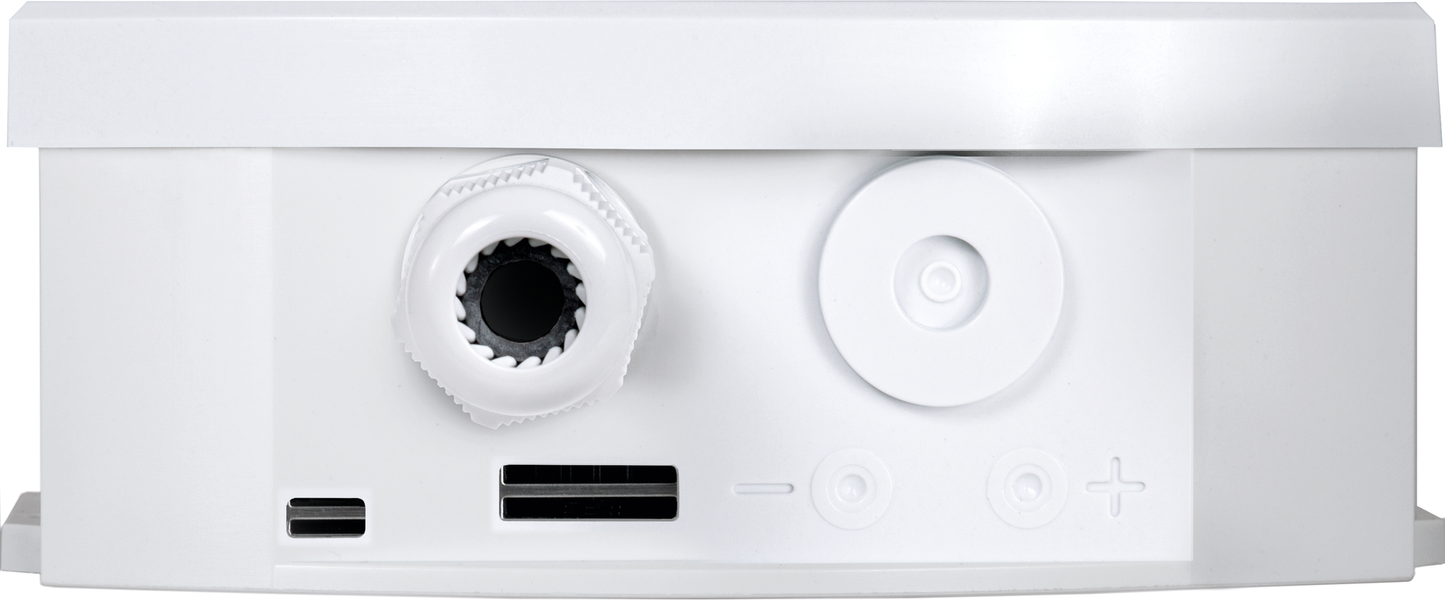

Maintenance-free surface-mounted sensor AERASGARD® APS - SD with active output, in an impact-resistant plastic housing with quick-locking screws, for detecting the fine dust content (0...500 μg /m3). The measuring transducer converts the measured variable into a standard signal of 0-10 V.
The sensor is used in offices, hotels, conference rooms, apartments, stores, etc. and is used to evaluate the indoor climate. This enables energy-saving, needs-based room ventilation and thus a reduction in operating costs and an increase in well-being. We recommend 1 device per 30 m² of room area.
An optical particle sensor precisely detects fine dust (PM) in the size category 0.3 to 10 micrometers. The sensor is calibrated at the factory.
The sensor is used in offices, hotels, conference rooms, apartments, stores, etc. and is used to evaluate the indoor climate. This enables energy-saving, needs-based room ventilation and thus a reduction in operating costs and an increase in well-being. We recommend 1 device per 30 m² of room area.
An optical particle sensor precisely detects fine dust (PM) in the size category 0.3 to 10 micrometers. The sensor is calibrated at the factory.
Technical data
| Measurement | Fine dust (PM) |
| Power supply | 24 V AC/DC (± 10 %) |
| Output | 0–10V |
| Display | No |
| Measuring range | 0...50 / 0...100 / 0...300 / 0...500 µg/m³ |
| Equipment | none |
| Output | 0–10 V (fixed setpoint) |
| Output | 0–10 V |
