WS-01
Regular price
$39.61
Regular price
Sale price
$39.61
°C
Product description
- passive
- −50...+90 °C
- 2-wire connection
- IP65, IP67

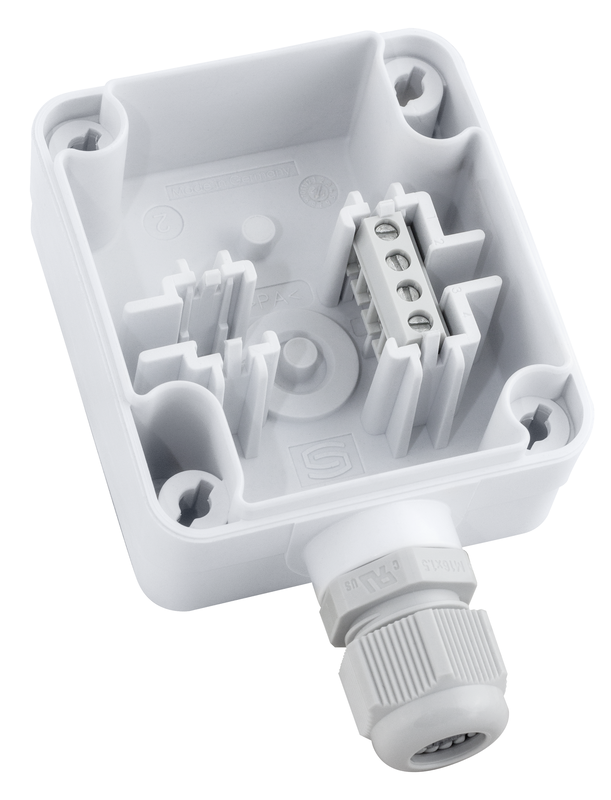

External wall resistance thermometer/ weather sensor THERMASGARD® ATF 1 (internal sensor) with passive output, with housing made of impact-resistant plastic and quick-locking screws. External wall resistance thermometer/ weather sensor THERMASGARD® ATF 01 (internal sensor) with passive output, with housing made of impact-resistant plastic and snap-on cover.
It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.
It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.
Technical data
| Sensor | NTC 1.8K |
| Function type | Measuring temperature |
| Measured variables | Temperature, passive temperature |
| Display | No |
| Protection rating | IP67 |
| Output variant | Cable gland connection |
| Housing | Tyr 1 |
| Measuring range | -50...+90 °C |
