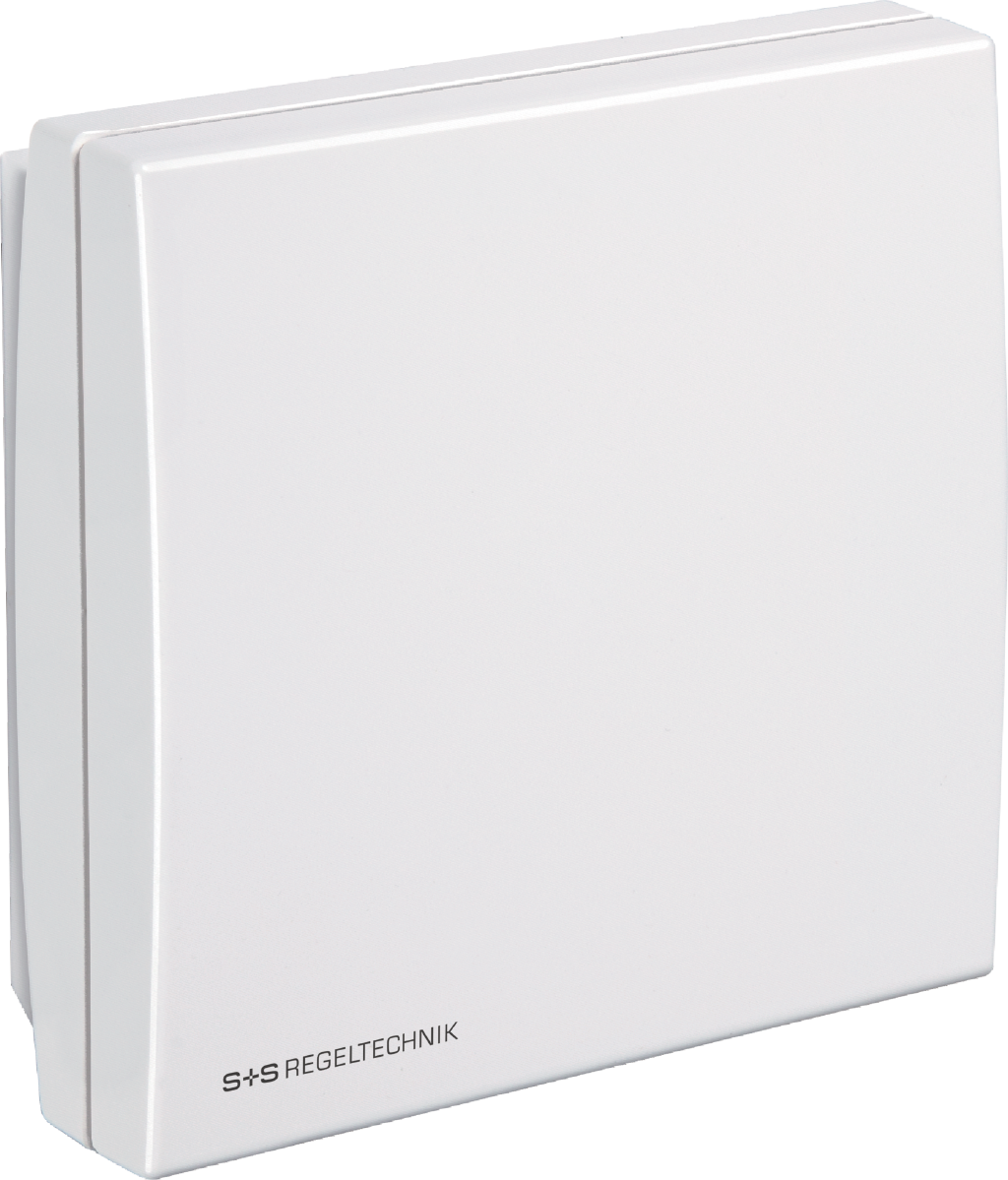

Raum-Hygrothermostat HYGRASREG RHT-30W U - S+S Regeltechnik

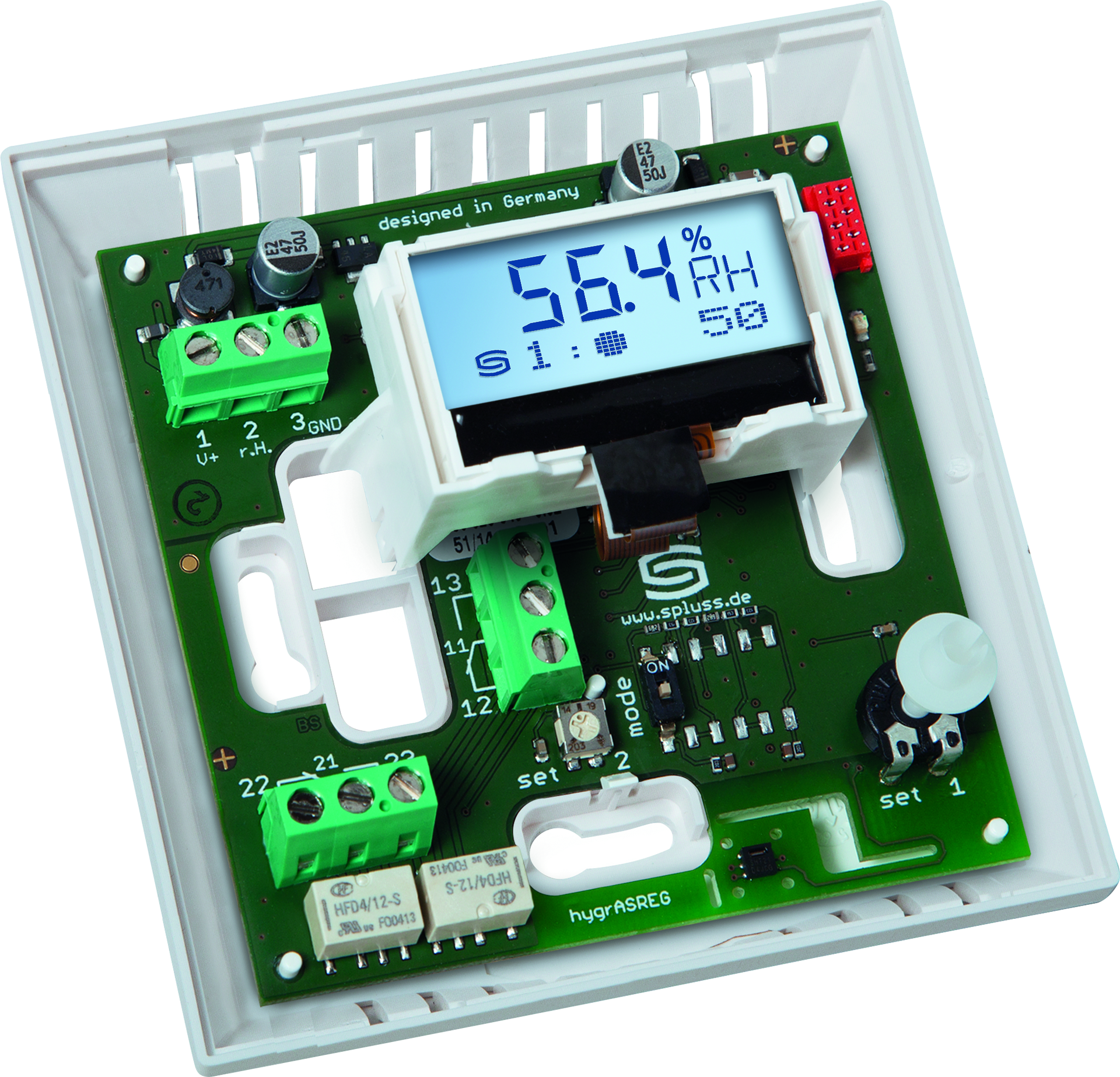

HYGRASREG RHT-30W U, mit geöffneter Abdeckung und sichtbarer Platine - S+S Regeltechnik
HYGRASREG RHT-30W U - S+S Regeltechnik
Room hygrothermostat

HYGRASREG® RHT-30W U

SKU 1202-4077-1021-200 EAN 4251325611761 Product group: WG02
In stock , available in 1-3 working days
Regular price $220.36
Regular price Sale price $220.36

Product description

  • Setting range: 5...95 % RH (humidity)
    +5...+ 45 °C (temperature)
    (switching stages 1 and 2 can be set separately)
  • 0 - 10 V + 2x changeover contact (24 V)
    (adjustable: 1-stage / 2-stage)
  • Internal setting
  • IP30

Electronic room hygrostat and/or room thermostat HYGRASREG® RHT-30 with one continuous and two switching outputs, adjustable switching thresholds, optionally with/without display to indicate the actual humidity and/or actual temperature (accuracy class ± 2.0 % RH). The setpoints can be assigned to the relative humidity and/or temperature.


The device is suitable for controlling and monitoring relative humidity (humidification and dehumidification) and/or temperature (heating and cooling), e.g. in ventilation and air conditioning ducts, laboratories, production rooms, climatic chambers, swimming pools, greenhouses, etc., as well as for controlling humidification and dehumidification equipment or for heating control. The transmitters are designed for the precise measurement of humidity/temperature. The RHT-30 uses a digital, long-term stable sensor as the measuring element. It is used in dust-free, pollutant-free, non-aggressive air.
