MF-16-K
Regular price
$11.92
Regular price
Sale price
$11.92
%RH
Product description
- 0...100 % RH
- Accuracy: ± 1.8 %
- 4..20mA
- IP65

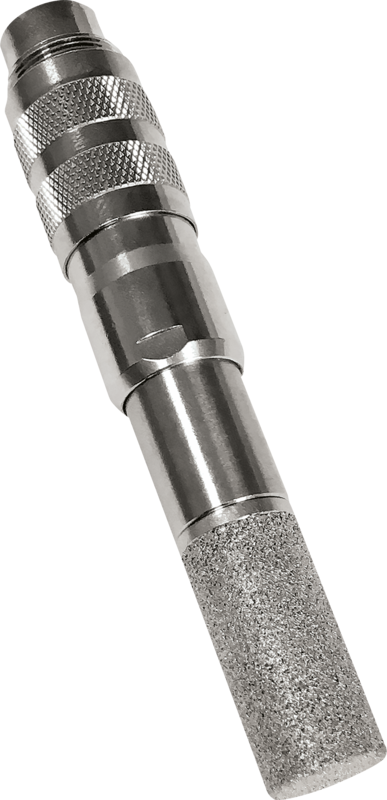

The calibratable room humidity and temperature sensors HYGRASGARD® RPFF - 25 / RPFTF - 25 with plug-in metal sinter filter and housing made of impact-resistant plastic are available with/without display.
They measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. The transmitters have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning and clean room technology, in hotels, technical rooms, assembly and conference facilities. They are designed for the precise measurement of temperature and humidity. A digital, long-term stable sensor is used as the measuring element for humidity and temperature. The sensor is suitable for ceiling and duct mounting or for device installation and is calibrated at the factory. Fine adjustment by a specialist is possible depending on the environment.
They measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. The transmitters have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning and clean room technology, in hotels, technical rooms, assembly and conference facilities. They are designed for the precise measurement of temperature and humidity. A digital, long-term stable sensor is used as the measuring element for humidity and temperature. The sensor is suitable for ceiling and duct mounting or for device installation and is calibrated at the factory. Fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | relative humidity |
| Power supply | 15...36 V DC temperature-dependent; residual ripple stabilized ± 0.3 V |
| Display | No |
| Output variant | cable gland |
| Measurement range additionally to °C + %RH | none |
| Humidity sensor tolerance | 1.8 % |
