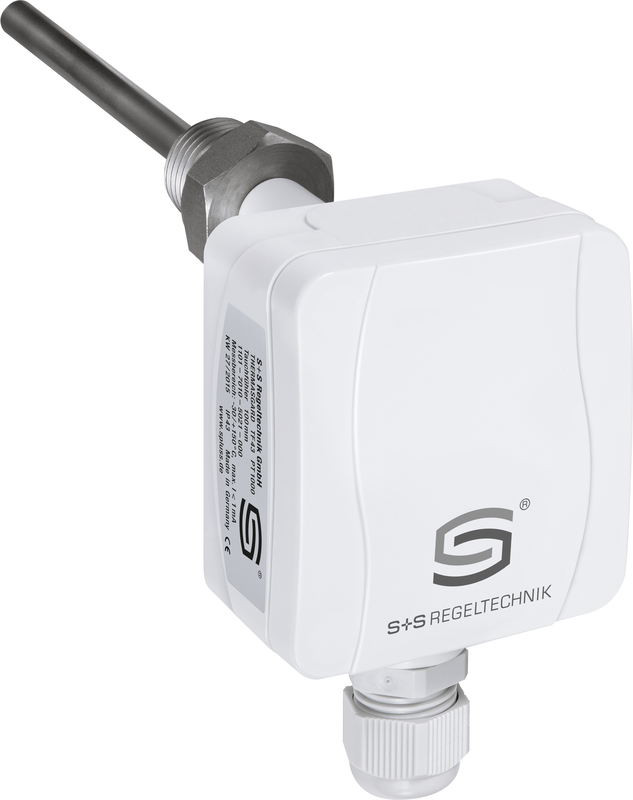

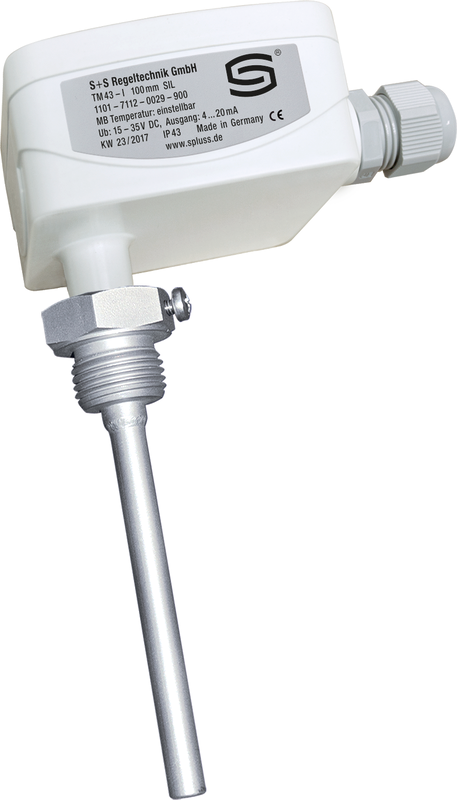

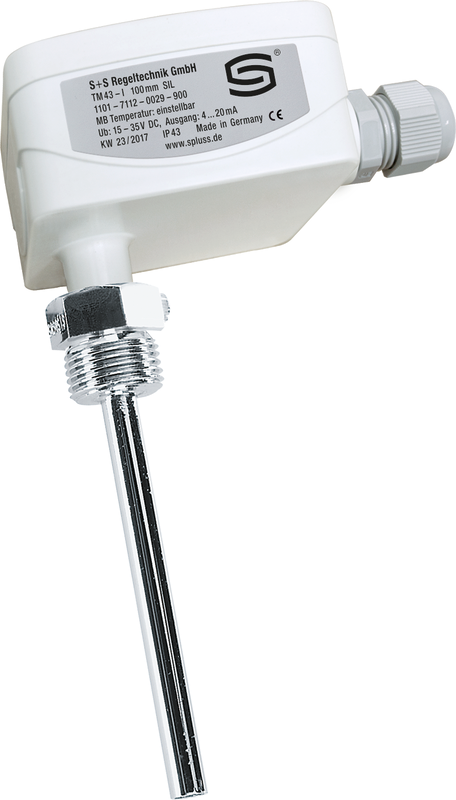

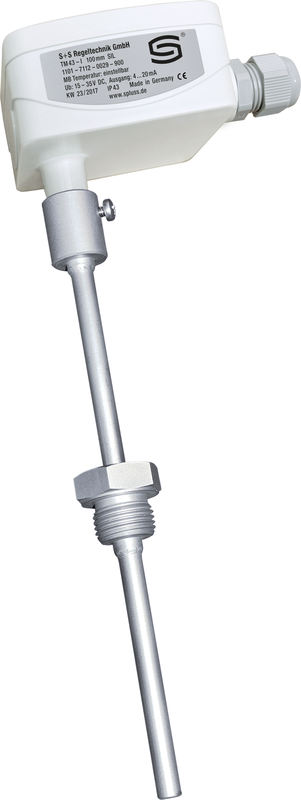

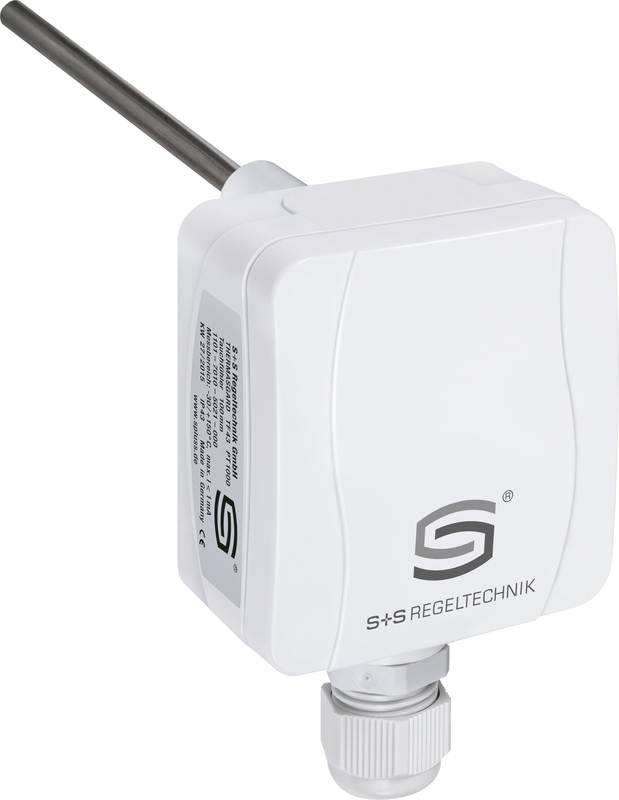

Temperature Transmitters THERMASGARD® TM43-I 100mm

SKU 1101-7112-0029-900 EAN 4 251325 616049 Product group: WG01B
In stock , available in 1-3 working days
Shipping calculated at checkout.
$91.61
$91.61

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • Insertion depth: 100mm
  • – 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
  • 4...20 mA
  • IP54
Patented quality product (immersion sensor patent no. DE 10 2012 017 500.0)

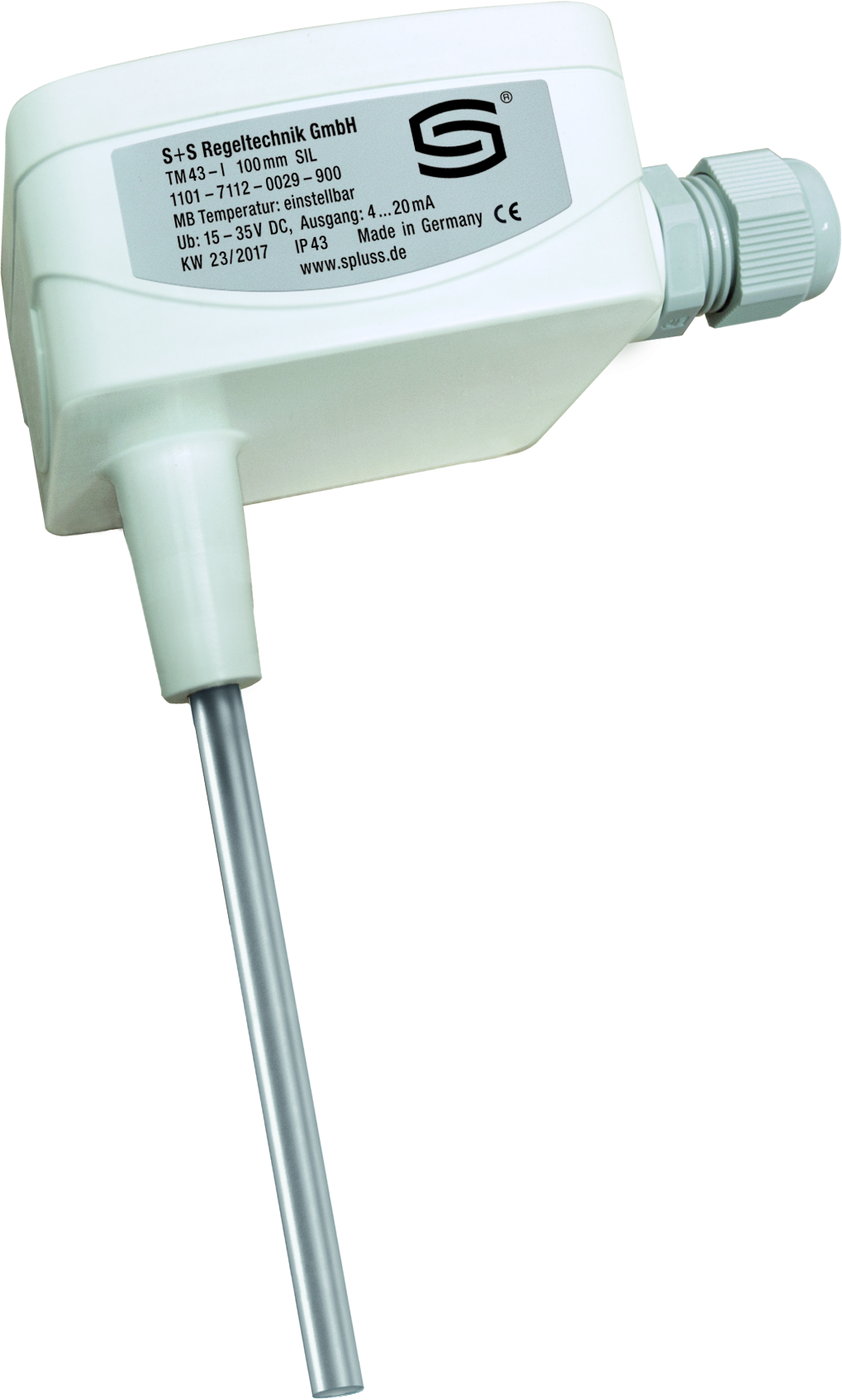

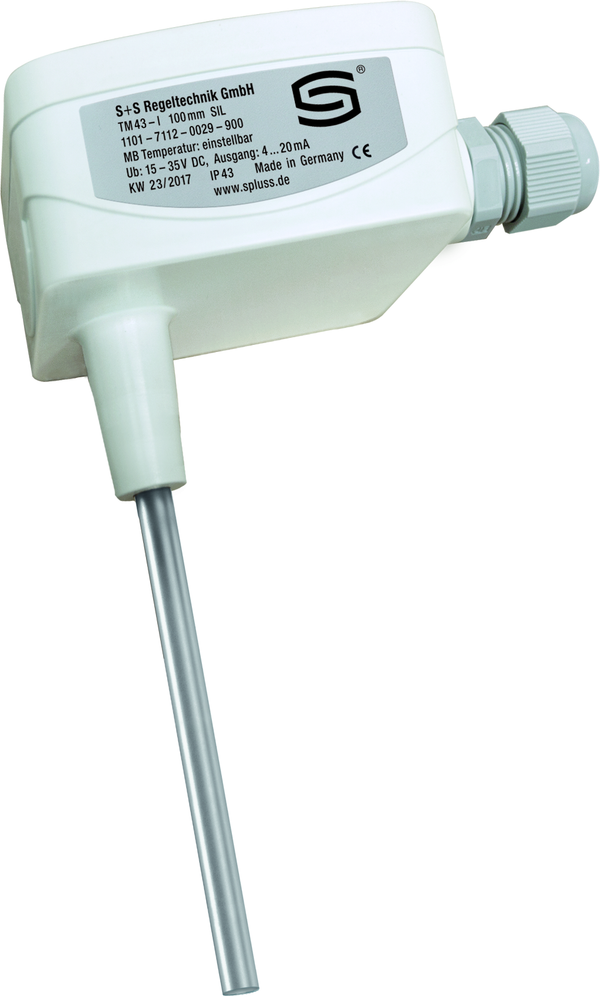

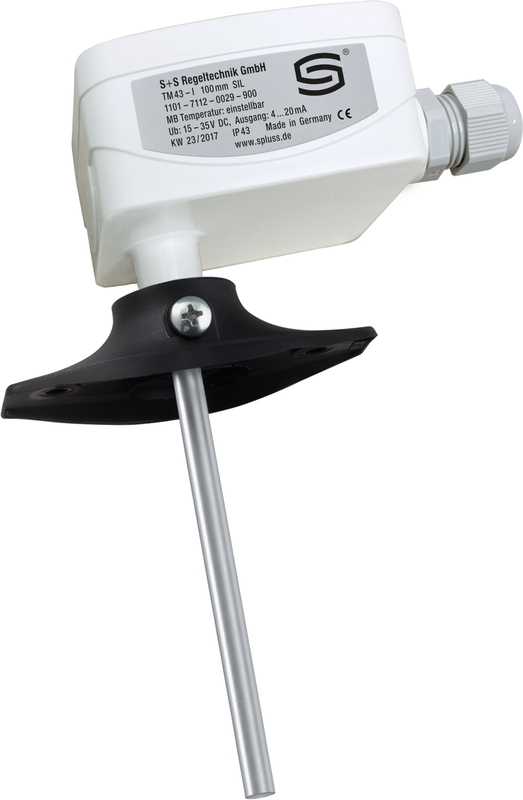

Calibratable temperature measuring transducer THERMASGARD® TM 43 with eight switchable measuring ranges, continuous linear output, straight protection tube, housing made of impact-resistant plastic with snap-on lid.

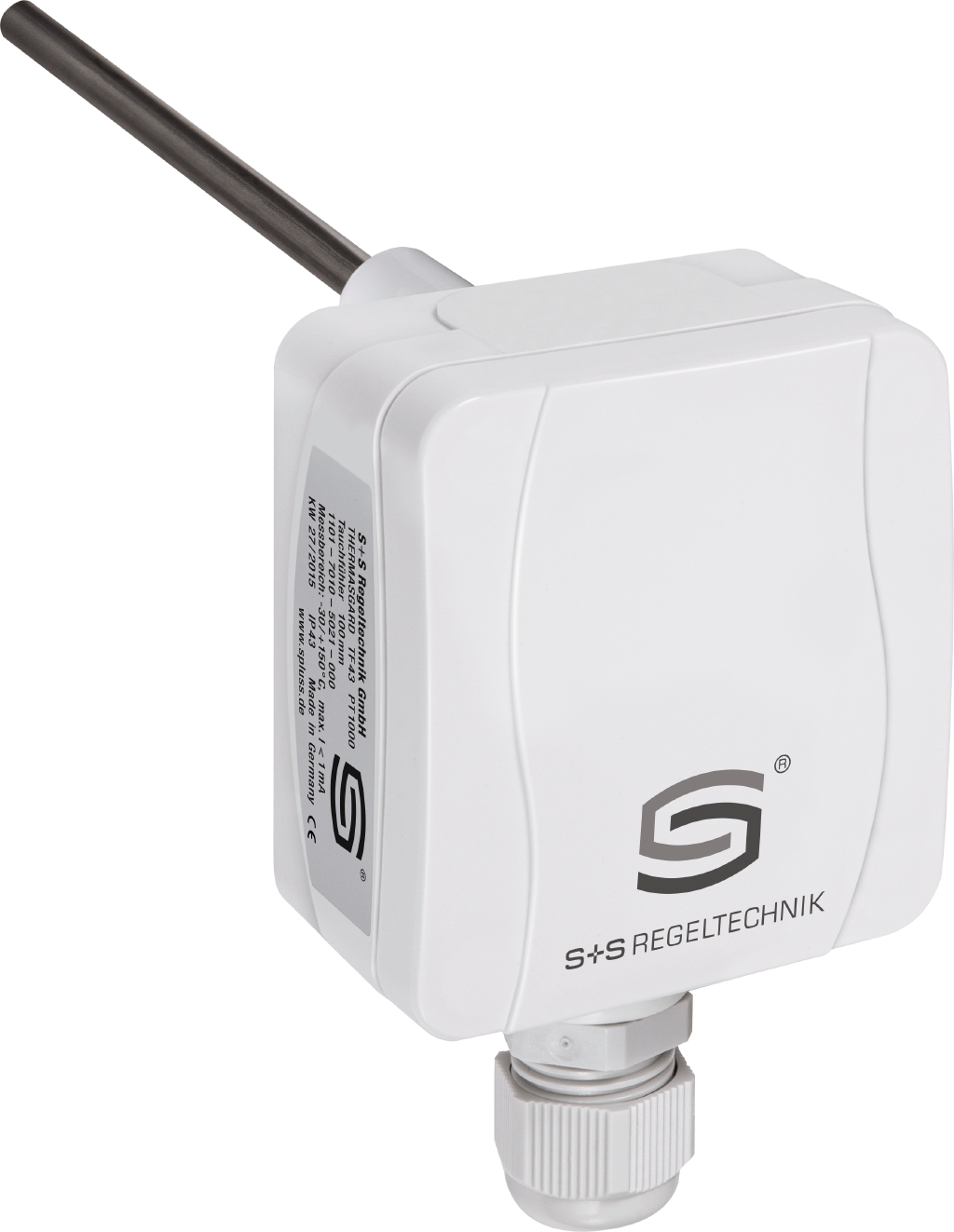

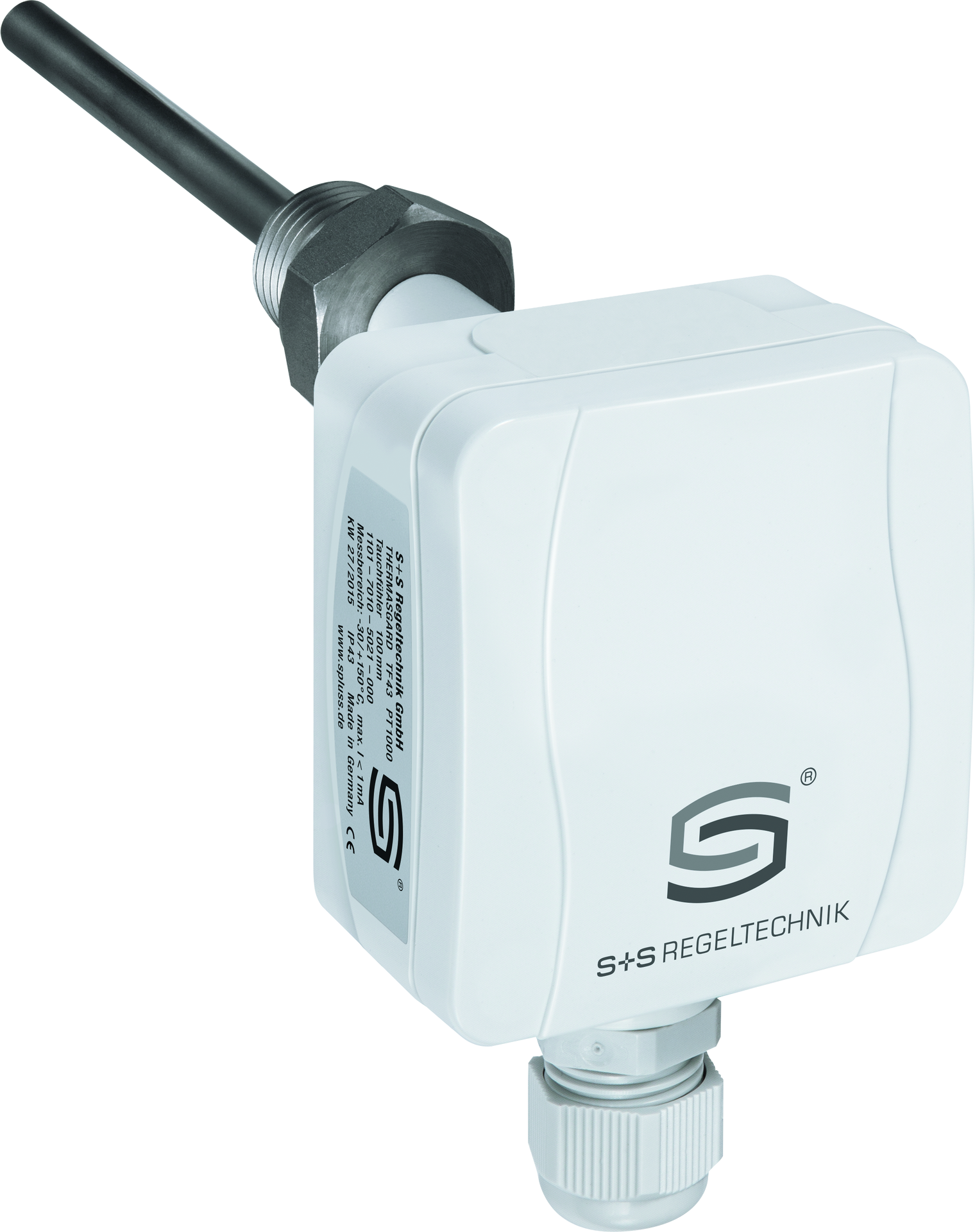

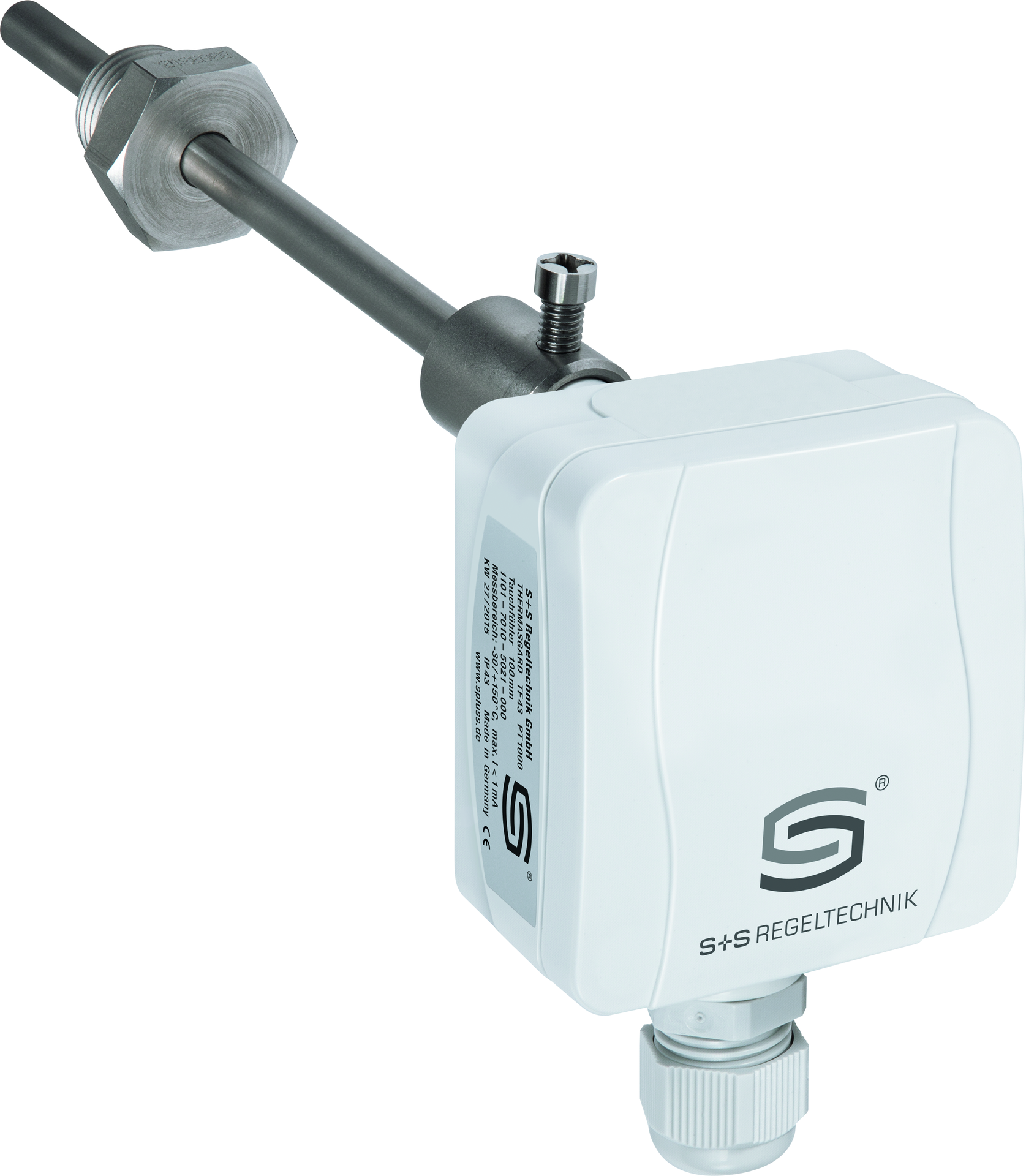

Calibratable temperature measuring transducer THERMASGARD® TM 65 with eight switchable measuring ranges, continuous linear output, straight protection tube, housing made of impact-resistant plastic with quick-release screws, optionally with/without display.

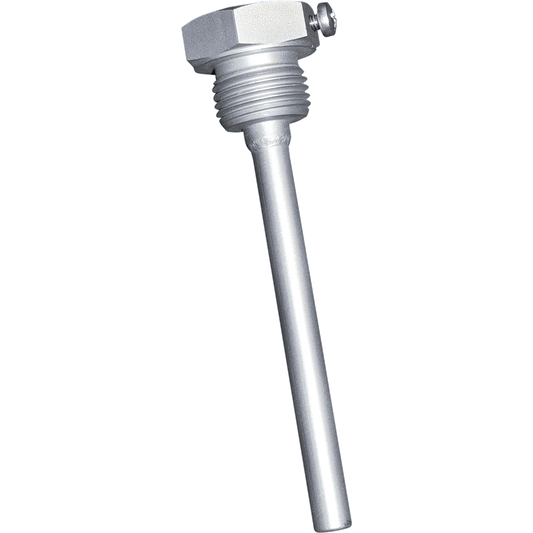

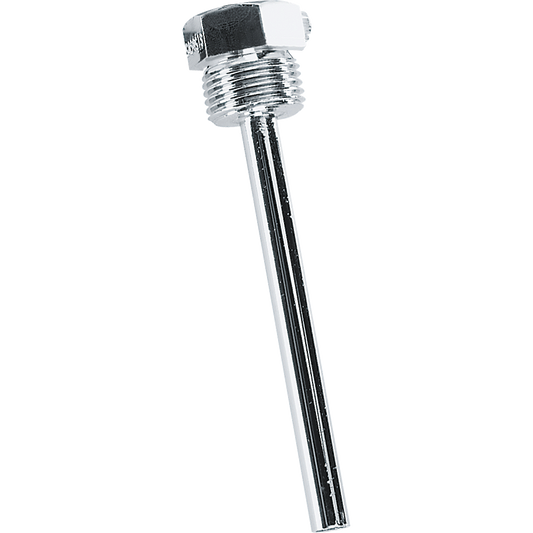

For measuring temperatures in liquid or gaseous media. Stainless steel immersion sleeves must be used for aggressive media (see accessories). It is used in pipelines, in heating technology, ventilation and air conditioning ducts, in storage tanks, district heating compact stations, hot and cold water systems, oil/lubrication circulation systems, in machine, apparatus and plant construction as well as in the entire industrial sector. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment

Technical data

Application / Installation Immersion probe - plastic housing
Measured values temperature
Communication -
Power supply 15...36 V DC
depends on the supply line; residual ripple stabilized ± 0.3 V
Mounting dimensions metric / mm 100 mm
Display no
Protection class IP54
Output variant cable gland connection
Equipment none
Output 4...20 mA
