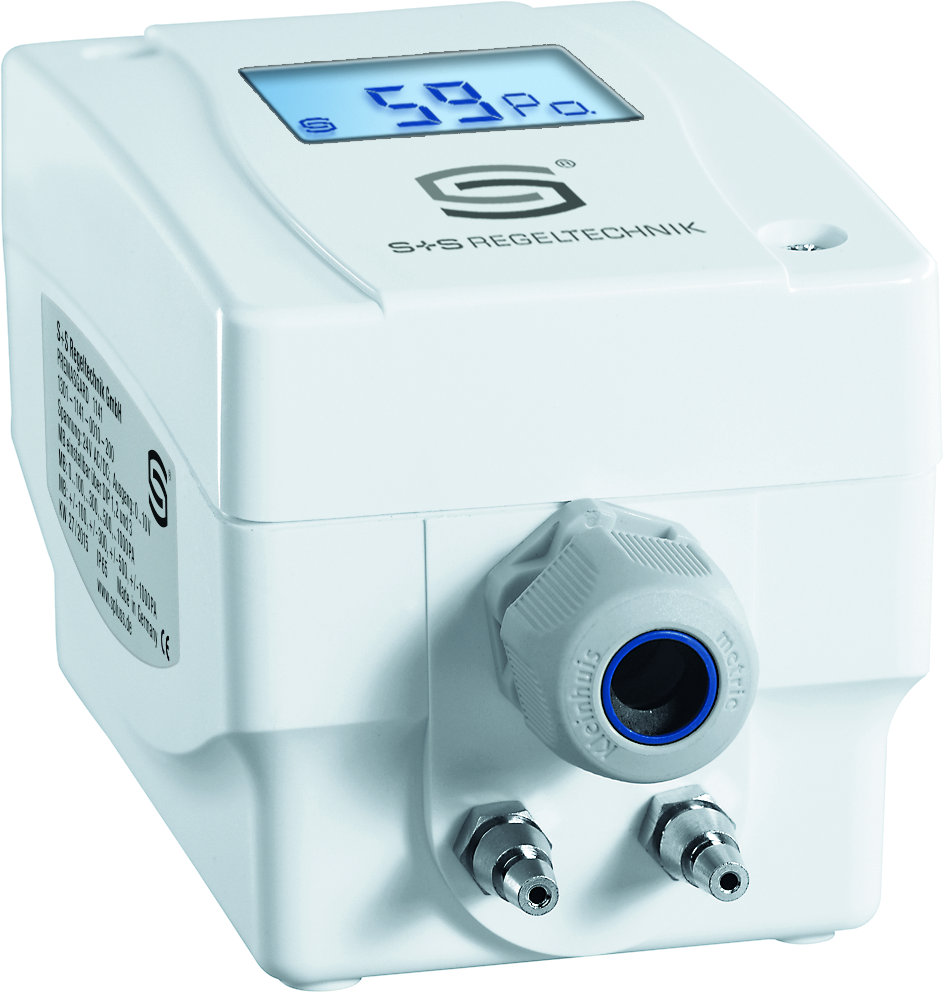

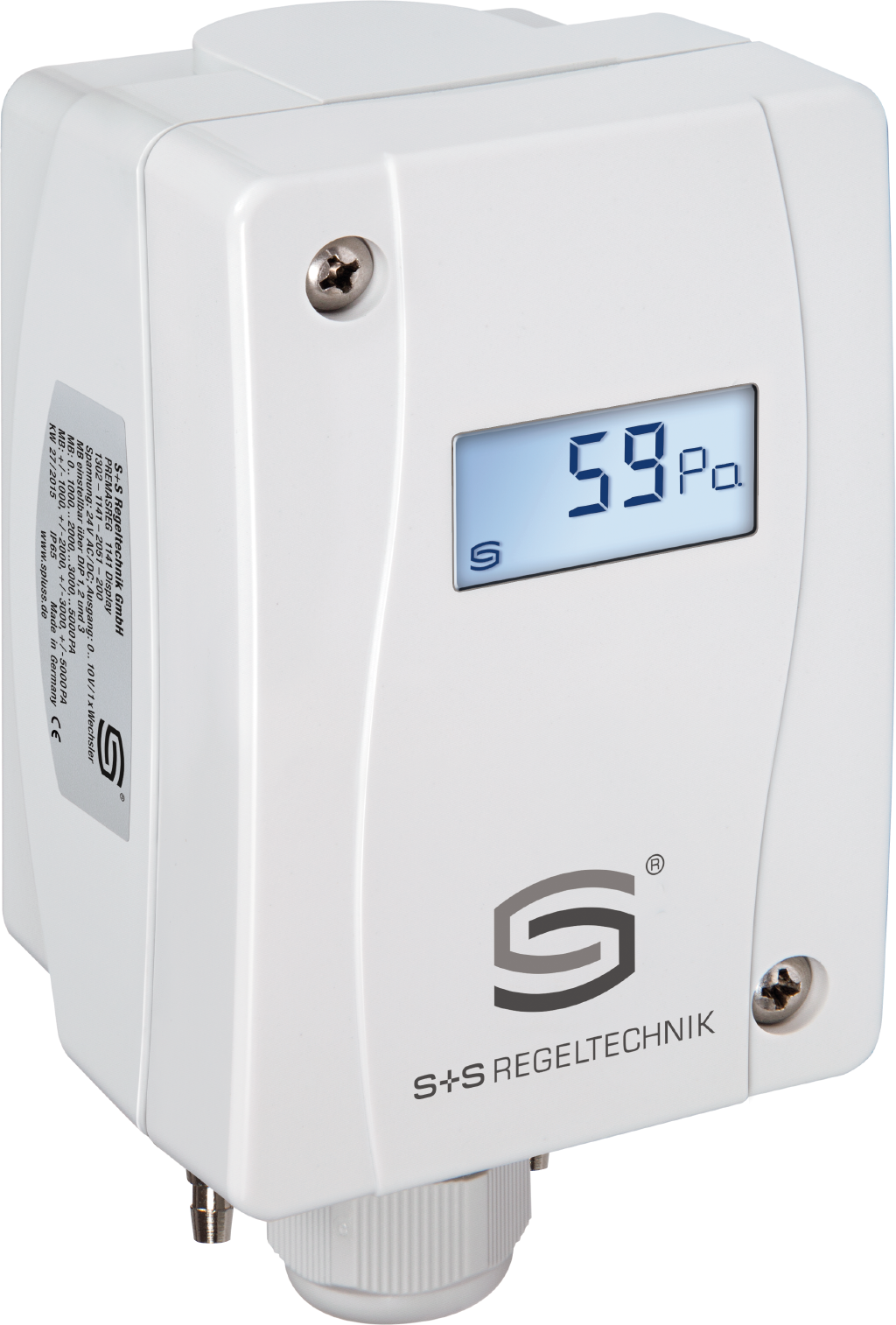

Pressure- and differential pressure transducer / switch, for flow rate indication with display PREMASREG 11D1-U/W LCD

The PREMASREG® 11Dx - I - U ⁄ W electronic pressure sensor and switch is equipped with measuring functions for volume flow,
differential pressure and filter monitoring based on pressure measurement in clean air. The devices contain a switching output, a continuous output
and a backlit display for setting the switching point and displaying the ACTUAL values. The piezoresistive measuring element guarantees
high reliability and accuracy.

The pressure sensor is used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths, in commercial kitchens, for
filter monitoring and fill level measurement, or for controlling frequency converters. The measuring medium is air (non-condensing) or
gaseous non-flammable media. It has a manual zero point button and an offset potentiometer for correcting the final value. A fine adjustment
by the user is possible at any time. The parameters can be conveniently entered via the menu using three buttons on the display

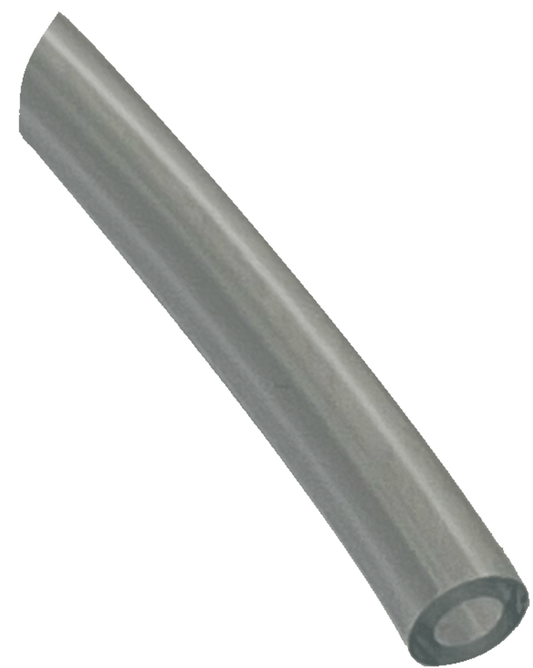

conveniently. The delivery includes the ASD-06 connection set (2 m connection hose, two pressure nipples, screws).
