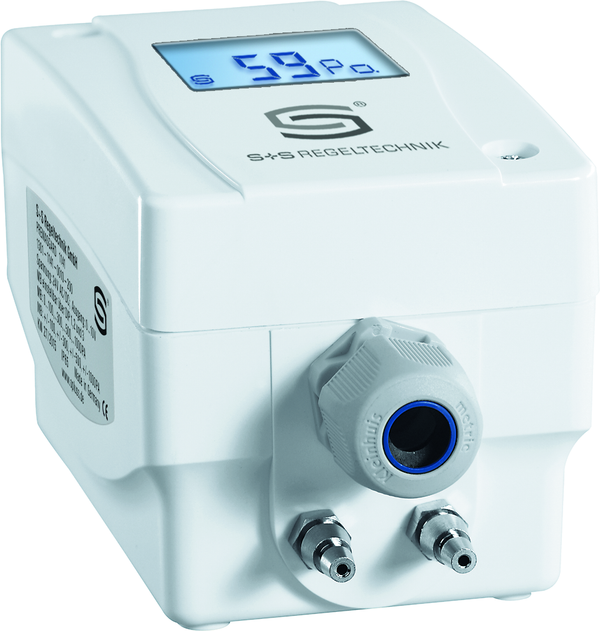

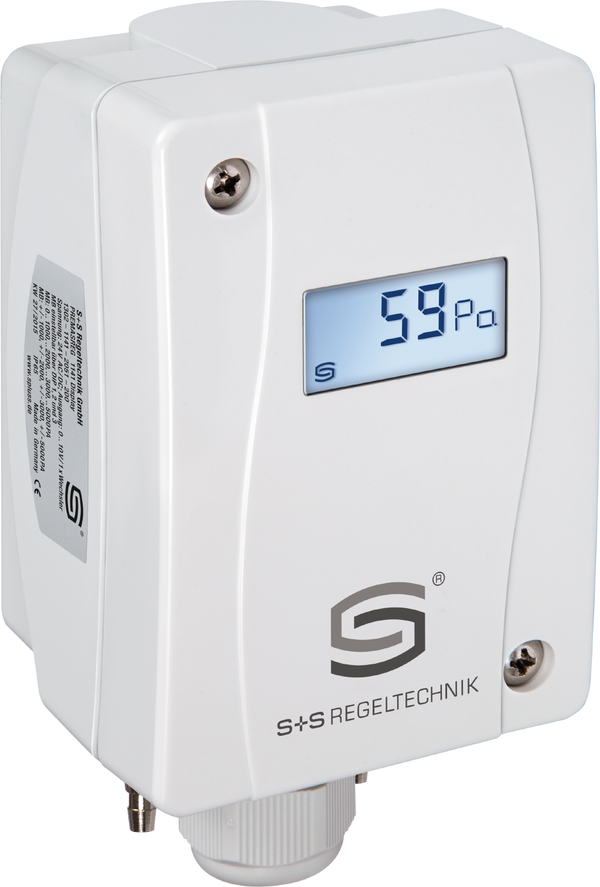

Druck- und Differenzdruckmessumformer / -schalter,zur Volumenstromanzeige mit Display PREMASREG 11D1-I/W LCD, mit LCD-Anzeige - S+S Regeltechnik
PREMASREG 11D1-I/W LCD, Anschlussseite des Geräts - S+S Regeltechnik
Pressure and differential pressure transducer⁄-switch,
for volume flow rate indication with display

PREMASREG 11D1-I/W LCD

SKU 1302-11D8-2181-200 Product group: WG02
In stock , available in 1-3 working days
Regular price $85.20
Regular price $389.36 Sale price $85.20

Product description

  • ± 1000 Pa
  • Measuring accuracy: ± 1.5 %
  • Differential pressure [Pa],
    Volume flow [m3/h]
  • 0-10V, 1 changeover contact (24 V)
  • IP65
The PREMASREG® 11Dx - I - U ⁄ W electronic pressure sensor and switch is equipped with measuring functions for volume flow,
differential pressure and filter monitoring based on pressure measurement in clean air. The devices contain a switching output, a continuous output
and a backlit display for setting the switching point and displaying the ACTUAL values. The piezoresistive measuring element guarantees
high reliability and accuracy.

The pressure sensor is used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths, in commercial kitchens, for
filter monitoring and fill level measurement, or for controlling frequency converters. The measuring medium is air (non-condensing) or
gaseous non-flammable media. It has a manual zero point button and an offset potentiometer for correcting the final value. A fine adjustment
by the user is possible at any time. The parameters can be conveniently entered via the menu using three buttons on the display
conveniently. The delivery includes the ASD-06 connection set (2 m connection hose, two pressure nipples, screws).
