Air pressure

Our pressure sensors for gaseous media support you in monitoring and measuring relative, absolute and differential pressures in ventilation or air conditioning ducts and in measuring atmospheric air pressure or volume flow to ensure the desired flow velocity in the duct.

Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 1111-I LCD

1301-1112-2010-000
±1000Pa
Accuracy: ± 10 Pa
4..20mA
IP67
Adjustable radiated output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 1115-I LCD

1301-1112-2050-000
≤5000 Pa
Accuracy: ± 50 Pa
4..20 mA
IP67
Digitally adjustable output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 1121-I LCD

1301-1172-2010-000
±1000Pa
Accuracy: ± 10 Pa
4..20mA
IP67
Calibratable output signal (radiated)
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 1125-I LCD

1301-1172-2050-000
±15000 Pa
Accuracy: ± 50 Pa
4..20mA
IP67
Adjustable irradiated output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 2111 LCD

1301-1197-2010-000
±1000 Pa
Accuracy: ± 10 Pa
0 -10 V or 4...20 mA (selectable via DIP switch)
IP67
Digitally adjustable output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 2115 LCD

1301-1197-2050-000
±5000 Pa
Accuracy: ± 35 Pa
0 -10 V or 4...20 mA (selectable via DIP switch)
IP67
Radiated (shipped) output signal adjustable
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

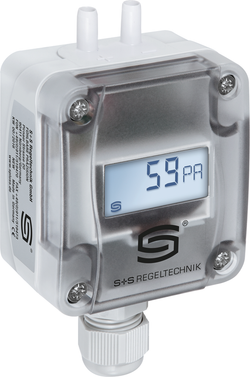

PREMASGARD 2110 LCD

1301-1197-2110-000
±1100 Pa
Accuracy: ± 3 Pa
0 -10 V or 4...20 mA (selectable via DIP switches)
IP67
Adjustable calibrated output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

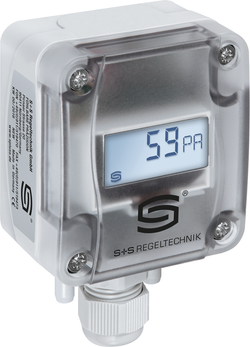

PREMASGARD 2121 LCD

1301-11A7-2010-000
±1000 Pa
Accuracy: ± 10 Pa
0-10V / 4..20mA
IP67
Adjustable irradiated output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 2125 LCD

1301-11A7-2050-000
±5000 Pa
Accuracy: ± 35 Pa
0-10V / 4..20mA
IP67
Adjustable irradiated output signal
$252.77
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 2120 LCD

1301-11A7-2110-000
±1100 Pa
Accuracy: ± 3 Pa
0-10 V / 4..20 mA
IP67
Radiated output signal adjustable
$252.77
Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 2328 Modbus

1301-12C4-0910-200
±1500 Pa
Accuracy: ± 3 Pa
Differential pressure

Modbus
IP65
$252.94
Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 2327

1301-12C4-0950-200
± 7000 Pa
Accuracy: ± 35 Pa
Differential pressure
Modbus
IP65
$252.94
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

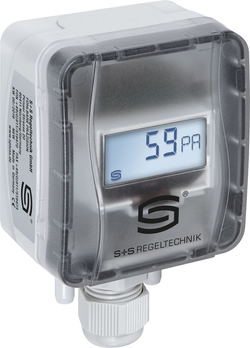

PREMASGARD 2126-SD LCD

1301-11B7-2060-000
±10000 Pa
Accuracy: ±35 Pa
0-10 V / 4..20 mA
IP54
Digitally adjustable irradiated output signal
$256.41
Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 7111-U Q

2004-6131-1100-001
±1000 Pa
Accuracy Pressure: ± 10 Pa
0-10V
M12 plug connector
IP65
$261.84
Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 7111-I Q

2004-6131-2100-001
±1000 Pa
Accuracy Pressure: ± 10 Pa
4..20 mA
M12 plug connector
IP65
$261.84
Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 7115-U Q

2004-6131-1100-011
+5000 Pa
Accuracy Pressure: ± 35 Pa
0-10V
M12 plug connector
IP65
$261.84

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
