Air pressure

Our pressure sensors for gaseous media support you in monitoring and measuring relative, absolute and differential pressures in ventilation or air conditioning ducts and in measuring atmospheric air pressure or volume flow to ensure the desired flow velocity in the duct.

Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 7110-I

1301-7112-0110-100
+1100 Pa
Accuracy Pressure: ± 3 Pa
4..20 mA
IP65
$271.78
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-I 1

1301-2112-0520-120
0... 1 bar

4..20mA

G1/2"

suitable for ammonia and Freon
$275.46
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-I 2.5

1301-2112-0530-120
0...2.5 bar

4...20 mA

G1/2"

suitable for ammonia and Freons
$275.46
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-I 25

1301-2112-0580-120
0...25 bar

4..20mA

G1/2"

suitable for ammonia and freons
$275.46
Pa / bar / inWC
Pressure transmitter

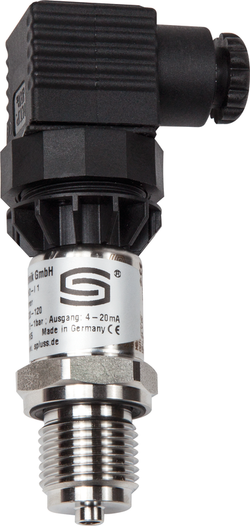

PREMASGARD® SHD-I 40

1301-2112-0590-120
0...40 bar

4..20mA

G1/2"

suitable for ammonia and Freons
$275.46
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-U 1

1301-2111-0520-220
0... 1 bar

0-10V

G1/2"

suitable for ammonia and Freons
$275.46
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-U 2.5

1301-2111-0530-220
0...2.5 bar

0-10V

G1/2"

suitable for ammonia and refrigerants
$275.46
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-U 25

1301-2111-0580-220
0...25 bar

0-10V

G1/2"

suitable for ammonia and refrigerants
$275.46
Pa / bar / inWC
Pressure transmitter

PREMASGARD® SHD-U 40

1301-2111-0590-220
0...40 bar

0-10V

G1/2"

suitable for ammonia and freons
$275.46
Sale

Pa / bar / inWC
Pressure transmitter

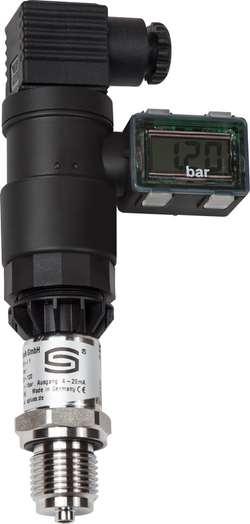

PREMASGARD® SHD-SD-I 6 LCD

1301-2122-1550-000
0...6 bar
4...20 mA
G1/2"
$520.04

$286.04
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

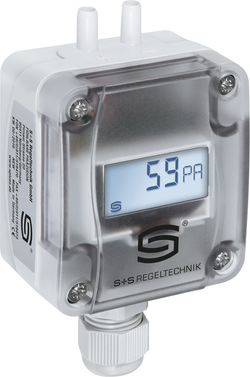

PREMASGARD 2116 LCD

1301-1197-2060-000
±110000 Pa
Accuracy: ± 35 Pa
0 -10 V or 4...20 mA (selectable via DIP switch)
IP67
Digitized output signal adjustable
$286.79
Pa / bar / inWC
Pressure- Differential pressure and volume flow transducers

PREMASGARD 2126 LCD

1301-11A7-2060-000
±10000Pa
Accuracy: ±35 Pa
0-10V / 4..20mA
IP67
Digitized output signal adjustable
$286.79
Pa / bar / inWC
Dual pressure sensor as pressure transmitter and differential pressure transmitter

PREMASGARD 7225

1301-712A-0910-200
2 measuring channels (1/2.): ±500/±500 Pa
Accuracy: ± 13 Pa
AOS - automatic 0 -10 V/ 4...20 mA
IP65 / IP67
$294.16
Pa / bar / inWC
Dual pressure sensor as pressure transmitter and differential pressure transmitter

PREMASGARD 7229

1301-712A-0930-200
2 measuring channels (1/2): ±500/±17000 Pa
Accuracy: ±13 Pa / ±105 Pa
AOS - automatic 0-10 V / 4...20 mA
IP65 / IP67
$294.16
Pa / bar / inWC
Dual pressure sensor as pressure transmitter and differential pressure transmitter

PREMASGARD 7227

1301-712A-0950-200
2 measuring channels (1/2): ±7000/±7000 Pa
Accuracy: ±105 Pa
AOS - automatic 0 -10 V / 4...20 mA
IP65 / IP67
$294.16
Pa / bar / inWC
Pressure- and differential pressure transmitters

PREMASGARD 7111-U LCD

1301-7111-4010-200
±1000 Pa
Accuracy Pressure: ± 10 Pa
0-10V
IP65
$302.84

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
