°C

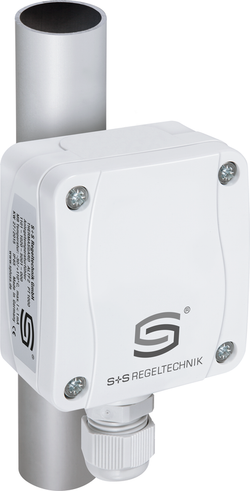

Contact temperature sensor / pipe contact transmitter

THERMASGARD® ALTM1-A

1101-111E-0219-920
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C

typically ± 0.2 K at +25 °C

AOS - automatic 0 -10 V/ 4...20 mA

Cable gland

IP65
$134.89
°C
Contact temperature sensor / pipe contact transmitter

THERMASGARD® ALTM1-I

1101-1112-0219-920
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4...20 mA
Cable gland
IP65
$134.89
°C
Contact temperature sensor / pipe contact transmitter

THERMASGARD® ALTM1-U

1101-1111-0219-920
– 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typical ± 0.2 K at +25 °C
0 - 10 V
Cable gland
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-0120 VA/200

1102-2010-1100-540
Temperature controllers (outdoor setting)
0 ... +120 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 5K
Installation lengths: 200 mm
Stainless steel
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-060 VA/200

1102-2010-1100-340
Temperature controller (outdoor setting)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Mounting depths: 200 mm
Stainless steel
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-090 VA/200

1102-2010-1100-440
Temperature controller (outdoor setting)
0 ... +90 °C
Tmin ± 5 K; Tmax ± 3 K
Switching output (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1,5 A, cos ϕ = 0,6
at 24 V at least 150 mA
Switching differential: 3 K
Mounting depth: 200 mm
Stainless steel
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-1 VA/200

1102-2010-1100-140
Temperature controller (external adjustment)
-35 ... +35 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1,5 A, cos ϕ = 0,6
at 24 V at least 150 mA
Switching differential: 3K
Mounting dimensions: 200 mm
Stainless steel
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-50140 VA/200

1102-2010-1100-640
Temperature controller (Outdoor setting)
+50 ... +140 °C
Tmin ± 5 K; Tmax ± 3 K
Switching output (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
for 24 V at least 150 mA
Switching differential: 5K
Mounting depth: 200 mm
Stainless steel
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-060 U VA/200

1102-2010-2100-340
Temperature monitor (indoor setpoint)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1,5 A, cos ϕ = 0,6
for 24 V at least 150 mA
Switching differential: 3 K
Mounting depth: 200 mm
Stainless steel
IP65
$134.89
°C
Screw-in temperature controller

THERMASREG® ETR-090 U VA/200

1102-2010-2100-440
Temperature controllers (indoor setpoint)
0 ... +90 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1,0
24...250 V AC +10 %, 1,5 A, cos ϕ = 0,6
for 24 V at least 150 mA
Switching differential: 3K
Installation dimensions: 200 mm
Stainless steel
IP65
$134.89
°C
Mean value temperature sensor / rod sensor

THERMASGARD® MWTF-SD Pt1000 6m

1101-3050-5261-200
−30...+80 °C
Temperature [°C]
PT1000
Rod length: 6.0 m
Two-wire connection
IP54
$135.19
% RH
Condensation monitor

HYGRASREG® KW-W-SD

1202-1075-0001-020
Switching point: approx. 93 % RH
Relative humidity [% RH]
Changeover contact
IP 54
$135.62
°C
Screw-in temperature controller

THERMASREG® ETR-R6585 VA/150

1102-2010-6100-730
Safety temperature limiter
+65 ... +85 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
for 24 V at least 150 mA
Switching differential: +0 / -15...20K
Mounting dimensions: 150 mm
Stainless steel
IP65
$135.84
°C
Screw-in temperature controller

THERMASREG® ETR-R90110 VA/150

1102-2010-6100-830
Safety temperature limiter
+90 ... +110 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Mounting depth: 150 mm
Stainless steel
IP65
$135.84
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Pt100 400/80mm KV

1101-20C0-1083-000
– 35...+180 °C
Pt100
Insertion length: 400 mm
4-wire connection
Output version: cable gland
IP65
$136.70

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
