°C

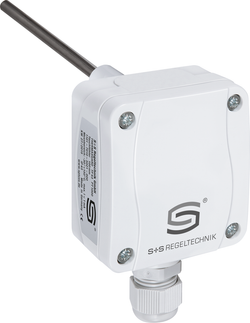

THERMASGARD® TM65-A 150mm
1101-712E-0039-900
- Installation length: 150mm
- - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- Automatic Output Switching: Device automatically recognizes the required output type 0 -10 V or 4...20 mA
- IP65, IP67
$121.87
$144.86
-
°CTHERMASREG® ALTR-1
1102-1030-1100-100
- Temperature controller (external setting)
- -35...+35 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load):
24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.0
24 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6
at 24 V AC min. 150 mA - Switching differential: 5K (± 1K)
- Endless voltage in metal turnbuckle
(included in the scope of delivery) - IP65
$121.87
$144.86
-
°CTHERMASREG® ALTR-3
1102-1030-1100-300
- Temperature controller (external setting)
- 0...+60 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load):
24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.0
24 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6
at 24 V AC min. 150 mA - Switching differential: 5K (± 1K)
- Endless voltage in metal turnbuckle
(included in the scope of delivery) - IP65
$121.87
$144.86
-
°CTHERMASREG® ALTR-5
1102-1030-1100-400
- Temperature controller (external setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load):
24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.0
24 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6
at 24 V AC min. 150 mA - Switching differential: 5K (± 1K)
- Endless voltage in metal turnbuckle
(included in the scope of delivery) - IP65
$121.87
$144.86
-
°CTHERMASREG® ALTR-7
1102-1030-1100-500
- Temperature controller (external setting)
- 0...120 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load):
24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.0
24 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6
at 24 V AC min. 150 mA - Switching differential: 5K (± 1K)
- Endless voltage in metal turnbuckle
(included in the scope of delivery) - IP65
$121.87
$144.86
-
°CTHERMASREG® ETR-0120 VA/150
1102-2010-1100-530
- Temperature controller (external setting)
- 0 ... +120 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA - Switching differential: 5K
- Installation length: 150 mm
- Stainless steel
- IP65
$122.03
$145.21
We also manufacture individually
Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
