Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

1281 products

°C
THERMASGARD® RSTF NTC10K (B=3695K)

1101-40C1-9001-000
passive (2x)
-30...+75 °C / -22...-167 °F
2-wire connection
$102.73

incl. VAT $122.11
°C
THERMASREG® ETR-R6585 MS/100

1102-2010-6100-780
Safety temperature limiter
+65 ... +85 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Installation length: 100 mm / 4 in
Brass
IP65
$103.32

incl. VAT $122.89
°C
THERMASREG® ETR-R90110 MS/100

1102-2010-6100-880
Safety temperature limiter
+90 ... +110 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Installation length: 100 mm / 4 in
Brass
IP65
$103.32

incl. VAT $122.89
°C
THERMASGARD® FSTF KTY81-210 D4 L

1101-5022-0643-352
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
LED displays, rotary switch
$103.51

incl. VAT $123.08
°C
THERMASGARD® ATM2-SD-I

1101-1192-0009-900
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4...20 mA
Cable gland
IP54
$103.62

incl. VAT $123.19
°C
THERMASGARD® ATM2-SD-U

1101-1191-0009-900
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
0 - 10 V
Cable gland
IP54
$103.62

incl. VAT $123.19
°C
THERMASGARD® FSTF NiTK P

1101-5021-0001-162
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer
$103.71

incl. VAT $123.28
°C
THERMASGARD® ETF6 LM235Z 100/80

1101-2072-1021-000
-35...+125 °C / -31...-257 °F
LM235Z
Installation length: 100mm / 4 in
2-wire connection
Output variant: Pressure screw
IP54
$104.03

incl. VAT $123.79
°C
THERMASREG® KTR-1 U

1102-3010-2100-150
Temperature controller (external setting)

-35 ... +35 °C

Tmin ± 5 K; Tmax ± 3 K

Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA

Switching differential: 3 K

Installation length: approx. 205 mm (with flange); approx. 184 mm (without flange)

Thermowell: made of metal, material CuZn37 (2.0321), Ø 14 mm, NL = 205 mm

IP65
$104.93

incl. VAT $124.69
°C
THERMASGARD® ETF6 Pt1000 100/80

1101-2070-5021-000
-35...+180 °C / -31...-356 °F
PT1000
Installation length: 100mm / 4 in
2-wire connection
Output variant: Pressure screw
IP54
$104.94

incl. VAT $124.70
°C
THERMASREG® FST-1D

1102-1021-0102-000
Temperature monitor (automatic switching)
-10...+15 °C/ +14...+59 °F, factory setting w = +5 °C (+41 °F) / +14...+59 °F
Switching capacity:10 (2) A, AC 250 V; also switches signal voltages due to the gold-plated contacts < 24 V
Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
Capillary tube length: 6.0 m
Sensor response length: approx. 40 cm
Sensor: Copper
Permissible medium: Air
IP65
$105.49

incl. VAT $125.44
°C
THERMASREG® ETR-R6585 MS/150

1102-2010-6100-710
Safety temperature limiter
+65 ... +85 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Installation length: 150 mm / 6 in
Brass
IP65
$106.19

incl. VAT $126.33
°C
THERMASREG® ETR-R90110 MS/150

1102-2010-6100-810
Safety temperature limiter
+90 ... +110 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Installation length: 150 mm / 6 in
Brass
IP65
$106.19

incl. VAT $126.33
°C
THERMASREG® FST-3D

1102-1023-0102-000
Temperature monitor (automatic switching)
-10...+15 °C/ +14...+59 °F, factory setting w = +5 °C (+41 °F) / +14...+59 °F
Switching capacity:10 (2) A, AC 250 V; also switches signal voltages due to the gold-plated contacts < 24 V
Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
Capillary tube length: 1.8 m / 26 ft
Sensor response length: approx. 40 cm
Sensor: Copper
Permitted medium: air / water
IP65
$107.63

incl. VAT $127.96
°C
THERMASGARD® ETF6 Pt100 150/80

1101-2070-1033-000
-35...+180 °C / -31...-356 °F
PT100
Installation length: 150mm / 6 in
4-wire connection
Output variant: Pressure screw
IP54
$107.87

incl. VAT $128.20
°C

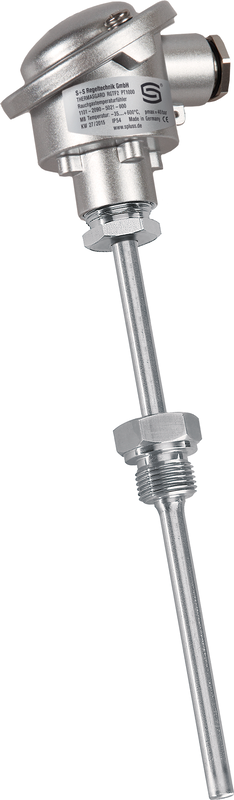

THERMASGARD® ETF6 LM235Z 150/80

1101-2072-1031-000
-35...+125 °C / -31...-257 °F
LM235Z
Installation length: 150mm / 6 in
2-wire connection
Output variant: Pressure screw
IP54
$108.63

incl. VAT $129.15

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
