Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

°C
Duct temperature controller

THERMASREG® KTR-R90110

1102-3010-6100-850
Safety temperature limiter

+90 ... +110 °C

Tmin ± 5 K; Tmax ± 3 K

Switching capacity (contact rating):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA

Switching differential: +0/ –15...20 K

Insertion lengths:
approx. 205 mm (with flange);
approx. 184 mm (without flange)

Protection tube:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm

IP65
$116.47
°C

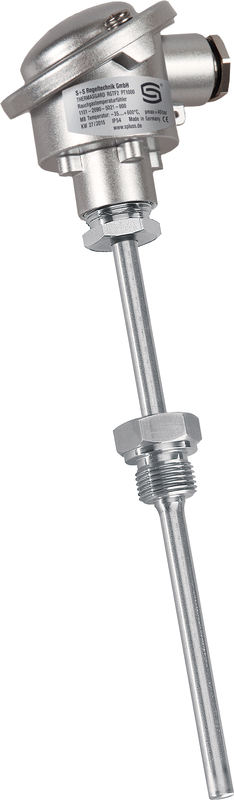

Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NTC1.8K 150/80

1101-2071-2031-000
–35...+150 °C
NTC 1,8K
Insertion length: 150 mm
2-wire connection
Output version: Compression screw
IP54
$117.47
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NTC10K 150/80

1101-2071-5031-000
–35...+150 °C
NTC 10K
Immersion length: 150 mm
2-wire connection
Output version: compression screw
IP54
$117.47
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NTC20K 150/80

1101-2071-6031-000
–35...+150 °C
NTC 20K
Immersion length: 150mm
2-wire connection
Output version: compression screw
IP54
$117.47
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Ni1000 150/80

1101-2070-9031-000
−35...+180 °C
NI1000
Installation length: 150 mm
2-wire connection
Output version: compression screw
IP54
$117.60
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Pt1000 150/80

1101-2070-5031-000
−35...+180 °C
PT1000
Insertion length: 150 mm
2-wire connection
Output variant: compression screw
IP54
$117.70
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Pt100 200/80

1101-2070-1043-000
…35…+180 °C
PT100
Insertion length: 200 mm
4-wire connection
Output variant: compression screw
IP54
$117.70
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 LM235Z 200/80

1101-2072-1041-000
–35...+125 °C
LM235Z
Immersion length: 200 mm
2-wire connection
Output version: compression screw
IP54
$117.70
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NiTK 150/80

1101-2071-0031-000
–35...+180 °C
NI1000TK5000
Mounting depth: 150mm
Two-wire connection
Output variant: Compression screw
IP54
$118.81
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NTC1.8K 200/80

1101-2071-2041-000
–35...+150 °C
NTC 1.8K
Insertion length: 200mm
2-wire connection
Output variant: Compression screw
IP54
$119.26
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NTC10K 200/80

1101-2071-5041-000
–35...+150 °C
NTC 10K
Insertion length: 200 mm
Two-wire connection
Output version: Compression screw
IP54
$119.26
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 NTC20K 200/80

1101-2071-6041-000
–35...+150 °C
NTC 20K
Insertion depth: 200 mm
2-wire connection
Output variant: pressure screw
IP54
$119.26
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 LM235Z 250/80

1101-2072-1051-000
–35...+125 °C
LM235Z
Mounting depth: 250 mm
2-wire connection
Output version: compression screw
IP54
$119.36
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Pt1000 200/80

1101-2070-5041-000
−35...+180 °C
PT1000
Immersion length: 200 mm
2-wire connection
Output variant: compression screw
IP54
$119.57
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Ni1000 200/80

1101-2070-9041-000
…35 to +180 °C
NI1000
Mounting depth: 200 mm
2-wire connection
Output variant: compression fitting
IP54
$120.79
°C
Screw-in sensor - Immersion temperature sensor

THERMASGARD® ETF6 Pt100 250/80

1101-2070-1053-000
−35...+180 °C
PT100
Insertion depth: 250 mm
4-wire connection
Output variant: compression screw
IP54
$120.81

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
