Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

1281 products

°C
THERMASREG® ETR-R6585 MS/200

1102-2010-6100-720
Safety temperature limiter
+65 ... +85 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Installation length: 200 mm
brass
IP65
$115.88

$137.73
°C
THERMASREG® ETR-R90110 MS/200

1102-2010-6100-820
Safety temperature limiter
+90 ... +110 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: +0 / -15...20K
Installation length: 200 mm
brass
IP65
$115.88

$137.73
°C
THERMASGARD® ETF6 Pt1000 100/80mm KV

1101-20C0-5021-000
-35...+180 °C
Pt1000
Installation length: 100mm
2-wire connection
Output variant: Cable gland
IP65
$116.36

$138.40
°C
THERMASGARD® ETF6 NTC1.8K 250/80

1101-2071-2051-000
-35...+150 °C
NTC 1.8K
Installation length: 250mm
2-wire connection
Output variant: Pressure screw
IP54
$117.26

$139.49
°C
THERMASGARD® ETF6 NTC10K 250/80

1101-2071-5051-000
-35...+150 °C
NTC 10K
Installation length: 250mm
2-wire connection
Output variant: Pressure screw
IP54
$117.26

$139.49
°C

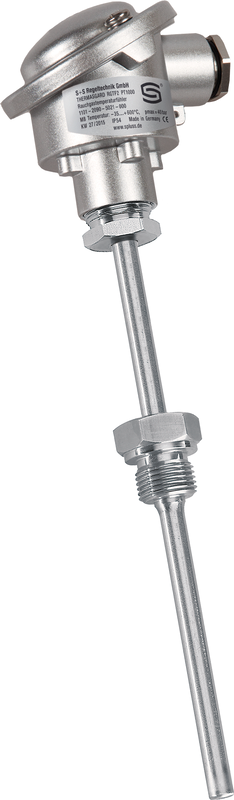

THERMASGARD® ETF6 NTC20K 250/80

1101-2071-6051-000
-35...+150 °C
NTC 20K
Installation length: 250mm
2-wire connection
Output variant: Pressure screw
IP54
$117.26

$139.49
°C
THERMASGARD® ETF6 Pt100 400/80

1101-2070-1083-000
-35...+180 °C
PT100
Installation length: 400mm
4-wire connection
Output variant: Pressure screw
IP54
$117.44

$139.67
°C
THERMASREG® FST-8D-HR

1102-1024-1102-000
Temperature limiter (with manual reset)
-10...+15 °C/ +14...+59 °F,
Factory setting w = +5 °C (+41 °F)
Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts also
switching of signal voltages < 24 V
Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
Capillary tube length: 0.6 m
Sensor response length: approx. 40 cm
Sensor: copper
Permissible medium: Air
IP65
$118.34

$140.76
°C
THERMASGARD® ETF6 NiTK 250/80

1101-2071-0051-000
-35...+180 °C
NI1000TK5000
Installation length: 250mm
2-wire connection
Output variant: Pressure screw
IP54
$118.41

$140.83
°C
THERMASGARD® ETF6 Pt1000 400/80

1101-2070-5081-000
-35...+180 °C
PT1000
Installation length: 400mm
2-wire connection
Output variant: Pressure screw
IP54
$118.57

$140.99
°C
THERMASREG® ETR-0120 VA/100

1102-2010-1100-590
Temperature controller (external setting)
0 ... +120 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 5K
Installation length: 100 mm
Stainless steel
IP65
$119.18

$141.79
°C
THERMASREG® ETR-060 VA/100

1102-2010-1100-390
Temperature controller (external setting)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 100 mm
Stainless steel
IP65
$119.18

$141.79
°C
THERMASREG® ETR-090 VA/100

1102-2010-1100-490
Temperature controller (external setting)
0 ... +90 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 100 mm
Stainless steel
IP65
$119.18

$141.79
°C
THERMASREG® ETR-1 VA/100

1102-2010-1100-190
Temperature controller (external setting)
-35 ... +35 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 100 mm
Stainless steel
IP65
$119.18

$141.79
°C
THERMASREG® ETR-50140 VA/100

1102-2010-1100-690
Temperature controller (external setting)
+50 ... +140 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 5K
Installation length: 100 mm
Stainless steel
IP65
$119.18

$141.79
°C
THERMASREG® ETR-060 U VA/100

1102-2010-2100-390
Temperature monitor (internal setting)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 100 mm
Stainless steel
IP65
$119.18

$141.79

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
