Temperature

Our quality products in the area of temperature measurement technology Thermasgard® and Thermasreg® meet the highest demands after precision, innovation and durability. S+S control technology also inspires with sophisticated thermostats, active temperature sensors and passive temperature sensors and many other solutions around the temperature measurement technology.

Your advantage: our holistic understanding of temperature measurement for a wide variety of applications and a high degree of technical experience as a manufacturer of robust and high -quality temperature sensors. If you have any questions about our product range, we are always happy to be there for you.

°C
THERMASGARD® FSTF NTC10K P 2L 2T

1101-5021-5672-256
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer, LED displays, presence button
$137.77

incl. VAT $163.80
°C
THERMASGARD® FSTF NTC20K P 2L 2T

1101-5021-6672-256
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer, LED displays, presence button
$137.77

incl. VAT $163.80
°C
THERMASGARD® FSTF NTC10K (B=3695K) P2L2T

1101-5021-9672-256
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer, LED displays, presence button
$137.77

incl. VAT $163.80
°C
THERMASGARD® FSTF KTY81-210 P2L2T

1101-5022-0672-256
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer, LED displays, presence button
$137.77

incl. VAT $163.80
°C
THERMASGARD® FSTF NTC1.8K P L T

1101-5021-2663-350
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer, LED displays, presence button
$137.77

incl. VAT $163.80
°C
THERMASGARD® FSTF NTC1.8K P L W

1101-5021-2655-353
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometers, LED displays, rocker switches
$137.86

incl. VAT $163.89
°C
THERMASGARD® FSTF Ni1000 P D4

1101-5020-9007-354
Passive
-30...+60 °C / -22...-140 °F
2-wire connection
Potentiometer, rotary switch
$137.96

incl. VAT $163.99
°C
THERMASREG® ALTR-1 U

1102-1030-2100-100
Temperature monitor (internal setting)

-35...+35 °C / -31...-95 °F

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA

Switching differential: 5K (± 1K)

Endless tension in the metal turnbuckle (included in the scope of delivery)

IP65
$137.96

incl. VAT $163.99
°C
THERMASREG® ALTR-3 U

1102-1030-2100-300
Temperature monitor (internal setting)

0...+60 °C / +32...+140 °F

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA

Switching differential: 5K (± 1K)

Endless tension in the metal turnbuckle (included in the scope of delivery)

IP65
$137.96

incl. VAT $163.99
°C

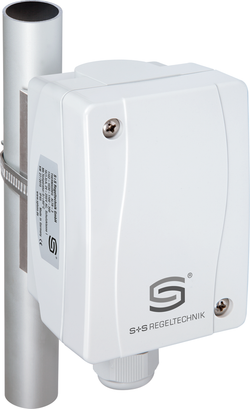

THERMASREG® ALTR-5 U

1102-1030-2100-400
Temperature monitor (internal setting)

0 ... 90 °C

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA

Switching differential: 5K (± 1K)

Endless tension in the metal turnbuckle (included in the scope of delivery)

IP65
$137.96

incl. VAT $163.99
°C
THERMASREG® ALTR-7 U

1102-1030-2100-500
Temperature monitor (internal setting)

0...120 °C / +32...+248 °F

Tmin ± 5 K; Tmax ± 5 K

Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA

Switching differential: 5K (± 1K)

Endless tension in the metal turnbuckle (included in the scope of delivery)

IP65
$137.96

incl. VAT $163.99
°C
THERMASGARD® TF54 Pt100 150mm Q

2Z01-4111-0100-031
-35...+180 °C / -31...-356 °F
PT100
Installation length: 150mm / 6 in
4-wire connection
Output variant: M12 plug connector
IP65
$138.87

incl. VAT $165.09
°C
THERMASGARD® TF54 Pt1000 150mm Q

2Z05-4111-0100-031
-35...+180 °C / -31...-356 °F
PT1000
Installation length: 150mm / 6 in
2-wire connection
Output variant: M12 plug connector
IP65
$138.87

incl. VAT $165.09
°C
THERMASGARD® ALTM2-I

1101-1122-0219-920
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
4..20mA
Cable gland
IP65
$139.67

incl. VAT $166.08
°C
THERMASGARD® ALTM2-U

1101-1121-0219-920
- 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
typically ± 0.2 K at +25 °C
0-10V
Cable gland
IP65
$139.67

incl. VAT $166.08
°C
THERMASGARD® RTF Pt1000 PU

1101-40A0-5004-050
-30...+70 °C / -22...-158 °F
Pt1000
2-wire connection
Potentiometer (0 - 10 V) - PressureMarking points +3K/-3K
IP30
$139.67

incl. VAT $166.08

We also manufacture individually

Do you have special requirements? As a manufacturer with our own production facilities in Germany, we are also able to produce products outside of the standard range at any time.
