Temperature
-

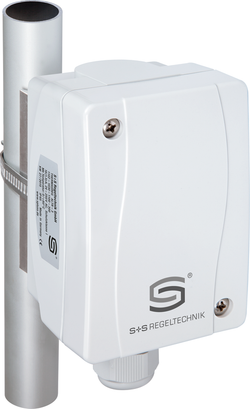

°CTHERMASREG® ALTR-7 U
1102-1030-2100-500
- Temperature monitor (internal setting)
- 0...120 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load):
24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.0
24 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6
at 24 V AC min. 150 mA - Switching differential: 5K (± 1K)
- Endless voltage in metal turnbuckle
(included in the scope of delivery) - IP65
$133.94
$159.21
-
°CTHERMASREG® KTR-060R85
1102-3010-7205-250
- Temperature controller (external setting) + safety temperature limiter
- 1. temperature range: 0...+60 °C
2nd temperature range: +65...+85 °C - Tmin ± 5 K; Tmax ± 3 K
- Output: Switching / changeover contact
- Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA - Operating medium: Air
- Thermowell:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm - Installation length: approx. 205 mm (with flange);
approx. 184 mm (without flange) - IP65
$137.69
$163.72
-
°CTHERMASREG® KTR-090R110
1102-3010-7205-350
- Temperature controller (external setting) + safety temperature limiter
- 1. temperature range: 0...+90 °C
2nd temperature range: +90...+110 °C - Tmin ± 5 K; Tmax ± 3 K
- Output: Switching / changeover contact
- Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA - Operating medium: Air
- Thermowell:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm - Installation length: approx. 205 mm (with flange);
approx. 184 mm (without flange) - IP65
$137.69
$163.72
-
°CTHERMASREG® KTR-090090 U
1102-3010-2205-150
- Double temperature monitor (internal setting)
- 1. temperature range: 0 ... +90 °C
2nd temperature range: 0 ... +90 °C - Tmin ± 5 K; Tmax ± 3 K
- Output: Switching / changeover contact
- Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA - Operating medium: Air
- Thermowell:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm - Installation length: approx. 205 mm (with flange);
approx. 184 mm (without flange) - IP65
$137.69
$163.72
We also manufacture individually
Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
