Thermostats
-
°CTHERMASREG® FST-8D-HR
1102-1024-1102-000
- Temperature limiter (with manual reset)
- -10...+15 °C/ +14...+59 °F, factory setting w = +5 °C (+41 °F) / +14...+59 °F
- Switching capacity:10 (2) A, AC 250 V; also switches signal voltages due to the gold-plated contacts < 24 V
- Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
- Capillary tube length: 0.6 m / 19.7 ft
- Sensor response length: approx. 40 cm
- Sensor: Copper
- Permissible medium: Air
- IP65
$118.34
$140.76
-
°CTHERMASREG® ETR-0120 VA/100
1102-2010-1100-590
- Temperature controller (external setting)
- 0 ... +120 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 5K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ETR-060 VA/100
1102-2010-1100-390
- Temperature controller (external setting)
- 0 ... +60 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ETR-090 VA/100
1102-2010-1100-490
- Temperature controller (external setting)
- 0 ... +90 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ETR-1 VA/100
1102-2010-1100-190
- Temperature controller (external setting)
- -35 ... +35 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ETR-50140 VA/100
1102-2010-1100-690
- Temperature controller (external setting)
- +50 ... +140 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 5K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ETR-060 U VA/100
1102-2010-2100-390
- Temperature monitor (internal setting)
- 0 ... +60 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ETR-090 U VA/100
1102-2010-2100-490
- Temperature monitor (internal setting)
- 0 ... +90 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 100 mm / 4 in
- Stainless steel
- IP65
$119.18
$141.79
-
°CTHERMASREG® ALTR-1
1102-1030-1100-100
- Temperature controller (external setting)
- -35...+35 °C / -31...-95 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
$121.87
$144.86
-
°CTHERMASREG® ALTR-3
1102-1030-1100-300
- Temperature controller (external setting)
- 0...+60 °C / +32...+140 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
$121.87
$144.86
-
°CTHERMASREG® ALTR-5
1102-1030-1100-400
- Temperature controller (external setting)
- 0 ... 90 °C
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
$121.87
$144.86
-

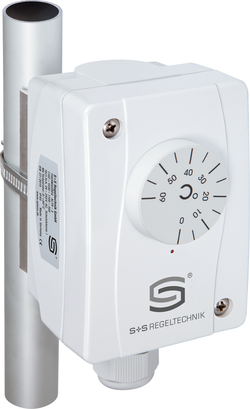

°CTHERMASREG® ALTR-7
1102-1030-1100-500
- Temperature controller (external setting)
- 0...120 °C / +32...+248 °F
- Tmin ± 5 K; Tmax ± 5 K
- Switching capacity (contact load): 24 ... 250 V AC + 10 %, 16 A, cos ϕ = 1.024 ... 250 V AC + 10 %, 1.5 A, cos ϕ = 0.6 at 24 V AC min. 150 mA
- Switching differential: 5K (± 1K)
- Endless tension in the metal turnbuckle (included in the scope of delivery)
- IP65
$121.87
$144.86
-
°CTHERMASREG® ETR-0120 VA/150
1102-2010-1100-530
- Temperature controller (external setting)
- 0 ... +120 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 5K
- Installation length: 150 mm / 6 in
- Stainless steel
- IP65
$122.03
$145.21
-
°CTHERMASREG® ETR-060 VA/150
1102-2010-1100-330
- Temperature controller (external setting)
- 0 ... +60 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 150 mm / 6 in
- Stainless steel
- IP65
$122.03
$145.21
-
°CTHERMASREG® ETR-090 VA/150
1102-2010-1100-430
- Temperature controller (external setting)
- 0 ... +90 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 150 mm / 6 in
- Stainless steel
- IP65
$122.03
$145.21
-
°CTHERMASREG® ETR-1 VA/150
1102-2010-1100-130
- Temperature controller (external setting)
- -35 ... +35 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: 3K
- Installation length: 150 mm / 6 in
- Stainless steel
- IP65
$122.03
$145.21
