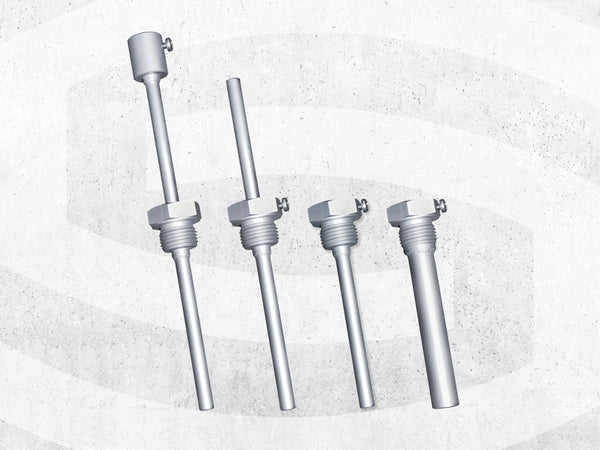

Thermowells

Our thermowells are the ideal accessory for temperature sensors that are used in liquids, gases or pipes. They protect the sensor from mechanical influences, facilitate maintenance and enable quick replacement without having to interrupt the process.
Available in various lengths, diameters and materials (e.g. stainless steel, brass), they are perfectly matched to our temperature sensors - whether for HVAC systems, industrial processes or special applications. Threaded connections, weld-in variants and flange versions offer maximum flexibility during installation.

High-quality thermowells ensure long-lasting, reliable and service-friendly temperature measurement.

Thermowells TH08-MS-G 300MM

7100-0017-0060-132
300 mm
R 1/2"
Brass cleaned
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$22.22

$26.40
Thermowells THR-08-MS/VA THR-MS-08/200

7100-0011-3403-000
200 mm

R 1/2"

Nickel-plated / galvanized brass

max. Pressure10 bar

max. medium temperature: +150 °C

suitable for: Temperature regulator ETR (Thor 2)
$22.35

$26.53
Thermowells TH08-MS 350MM

7100-0011-0070-132
350 mm / 14 in
R 1/2"
Nickel-plated / galvanized brass
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$22.80

$26.98
Thermowells TH08-MS-G 350MM

7100-0017-0070-132
350 mm
R 1/2"
Brass cleaned
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$22.80

$26.98
Thermowells TH08-MS 400MM

7100-0011-0080-132
400 mm / 16 in
R 1/2"
Nickel-plated / galvanized brass
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$23.39

$27.76
Thermowells TH08-MS-G 400MM

7100-0017-0080-132
400 mm
R 1/2"
Brass cleaned
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$23.39

$27.76
Thermowells TH-MS/VA TH-VA 50MM

7100-0012-0010-001
50 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$24.55

$29.11
Thermowells THE-VA 50MM

7100-0012-6010-002
50 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +200 °C
suitable for: Sleeve sensor HTF/ HFTM
$25.05

$29.80
Thermowells TH08-VA 50MM

7100-0012-0010-132
50 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +600 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$26.14

$31.08
Thermowells TH-MS/VA TH-MS NPT 2in

7100-0011-0010-231
2 inch
NPT 1/2"
Nickel-plated / galvanized brass
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 54/ TM 54 (Form B)
$26.26

$31.20
Thermowells TH08-MS NPT 2in

7100-0011-0010-234
2 inch
Nickel-plated / galvanized brass
max. Pressure10 bar
max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$26.26

$31.20
Thermowells TH08-MS-G NPT 2in

7100-0017-0010-234
2 inch
NPT 1/2"
Brass cleaned
max. Pressure10 bar
Max. medium temperature: +150 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$26.26

$31.20
Thermowells TH-MS/VA TH-VA 100MM

7100-0012-0020-001
100 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$27.12

$32.25
Thermowells THE-VA 100MM

7100-0012-6020-002
100 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +200 °C
suitable for: Sleeve sensor HTF/ HFTM
$27.67

$32.80
Thermowells TH08-VA 100MM

7100-0012-0020-132
100 mm / 4 in
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +600 °C
Suitable for: TF 43, TM 43, TF 65, TM 65, TM 65-Modbus (Tyr 1)
$28.79

$34.11
Thermowells TH-MS/VA TH-VA 150MM

7100-0012-0030-001
150 mm
G1/2"
made of stainless steel V4A (1.4571)
max. Pressure40 bar
max. medium temperature: +600 °C
Suitable for: TF 54/ TM 54 (Form B)
$29.14

$34.65

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
