Product description
- 0... 6 bar
- Modbus RTU
- G1/8"

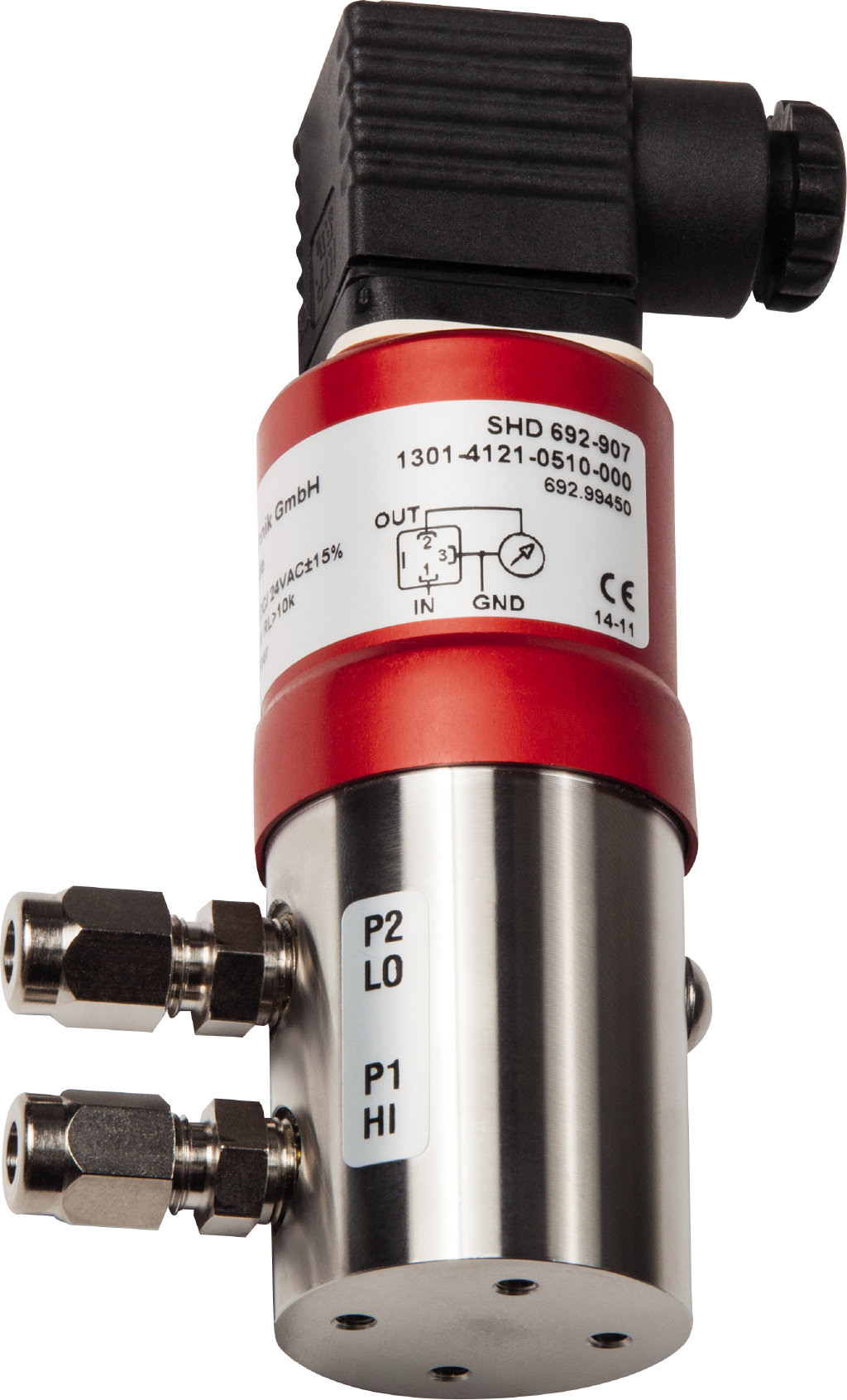

The SHD-692 differential pressure transmitter is used in pipelines and hydraulic systems, in mechanical and plant engineering and in building automation.
Not suitable for ammonia and freons!

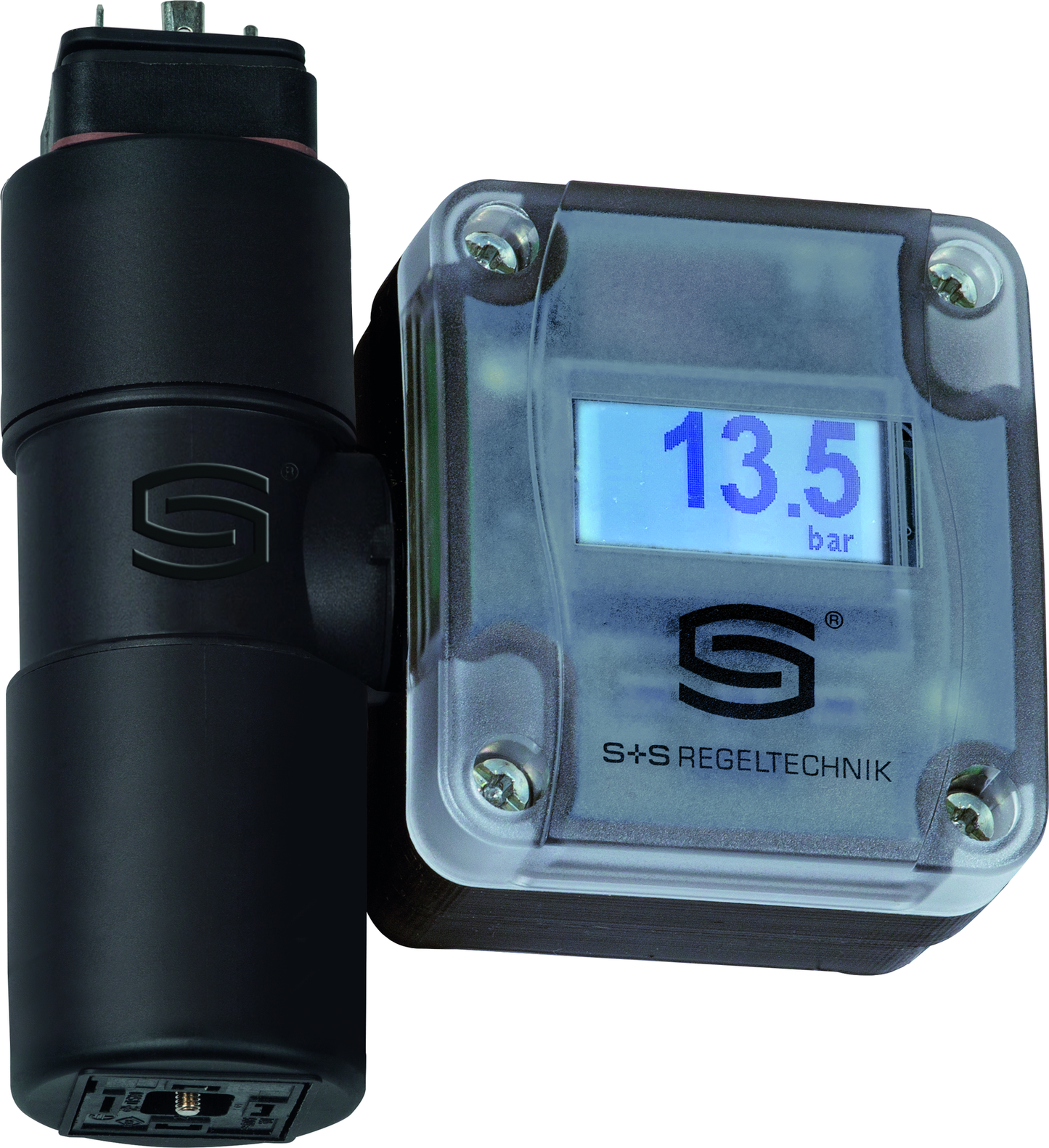

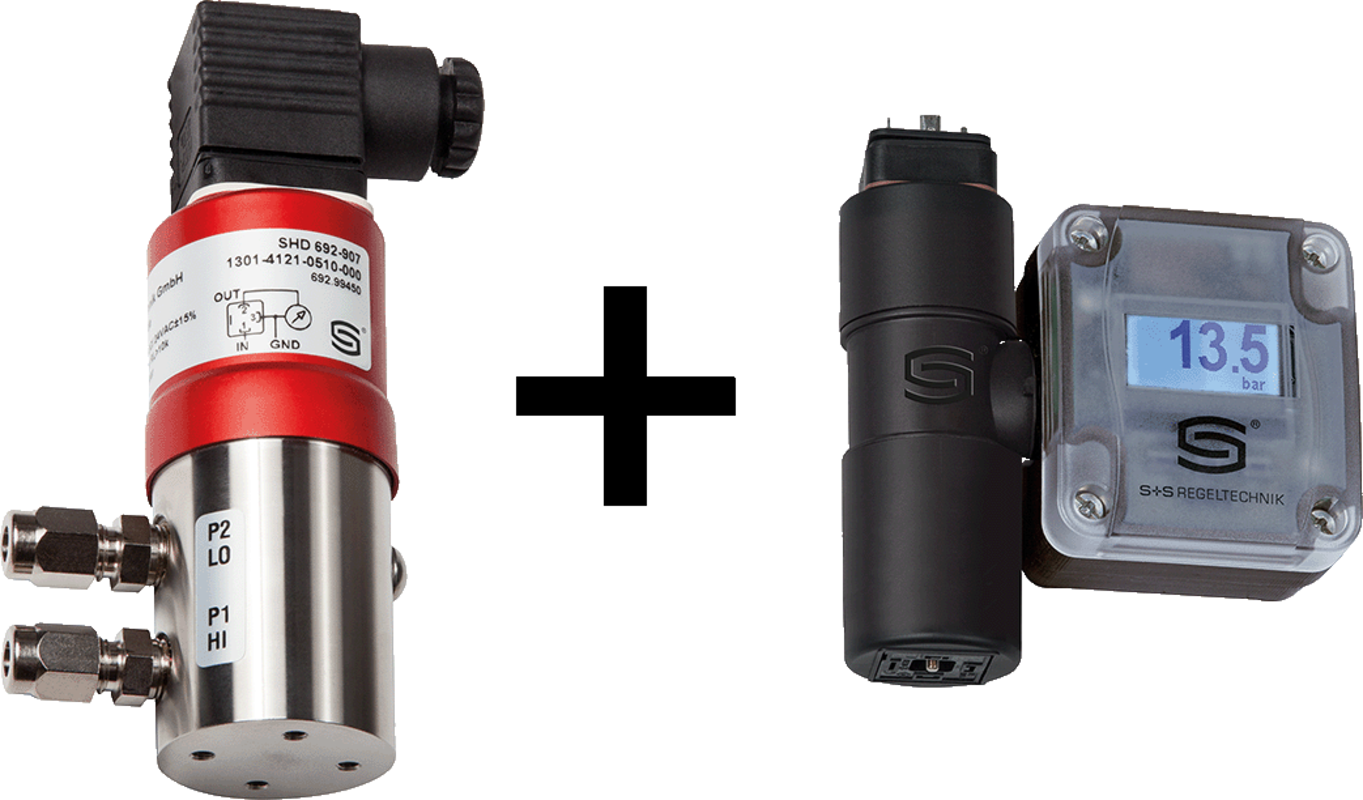

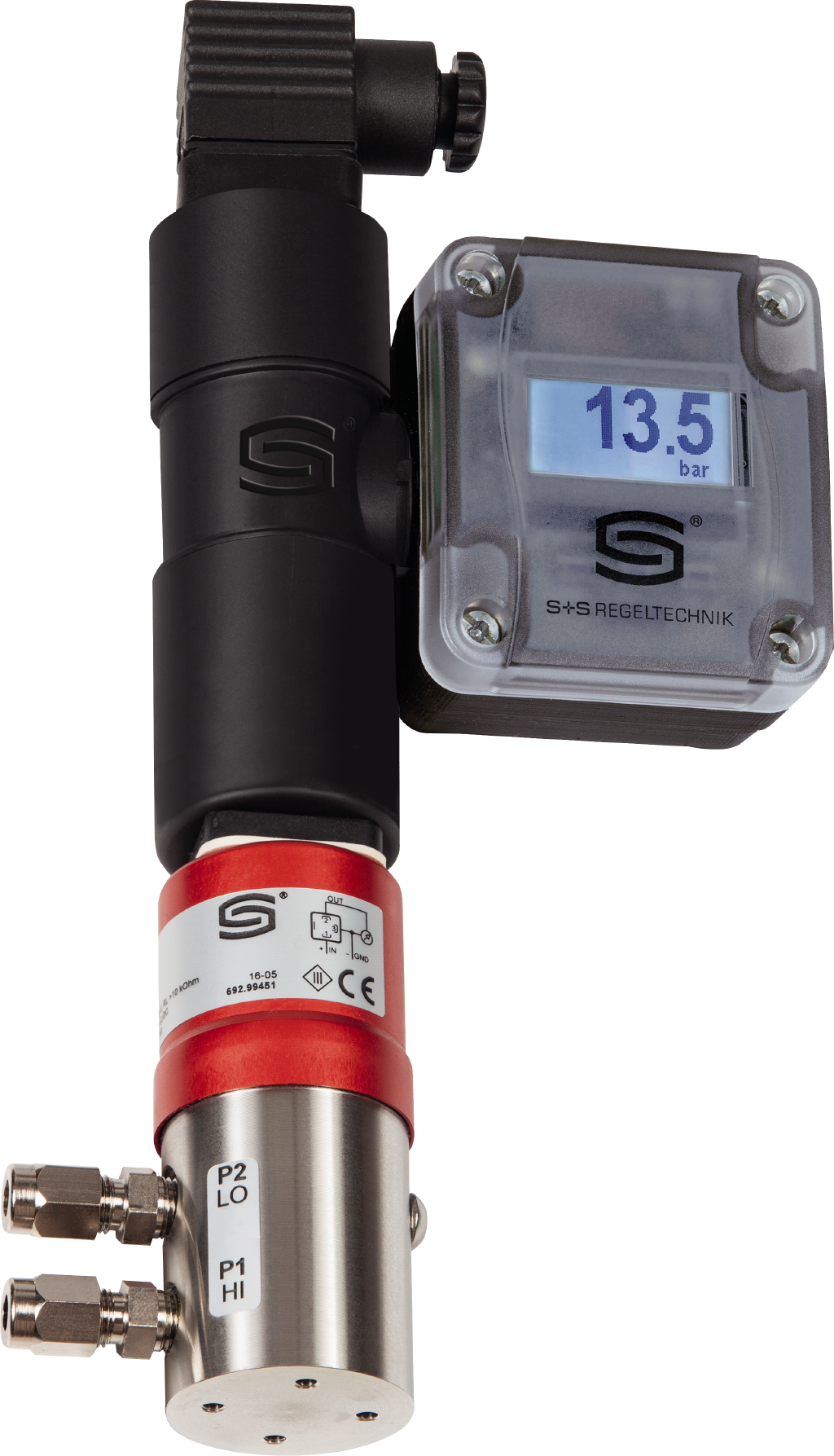

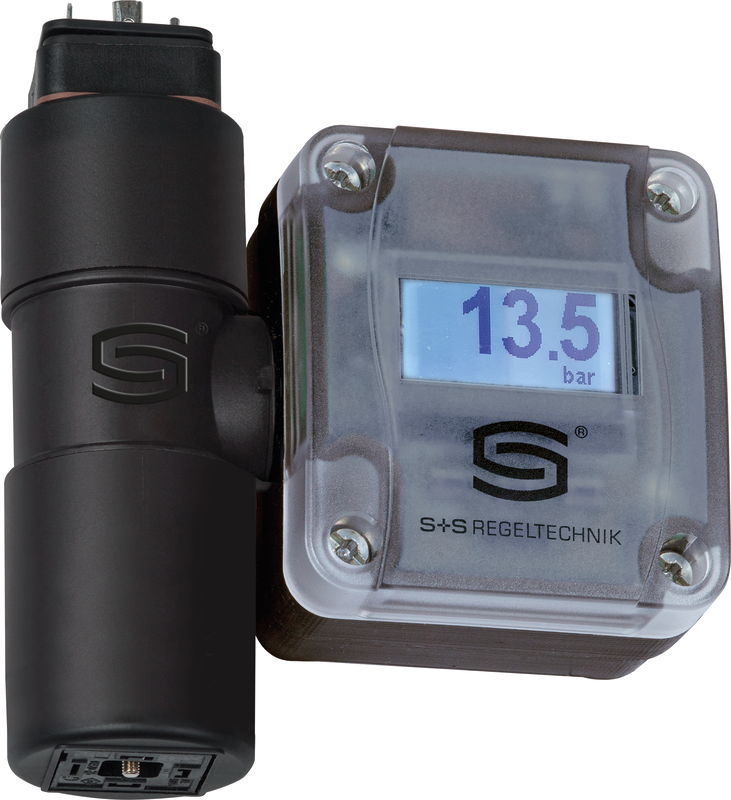

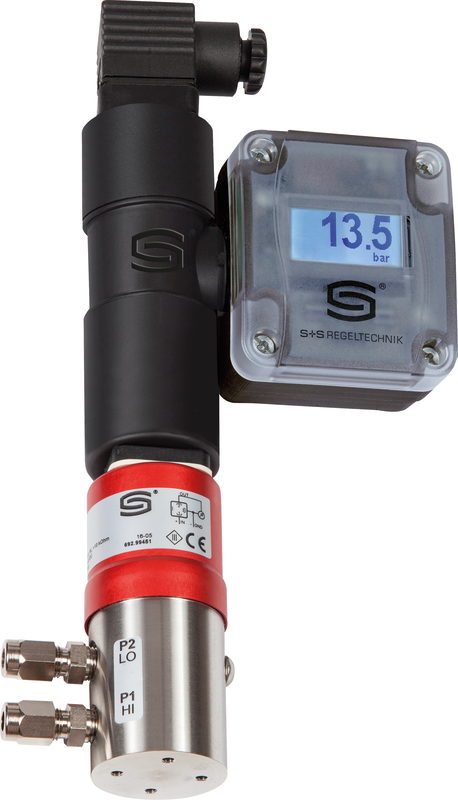

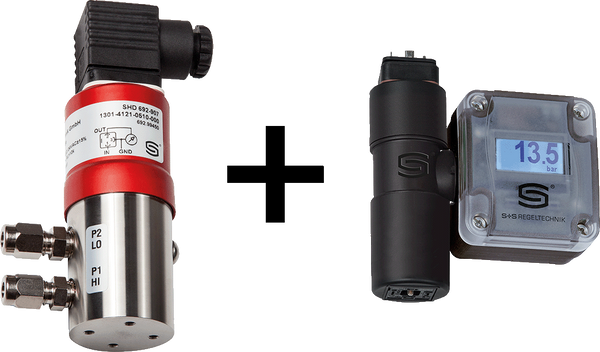

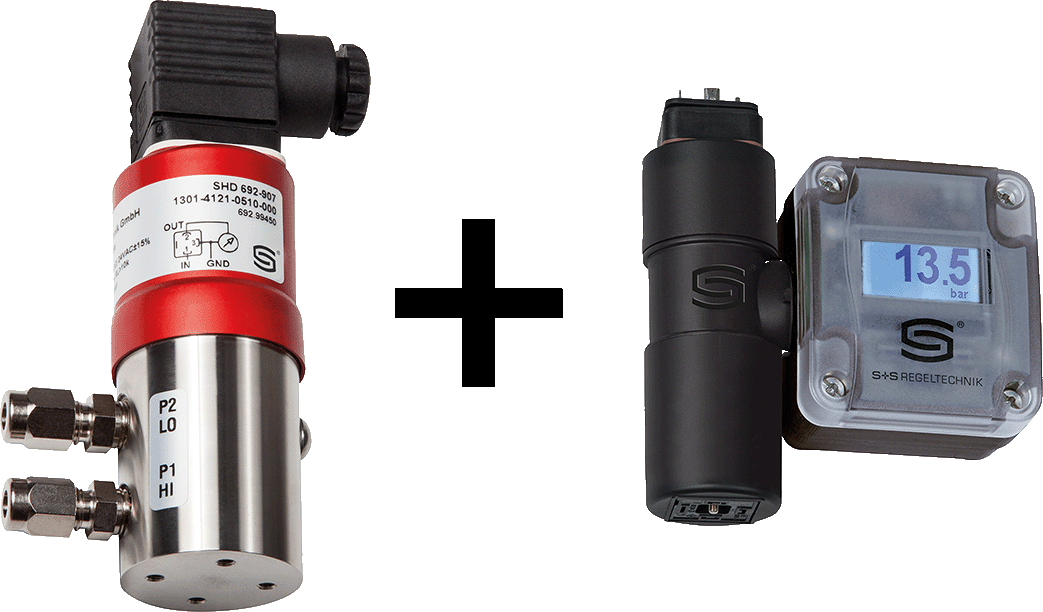

The SHD 692-xx-LCD device variant is supplied with an LCD-SHD display module. It is mounted below the angle plug. The module can be mechanically rotated and tilted, and the display content can be rotated in 90° steps to achieve the ideal reading position. The display types and pressure unit are configured directly on the display (menu-driven via buttons).
Technical data
| Measurement | Pressure, Pressure (water), differential pressure |
| Output | Modbus RTU |
| Display | Yes |
| Measuring range | 0... 6 bar |
| Output | Modbus RTU |
| Measuring principle | ceramic measuring cell |
