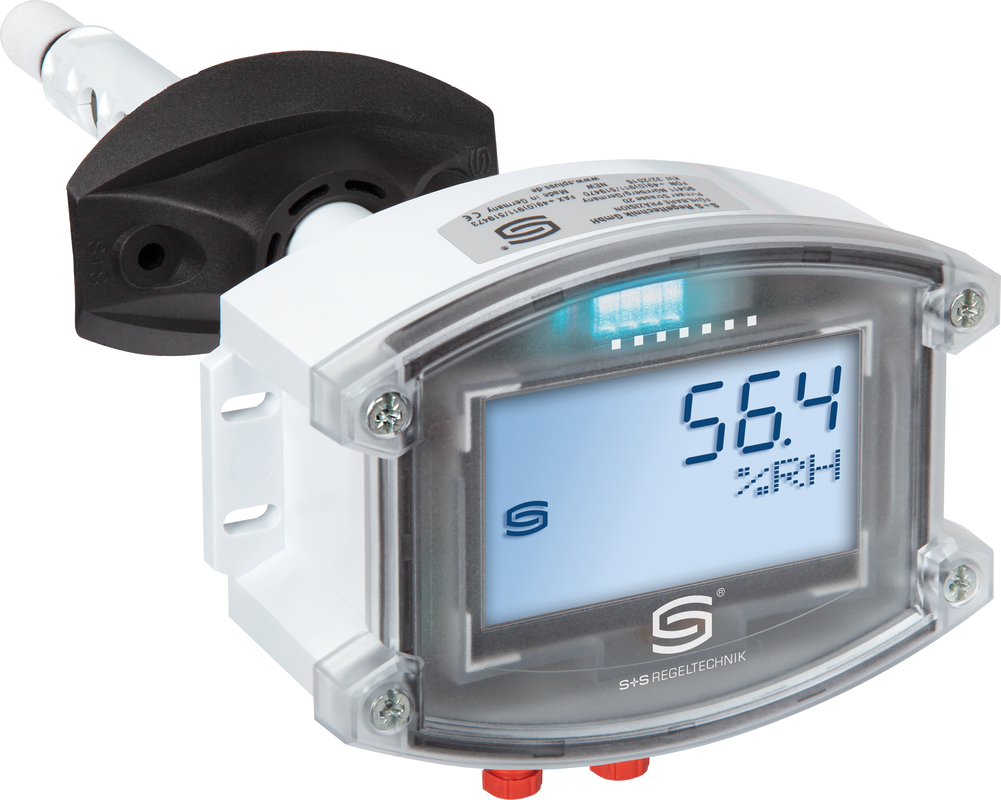

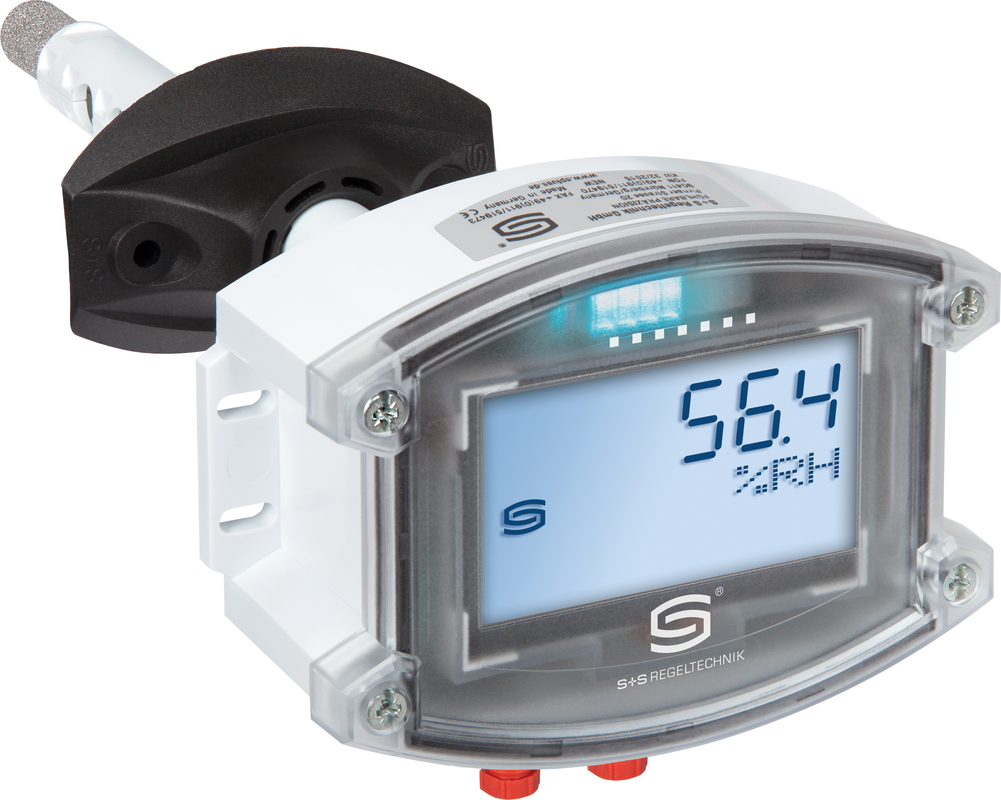

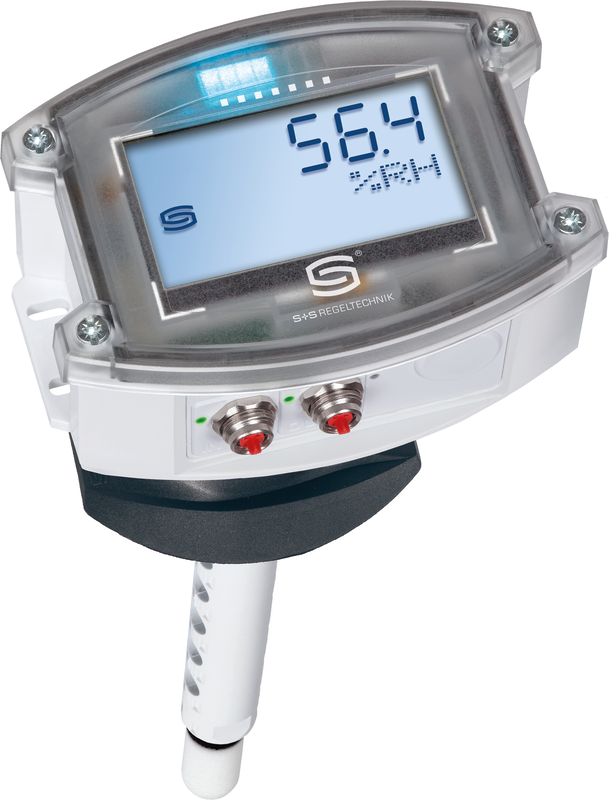

Duct humidity and temperature sensors HYGRASGARD® KFTF-ECATP LCD

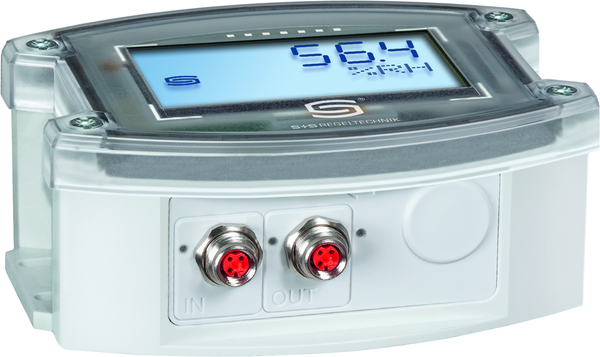

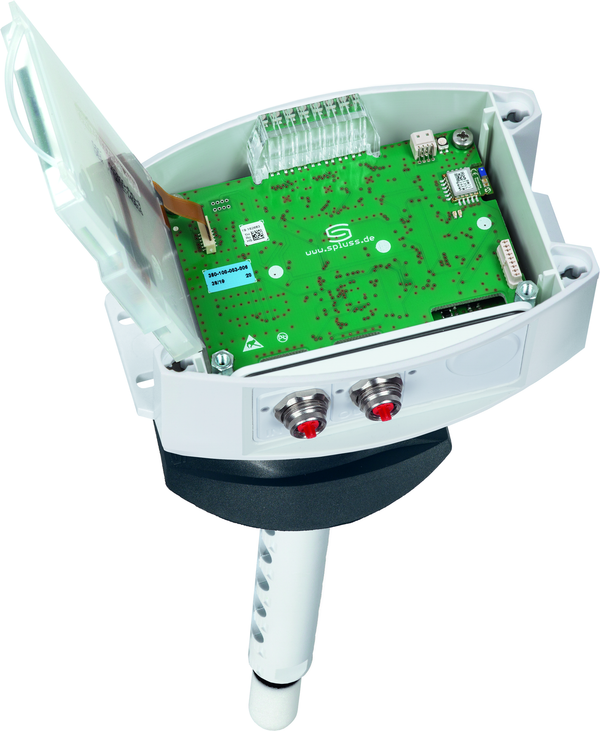

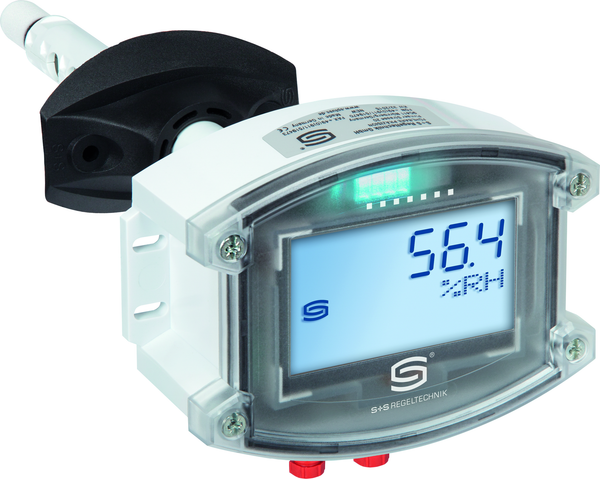

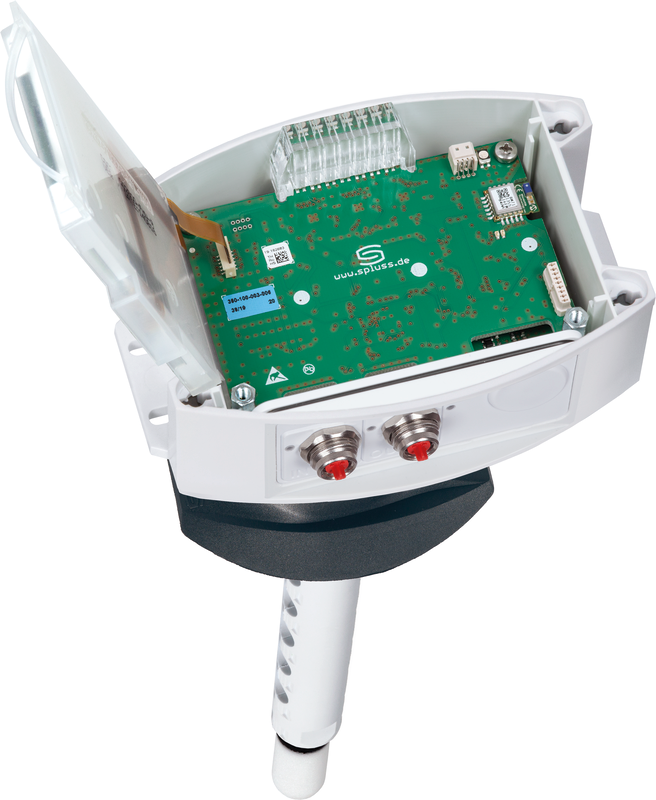

Networkable duct humidity and temperature sensor HYGRASGARD® KFTF - EtherCAT P with M8 plug connector (EtherCATP-coded), Bluetooth-capable, in impact-resistant plastic housing with quick-release screws, optionally with/without display and bar graph, with plastic sintered filter (replaceable), incl. mounting flange.

The sensor is used to determine various parameters of humidity measurement technology. The following are measured relative humidity (0...100 % RH) and the temperature (- 35...+80 °C) of the ambient air. Further output variables are calculated internally from these measured variables: absolute humidity (0...80 g/m³), mixing ratio (0...80 g/kg), Dew point temperature (- 20...+80 °C) and enthalpy (0...85 kJ/kg), disregarding atmospheric pressure. A long-term stable, digital sensor guarantees exact measurement results. The sensor is calibrated at the factory.

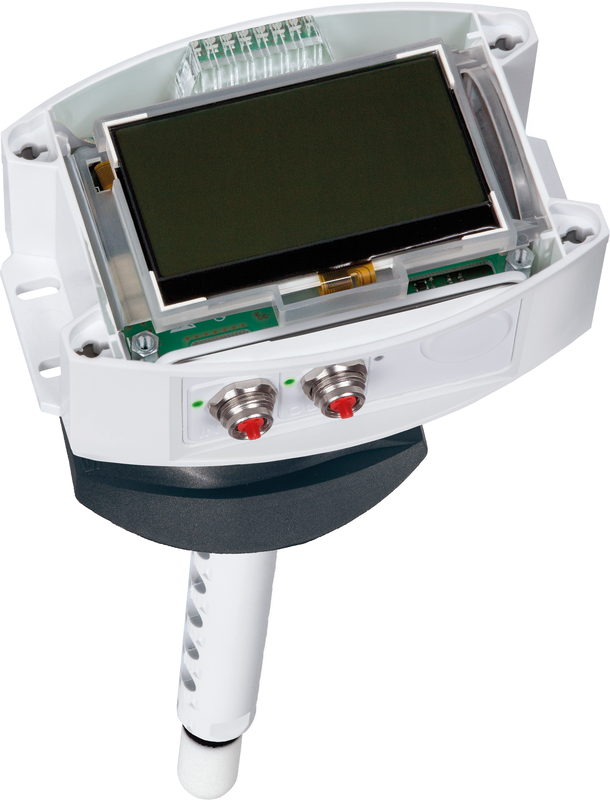

EtherCAT P-capable measuring transducer for industrial requirements with maximum reliability: with simple integration into the PLC level via the ESI configuration file of the device, with diagnostic options (such as communication error counter), extended setting options, retrievable historical data (min/max) and maintenance interval determination of the sensor. Optionally with large illuminated display (three lines, individually programmable in the 7-segment and dot-matrix area) and bargraph (seven digits, LEDs freely configurable) for graphical representation, e.g. as a traffic light display.
