°C
%RH

Duct humidity and temperature sensors HYGRASGARD® KFTF-20-U VAQ LCD

SKU 2003-4162-1100-001 EAN 4 251325 624587 Product group: WG02
In stock , available in 1-3 working days
$1,019.55
$1,019.55

Product description

  • -35...+35 / -35...+75 / 0...+50 / 0...+80 °C0...100 % RH / +32...+176 °F
  • Accuracy humidity: ± 1.8 % / temp.: ± 0.2 K
  • Temperature [°C], relative humidity [% RH]
  • 0 - 10 V
  • IP 65

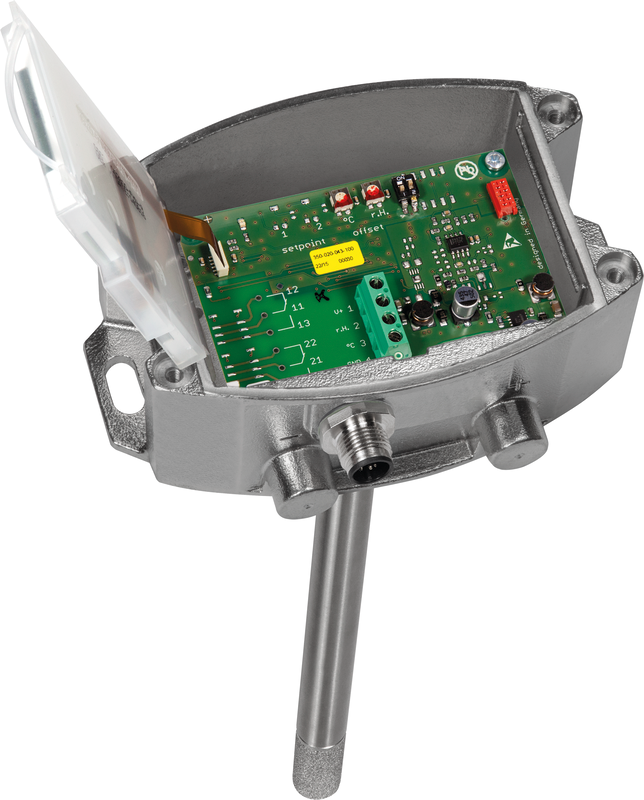

Calibratable humidity and temperature sensor HYGRASGARD® KFTF - 20-VA (± 1.8 %) with metal sintered filter, robust housing made of stainless steel V4A, optionally with/without display, with cable gland or M12 plug connector to DIN EN 61076-2-101.

The device measures the relative humidity and temperature of the air and converts the measured variable into a standard signal of 0-10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The measuring transducer is designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
