MF-06-M
Regular price
$15.67
Regular price
Sale price
$15.67
°C
Product description
- −35...+600 °C
- Pt1000
- Installation length: 500 mm

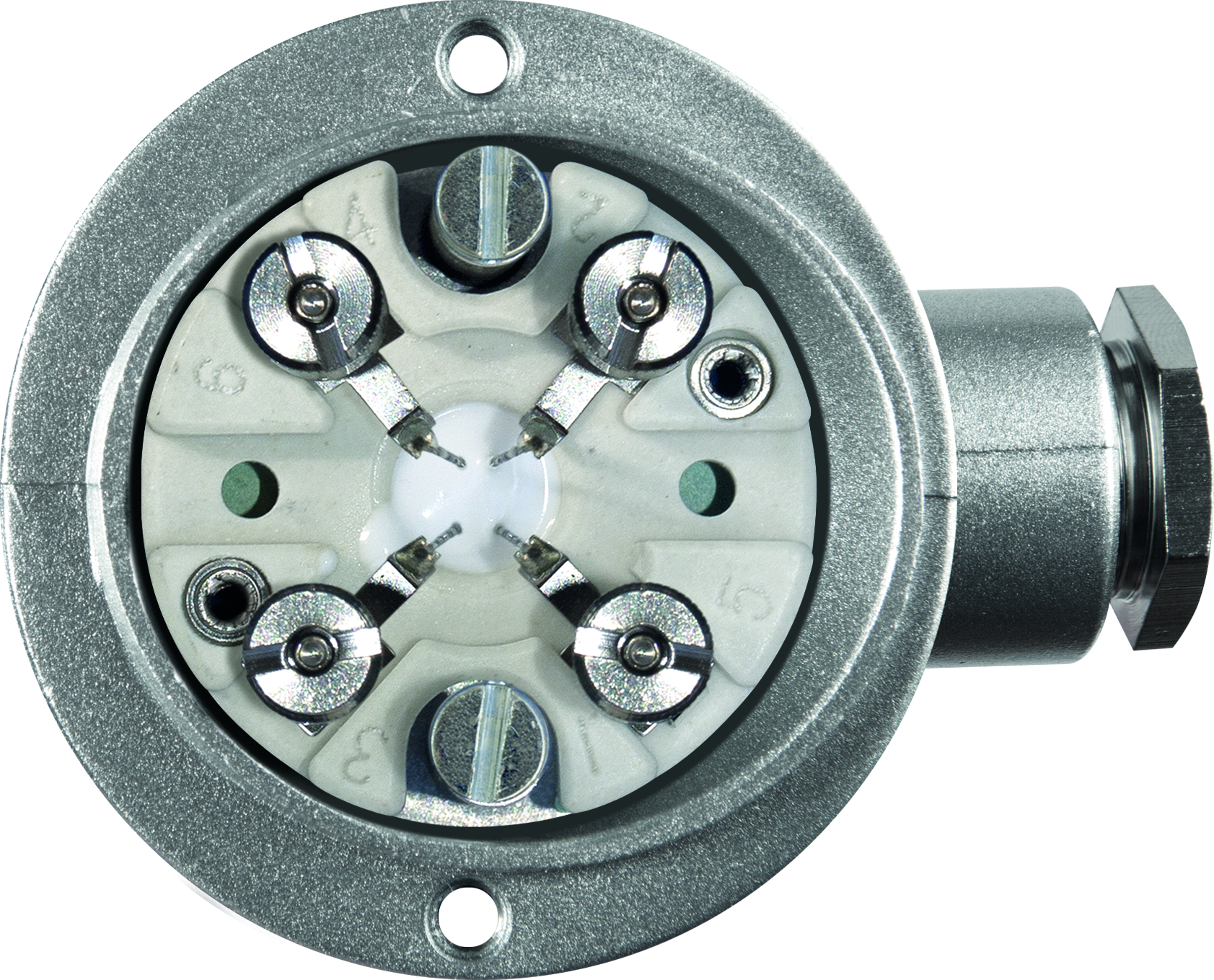

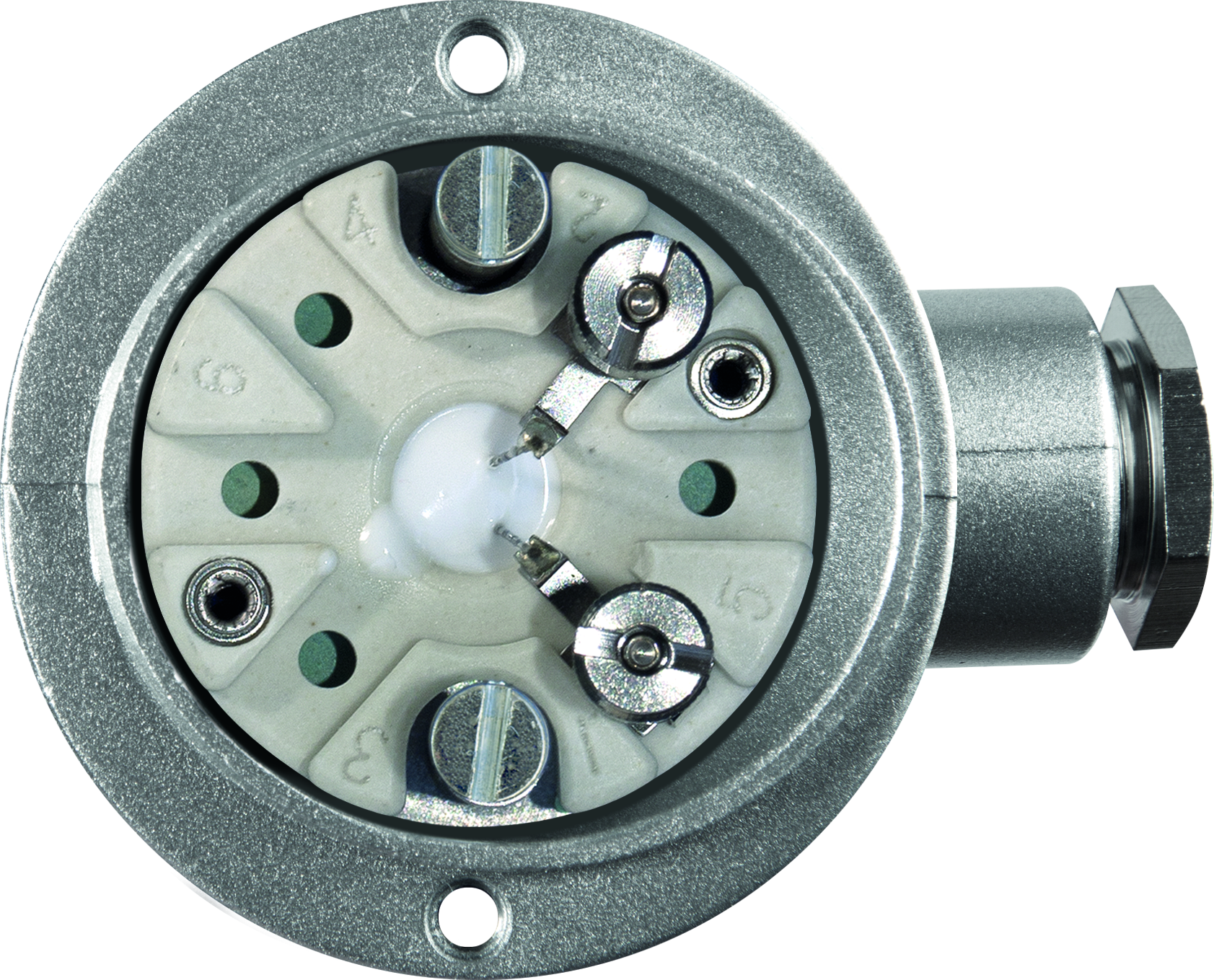

- 2-wire connection
- Output variant: cable gland
- IP65

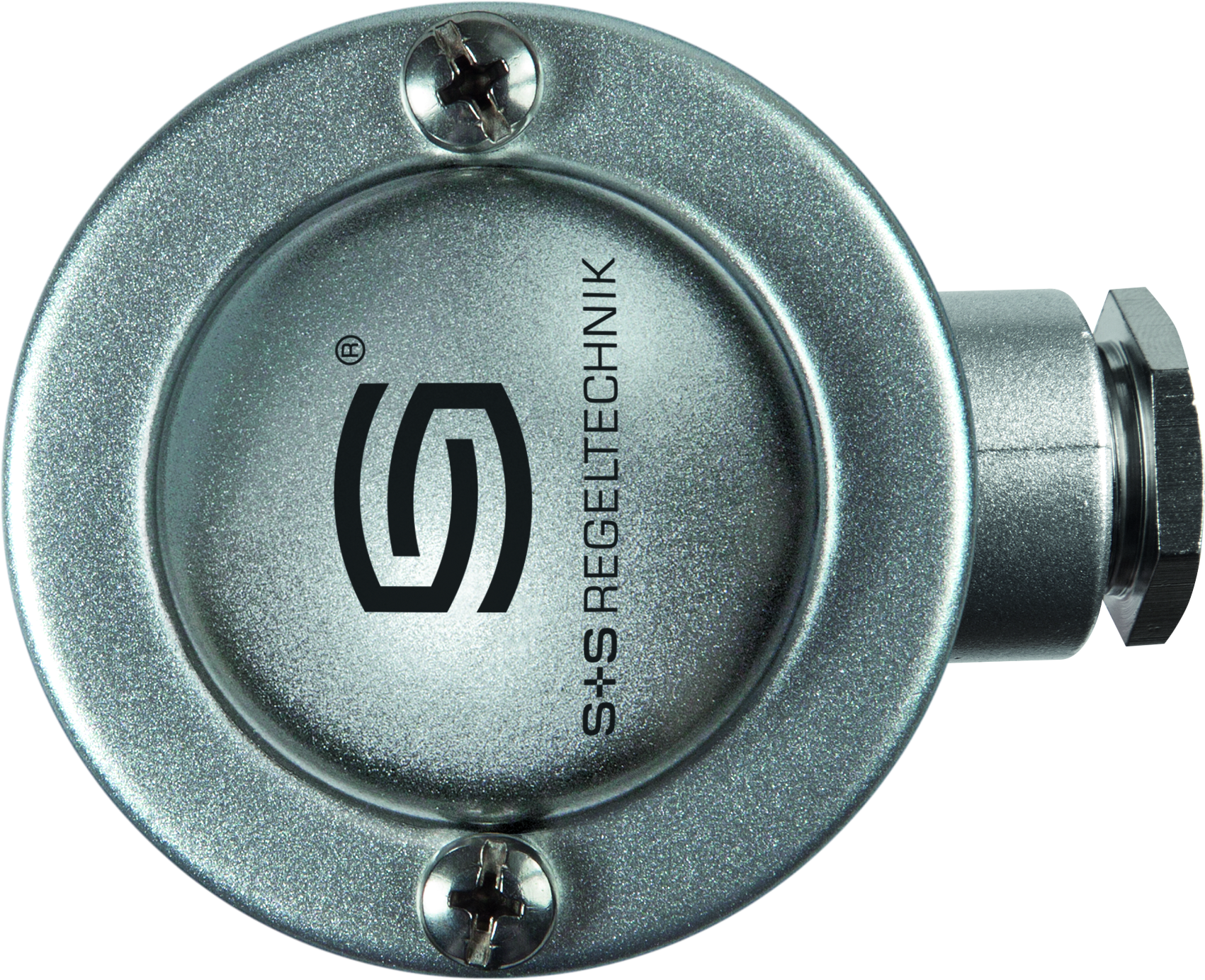

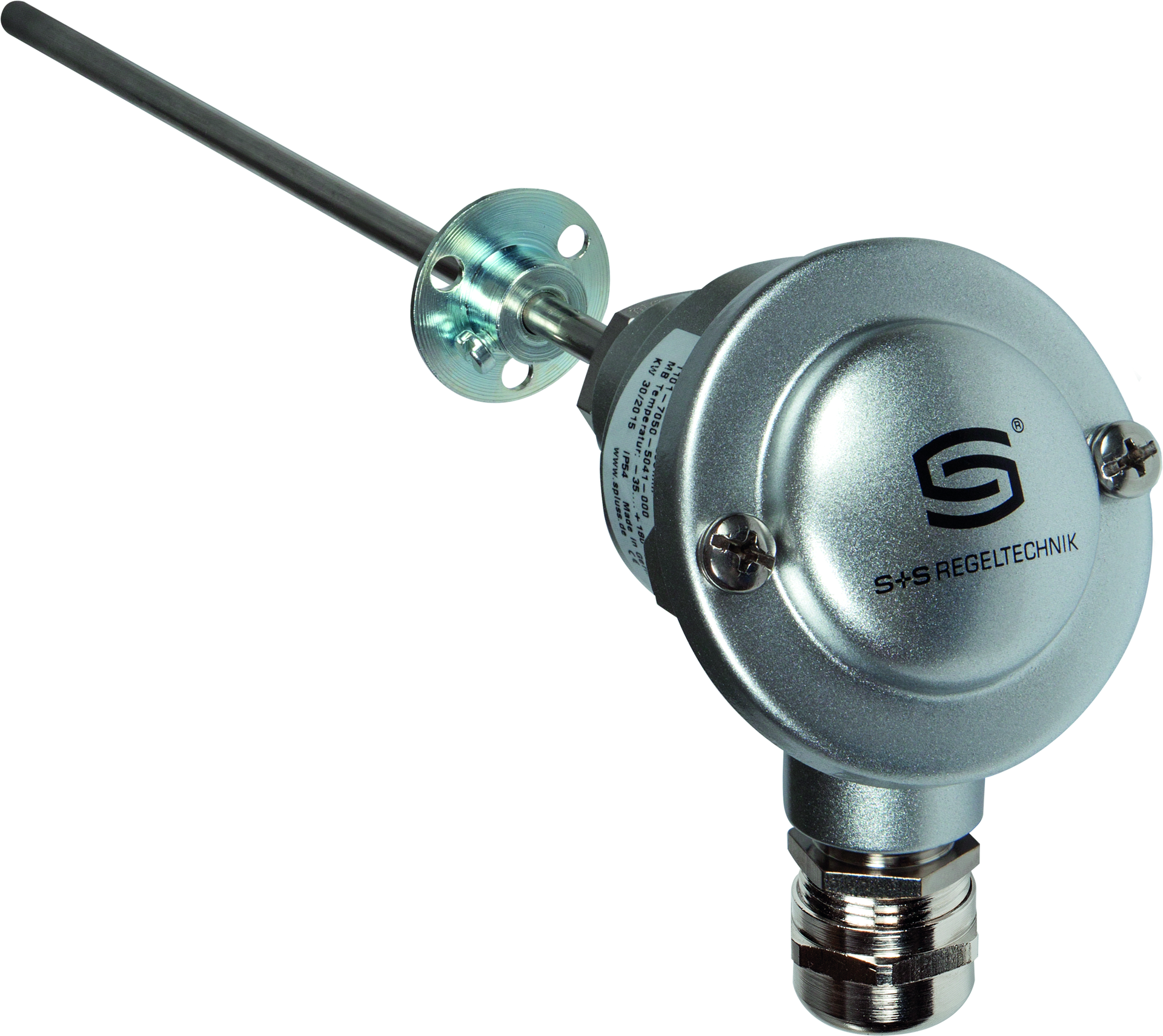

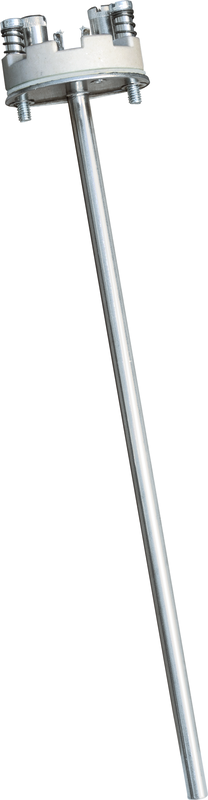

Resistance thermometer/flue gas temperature sensor THERMASGARD® RGTF 1 with passive output, optionally with cable gland or M12 plug connector to DIN EN 61076-2-101, with aluminum connection head and straight protective tube, incl. mounting flange.
The duct sensor is used to detect relatively high temperatures in gaseous media, e.g. for exhaust air and flue gas temperature measurement.
The duct sensor is used to detect relatively high temperatures in gaseous media, e.g. for exhaust air and flue gas temperature measurement.
Technical data
| Sensor | Pt1000 |
| Function type | temperature measurement |
| Application / mounting | screw-in probe |
| Measured variables | temperature, passive temperature |
| Installation lengths metric / mm | 500 mm |
| Display | no |
| Protection rating | IP65 |
| Output variant | cable gland |
| Housing | B-head |
| Measuring range | –35...+600 °C (optional extended measuring range limits from –100...+750 °C) |
| Cable connection | cable gland |
