KRD-04
Regular price
$10.79
Regular price
Sale price
$10.79
Sale
°C
Product description
- Temperature monitor (automatic switching)
- -10...+15 °C/ +14...+59 °F,
Factory setting w = +5 °C (+41 °F) - Switching capacity:
10 (2) A, AC 250 V;
due to the gold-plated contacts also
switching of signal voltages < 24 V - Switching differential: 2 ± 1 K (3.6 ± 1.8 °F)
- Capillary tube length: 6.0 m
- Sensor response length: approx. 40 cm
- Sensor: copper
- Permitted medium: Air
- IP65

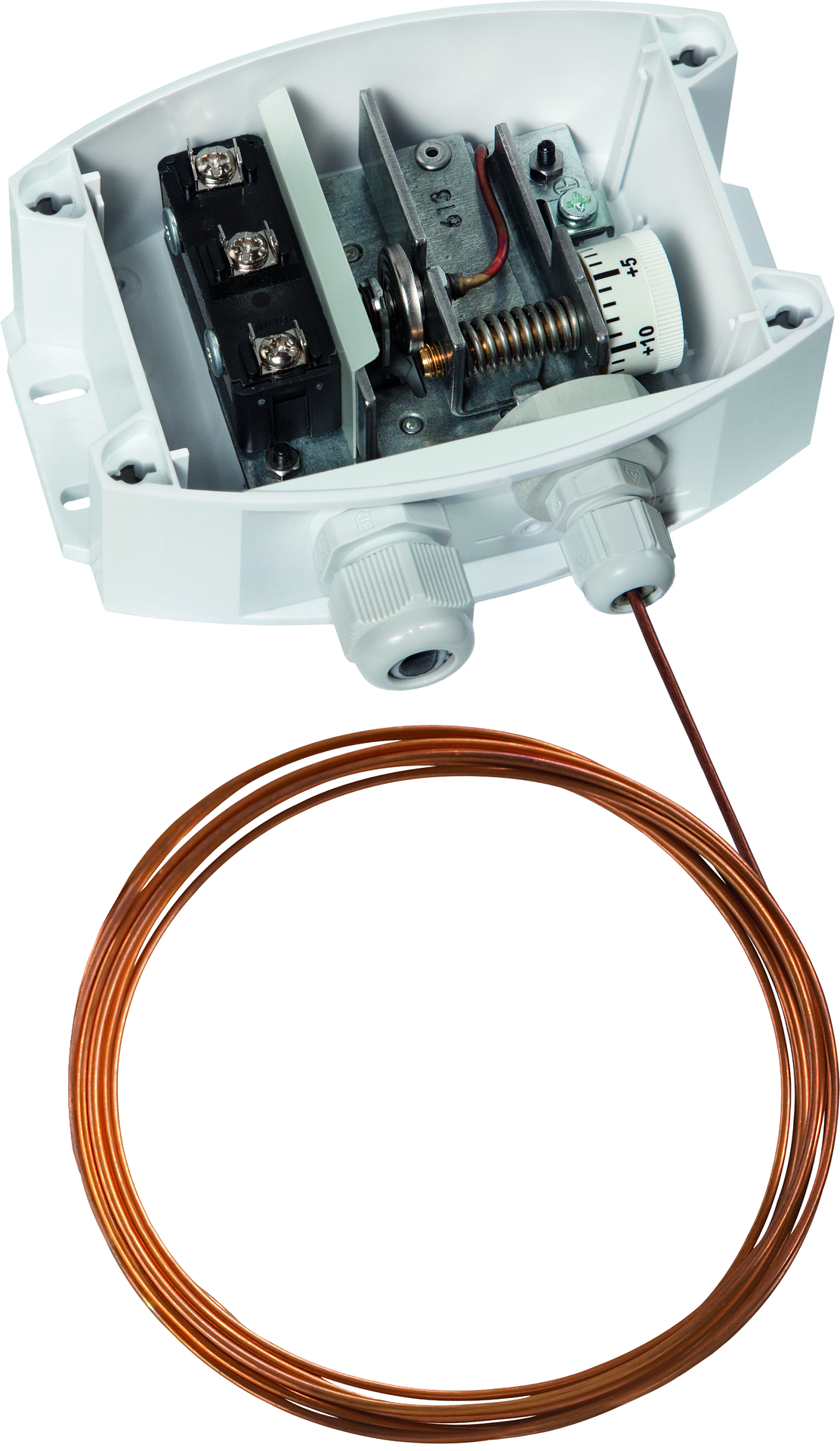

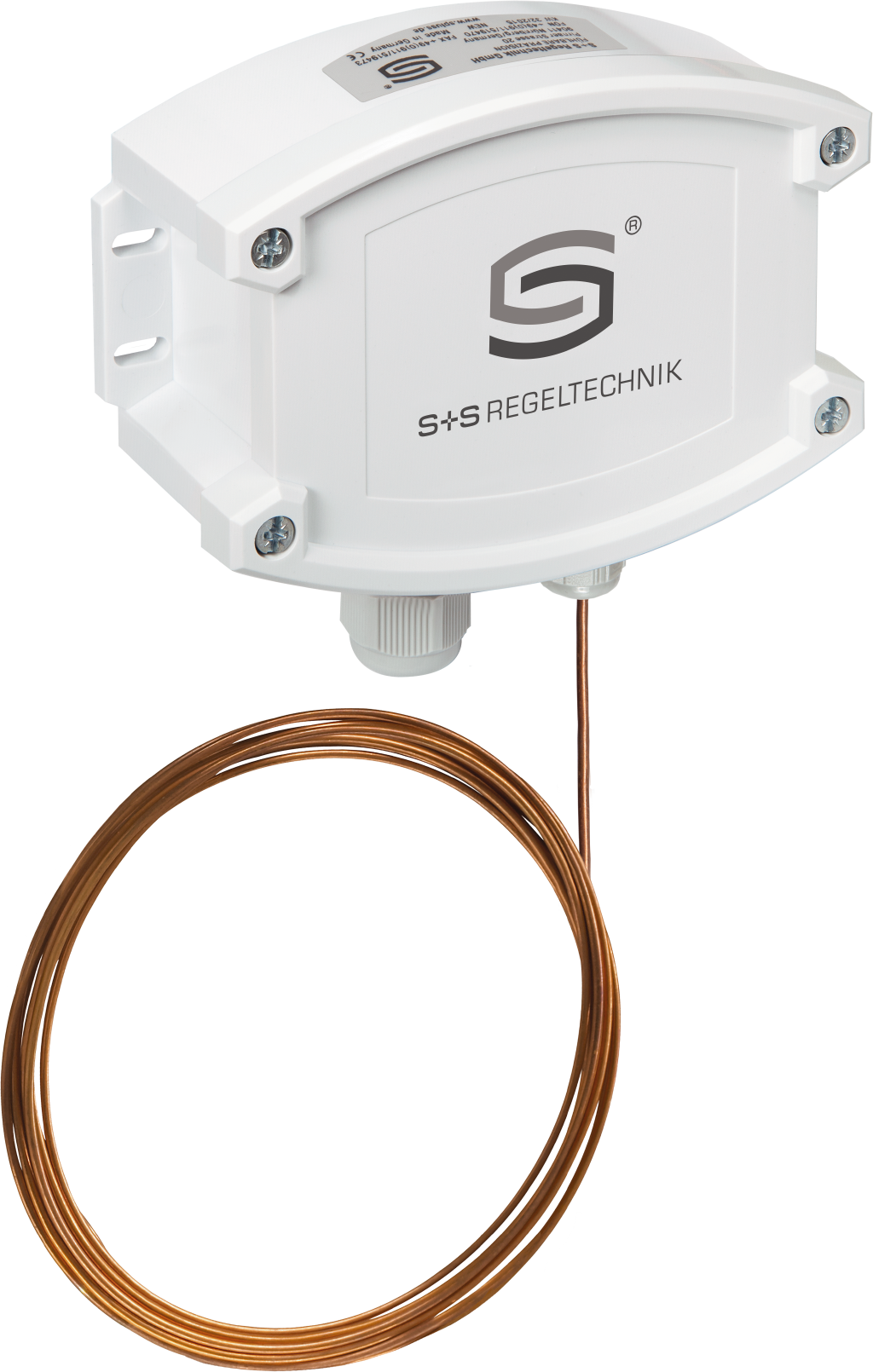

Mechanical frost protection thermostat/frost monitor THERMASREG® FST with switching output, fully active sensor rod, automatic reset or mechanical interlock with manual reset, available in capillary lengths of 0.6 m, 1.8 m, 3 m, 6 m, 12 m.

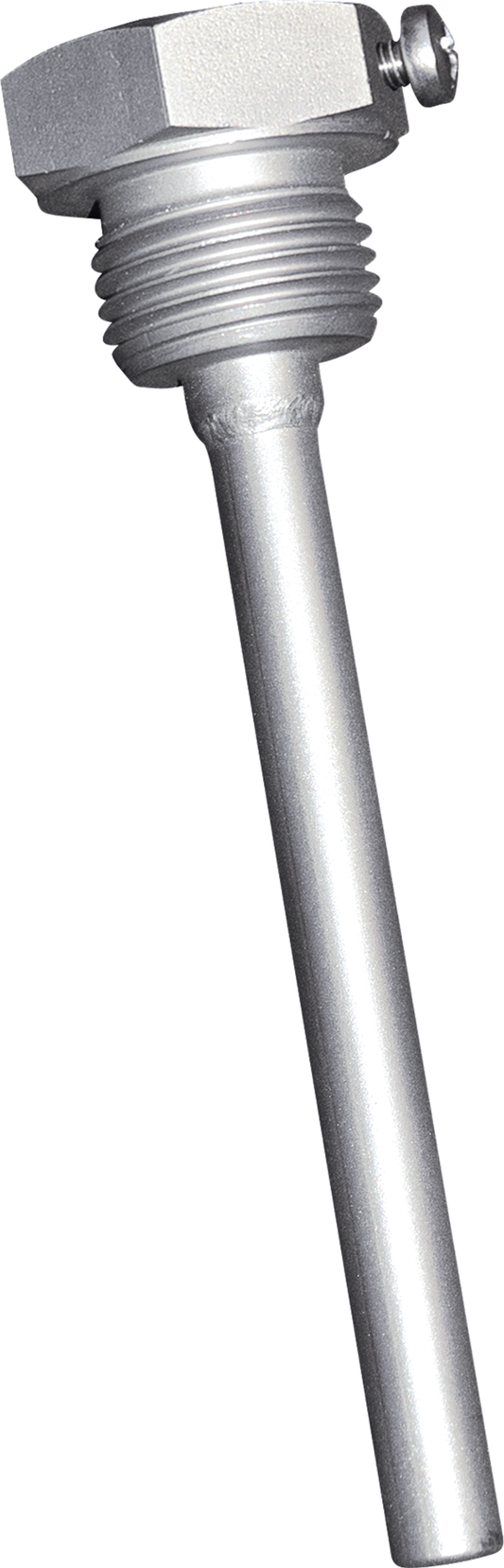

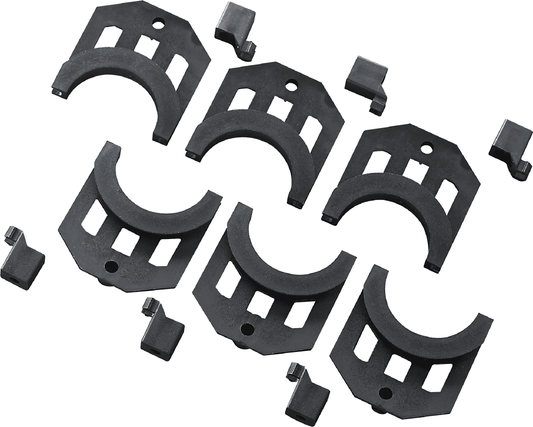

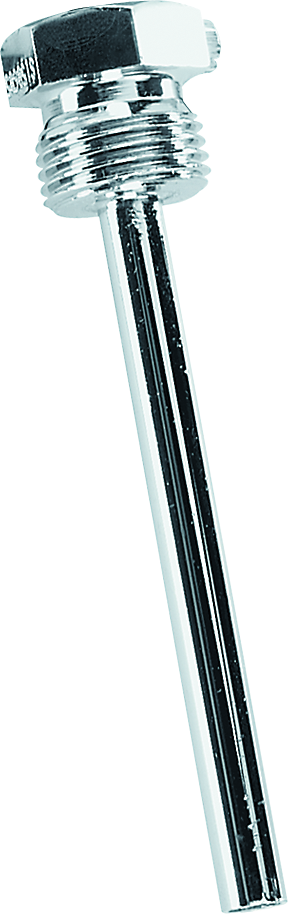

The frost protection monitor is suitable for air or water-side temperature monitoring of heat exchangers, water circulation systems and heating registers against freezing and for preventing frost damage, e.g. in ventilation and air conditioning ducts. It is intrinsically safe, with sensor break detection. If the capillary tube diaphragm system is damaged, the frost sensor automatically switches to the heating function. The FST 3 is also suitable for monitoring liquids. The sensor tube can be installed in an immersion sleeve. Delivery includes mounting clips MK-05-K.
The frost protection monitor is suitable for air or water-side temperature monitoring of heat exchangers, water circulation systems and heating registers against freezing and for preventing frost damage, e.g. in ventilation and air conditioning ducts. It is intrinsically safe, with sensor break detection. If the capillary tube diaphragm system is damaged, the frost sensor automatically switches to the heating function. The FST 3 is also suitable for monitoring liquids. The sensor tube can be installed in an immersion sleeve. Delivery includes mounting clips MK-05-K.
