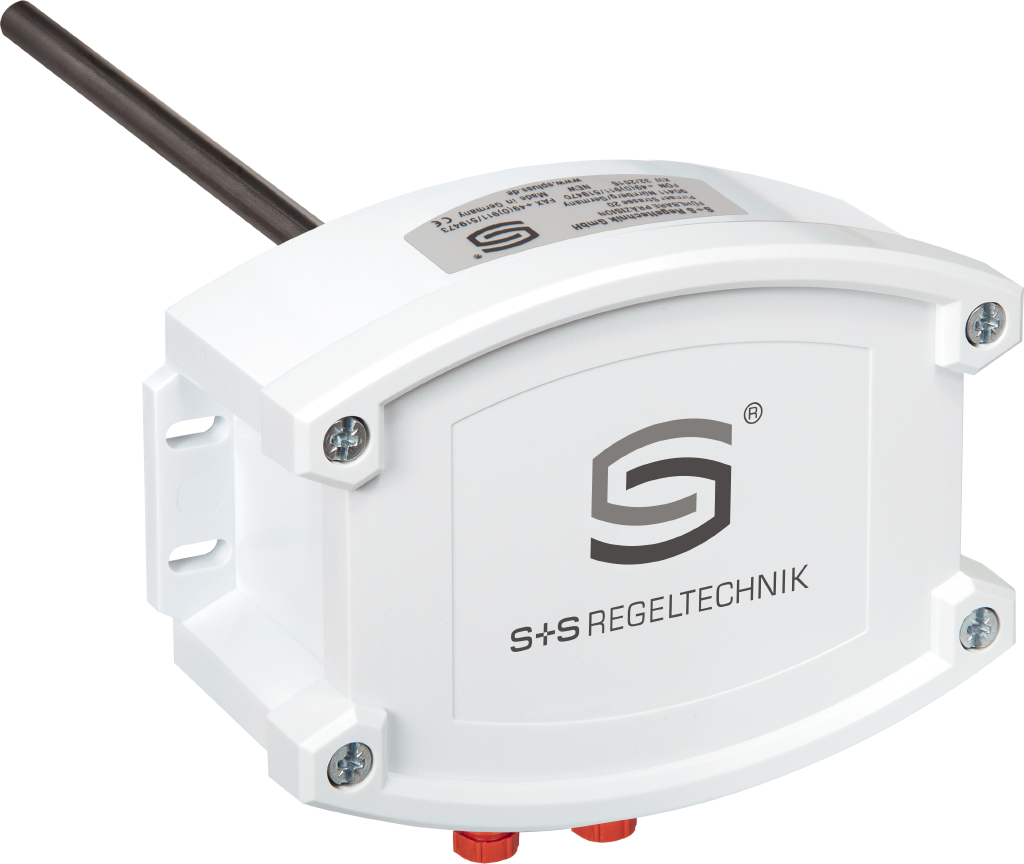

THERMASGARD® TM65-ECATP 100mm

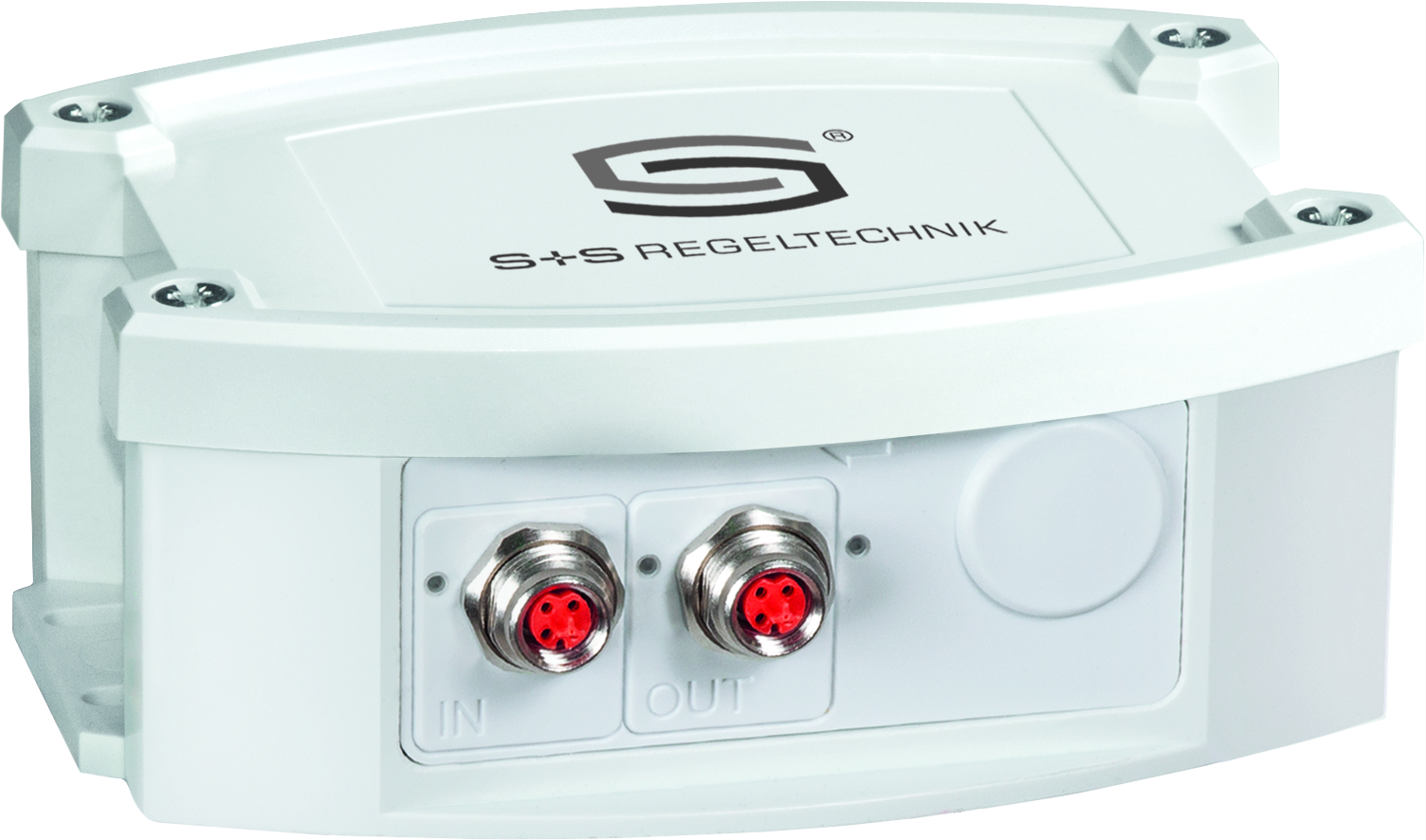

Networkable temperature transmitter with sensor tube THERMASGARD® TM65 - EtherCAT P with M8 plug connector (EtherCATP-coded), Bluetooth-capable, in impact-resistant plastic housing with quick-release screws, optionally with/without display and bar graph.

The duct sensor is used to measure the temperature in liquid or gaseous media. Stainless steel immersion sleeves must be used for aggressive media (see accessories). It is used in heating technology, ventilation and air conditioning ducts, in pipelines, storage tanks, compact district heating stations, hot and cold water systems, oil and lubrication circulation systems, in mechanical and plant engineering and in the entire industrial sector. The sensor is calibrated at the factory.

EtherCAT P-capable measuring transducer for industrial requirements with maximum reliability: with simple integration into the PLC level via the ESI configuration file of the device, with diagnostic options (such as communication error counter), extended setting options, retrievable historical data (min/max) and maintenance interval determination of the sensor. Optionally with large illuminated display (three lines, individually programmable in the 7-segment and dot-matrix area) and bar graph (seven digits, LEDs freely configurable) for graphical representation, e.g. as a traffic light display.
