Ceiling-mounted brightness sensor PHOTASGARD® DHKF I

SKU 1601-6122-1000-000 EAN 4 251325 616308 Product group: WG01
In stock , available in 1-3 working days
Shipping calculated at checkout.
$184.79
$184.79

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • Light sensor
  • 0...500 lux / 0... 1 kLux / 2 kLux / 5 kLux / 20 kLux / 60 kLux
  • 4..20 mA
  • IP30, IP65, IP67

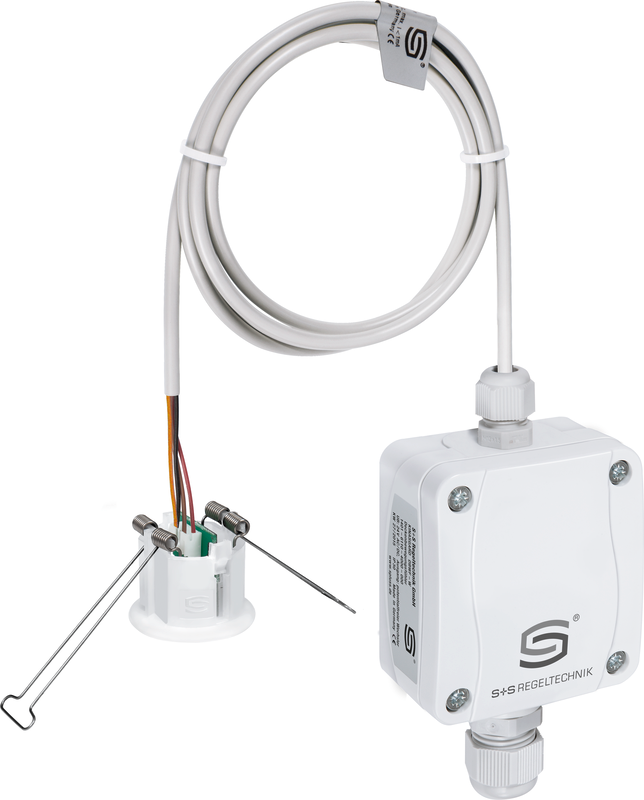

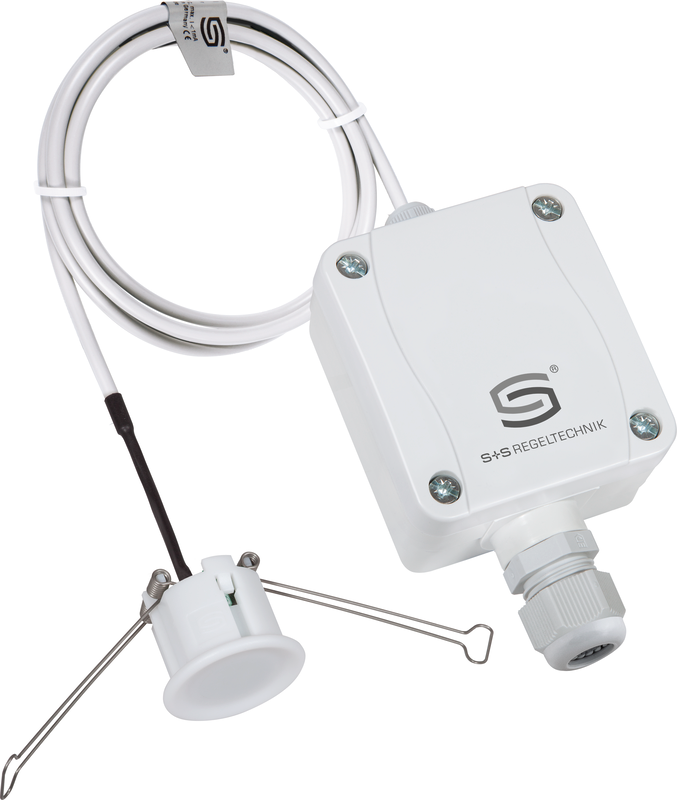

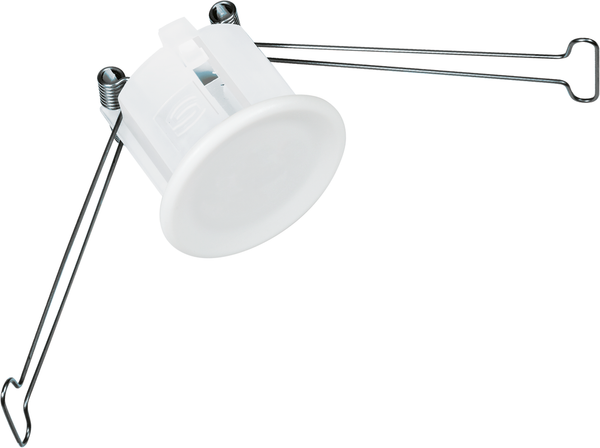

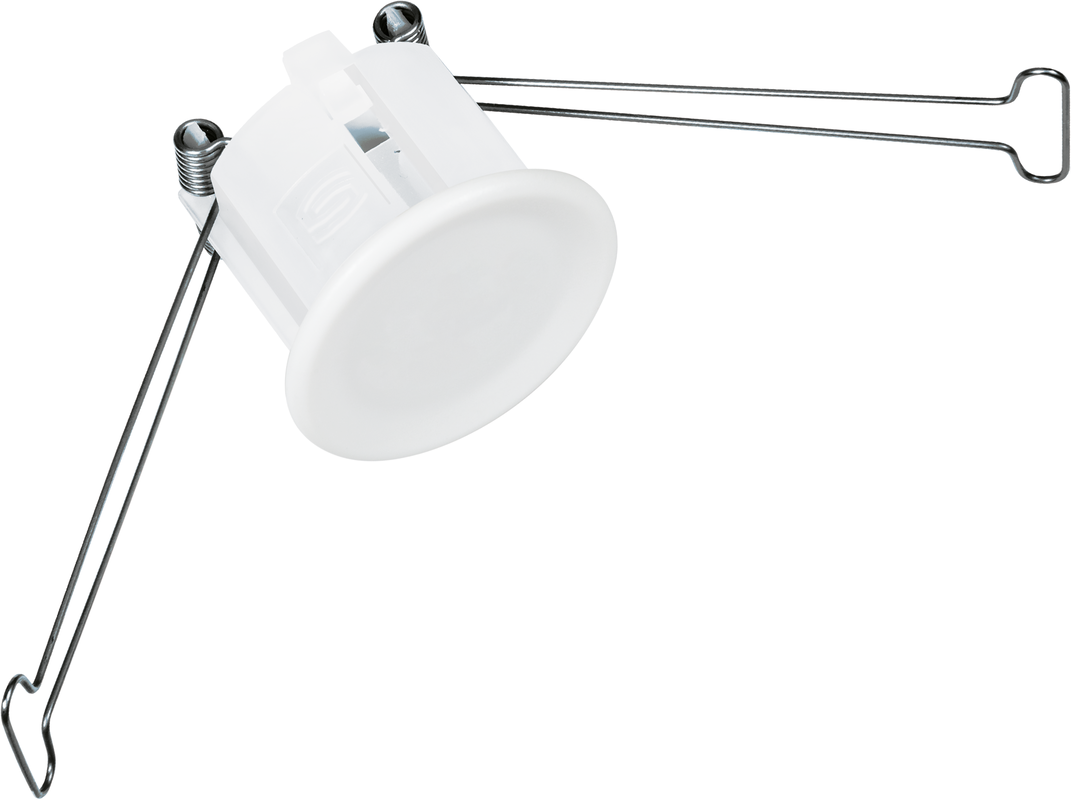

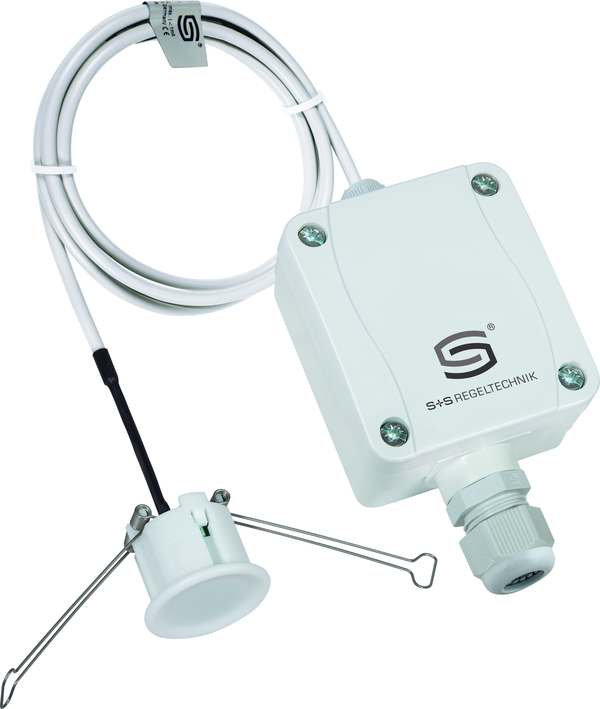

The PHOTASGARD® DHKF brightness sensor with six switchable measuring ranges (six devices in one) is installed in suspended ceilings. The connection head is pluggable for quick and easy installation. The measuring transducer is located in a separate housing.


The sensor used has been specially adapted to eye sensitivity. Its maximum sensitivity is in the range from 350 to 820 nm. With its special filter, the sensor is therefore predestined for measuring the illuminance of daylight and/or artificial light with a high color temperature (similar to sunlight).

The brightness transmitter is used for daylight-dependent constant light control, for controlling lights, lighting systems, blinds and awnings as well as for controlling brightness and sun protection to prevent unnecessary room heating. It is used in greenhouses, warehouses, industrial halls, workplaces, corridors, residential and business premises.

Technical data

Measurement brightness
Power supply 15...36 V DC
dependence on load residual ripple stabilized ± 0.3 V
Output variant -
Measuring range 0...500 Lux / 0...1 kLux / 2 kLux / 5 kLux / 20 kLux / 60 kLux
Output 4...20 mA
Output 4...20 mA
