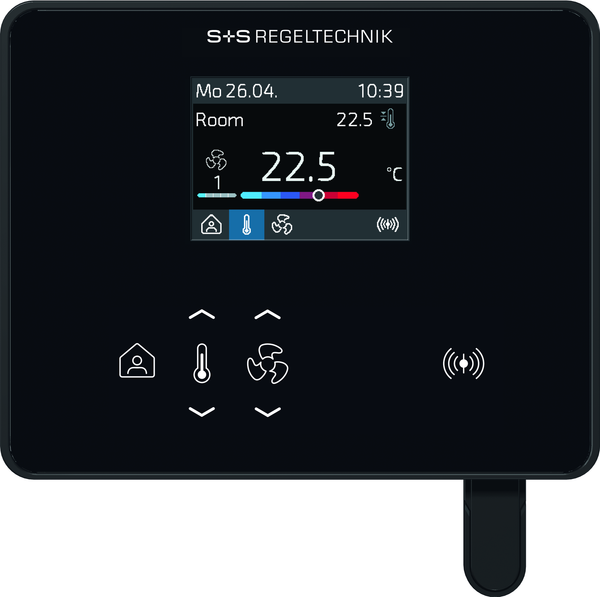

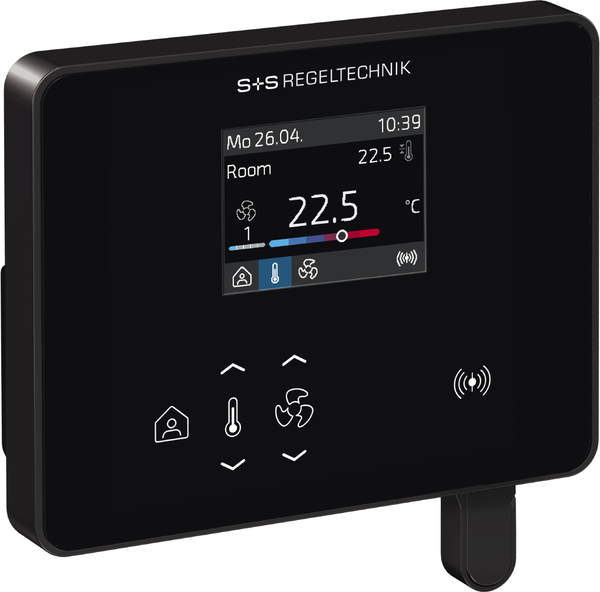

WIRELESS room operating unit (interface) RYMASKON® RYM 1402-RH-WMOD

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms, and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the diverse combination possibilities of the individual components.

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds), or lighting (with dimming function). The room control units provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the building management system (GLT). The optical display is implemented using a 2" TFT display, and operation is via capacitive buttons (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually condition the rooms.

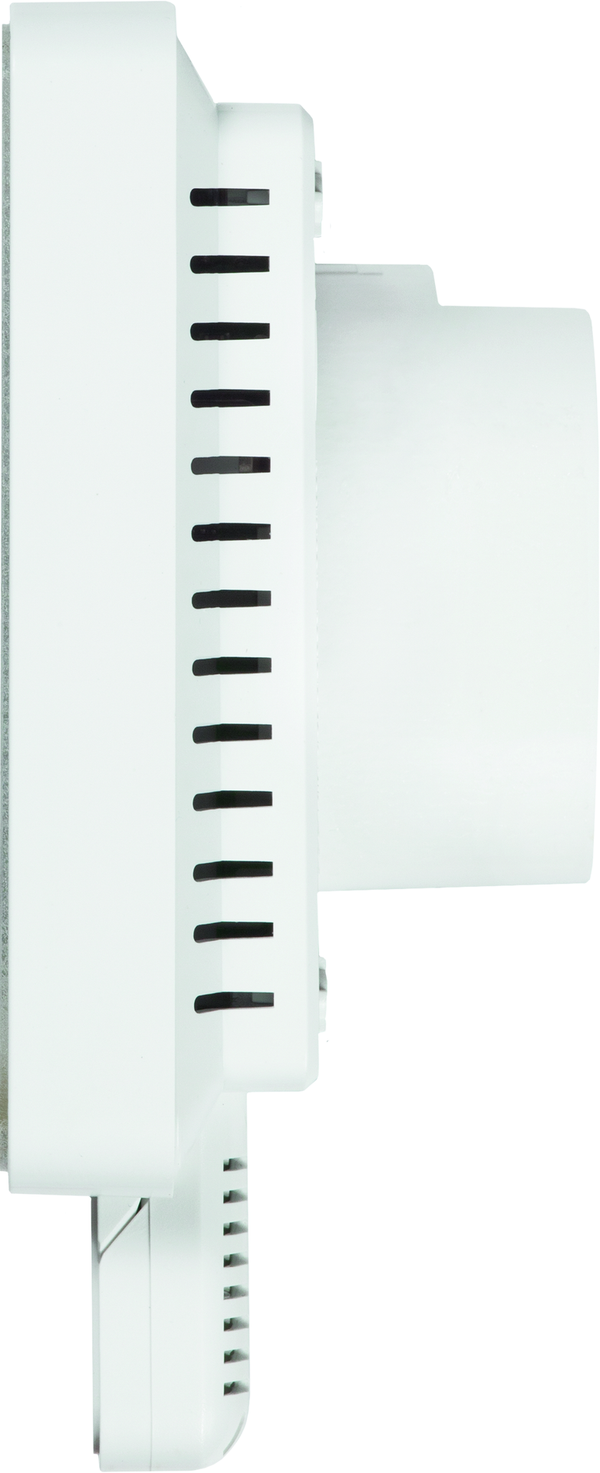

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounted boxes.
