Product description
- Luftqualität (VOC)
- 0...100 % Luftgüte; bezogen auf Kalibriergas;
Mehrbereichsumschaltung (über DIP-Schalterwählbar)
VOC-Sensibilität low, medium, high - 0-10V / 4...20mA , Wechsler
- IP65
- Einbaulänge: 11200 mm

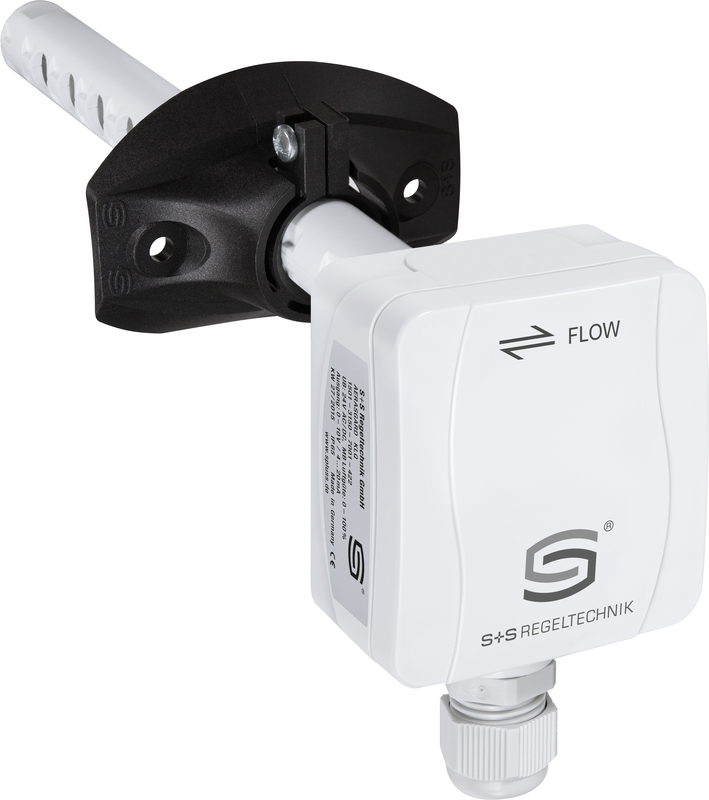

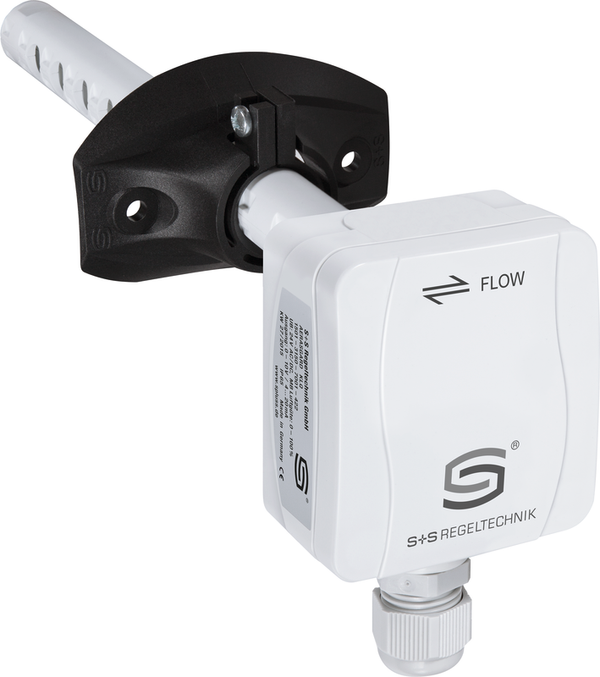

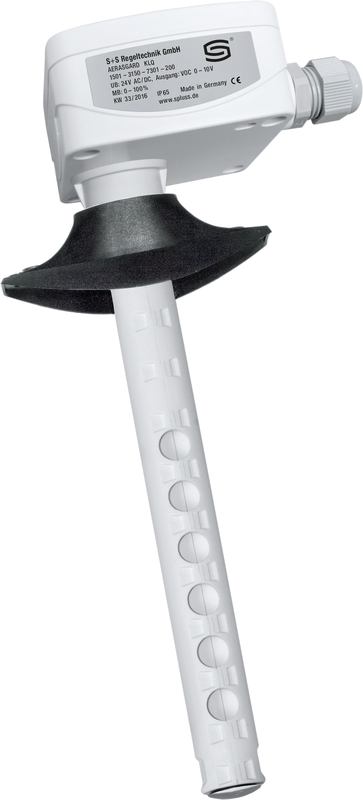

Patented quality product, patent no. DE 10 2014 010 719.1 (FLOW), DE 10 2015 015 941 B4 (AOS) Maintenance-free duct sensor AERASGARD® KLQ-AW with active/switching output, calibratable, in an impact-resistant plastic housing with quick-locking screws, incl. mounting flange, for determining the air quality (0...100 % VOC). The measuring transducer automatically detects the required output type (Automatic Output Switching) and converts the measured variables into a standard signal of 0 -10 V or 4...20 mA. The sensor is used in offices, hotels, conference rooms, apartments, stores etc. and is used to evaluate the room climate. This enables energy-saving, needs-based room ventilation and thus a reduction in operating costs and an increase in well-being. The air quality is measured using a VOC sensor (mixed gas sensor for volatile organic substances). This determines the pollution of the room air by contaminated gases such as cigarette smoke, body vapors, breathing air, solvent vapors, emissions, etc. A low (SLOW), medium (NORMAL) or high (FAST) VOC sensitivity can be set for the expected air contamination.
