Surface-mounted humidity and temperature sensors HYGRASGARD® AFTF-ECATP LCD

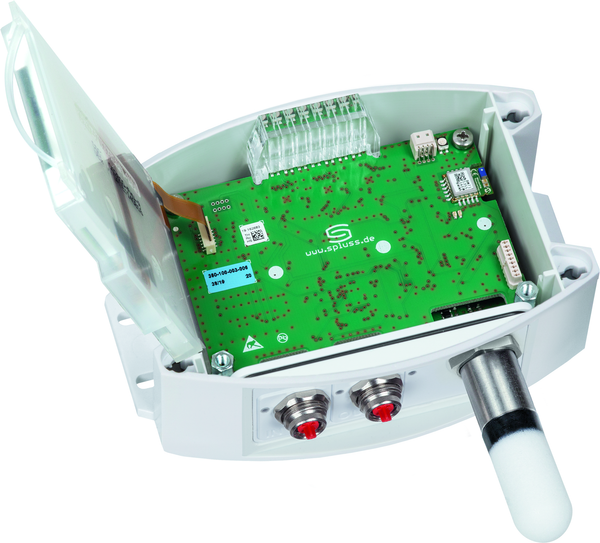

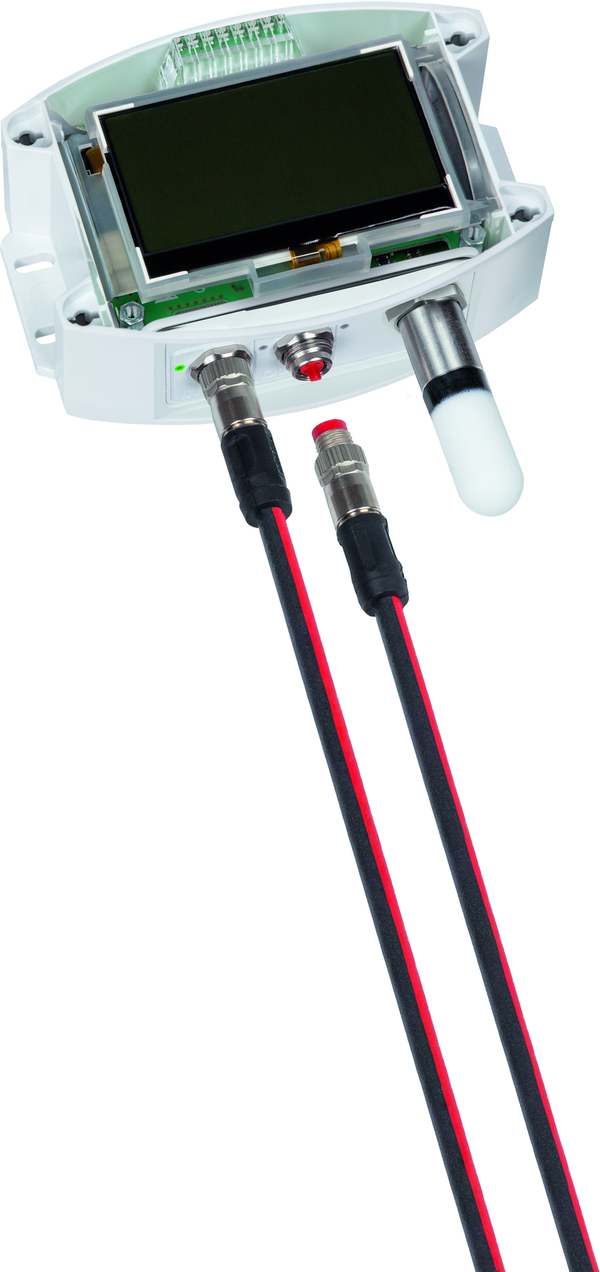

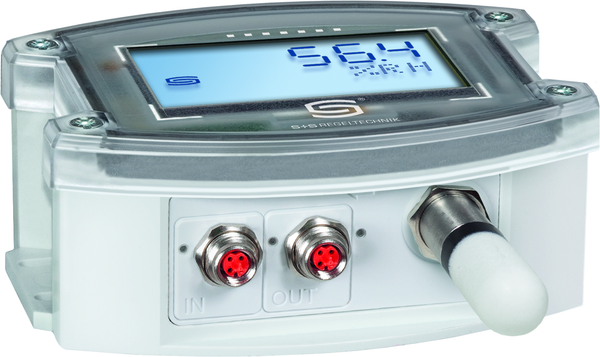

HYGRASGARD® networkable outdoor humidity and temperature transmitter AFTF - EtherCATP with M8 connectors (EtherCATP-coded), Bluetooth-capable, in an impact-resistant plastic housing with quick-release screws, optionally with/without display and bar graph, with plastic sintered filter (replaceable).

The sensor is used to determine various humidity measurement technology parameters. The following are measured relative humidity (0...100 % RH) and the temperature (- 35...+80 °C) of the ambient air. Further output variables are calculated internally from these measured variables: absolute humidity (0...80 g/m³), mixing ratio (0...80 g/kg), Dew point temperature (- 20...+80 °C) and enthalpy (0...85 kJ/kg), disregarding atmospheric pressure. A long-term stable, digital sensor guarantees exact measurement results. The sensor is calibrated at the factory.

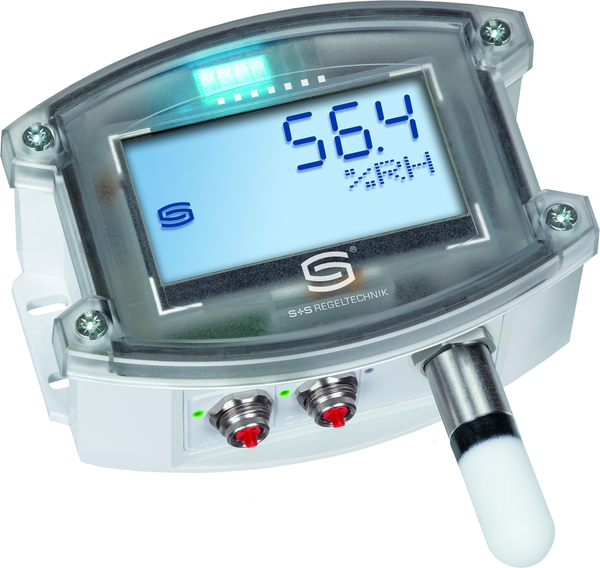

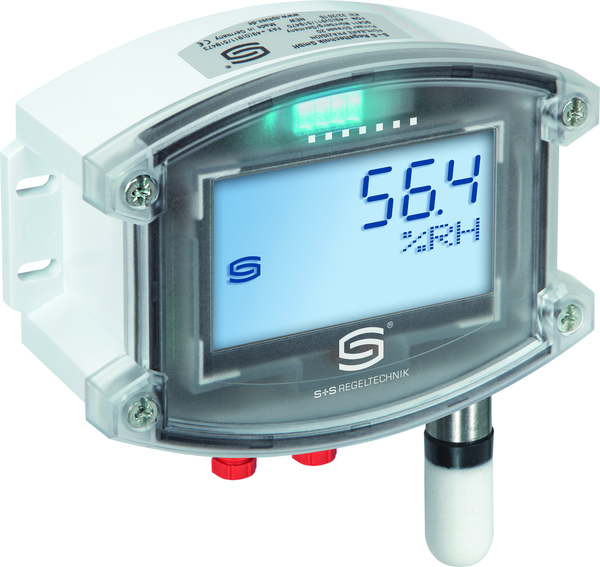

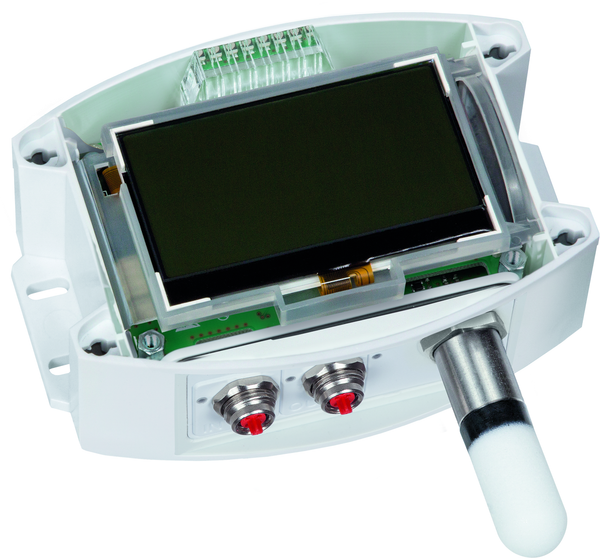

EtherCAT P-capable measuring transducer for industrial requirements with maximum reliability: simple integration into the PLC level via the ESI configuration file of the device, diagnostic options (such as communication error counter), extended setting options, retrievable historical data (min/max) and maintenance interval determination of the sensor. Optionally with large illuminated display (three lines, individually programmable in the 7-segment and dot-matrix area) and bargraph (seven digits, LEDs freely configurable) for graphical representation, e.g. as a traffic light display.
