%RH

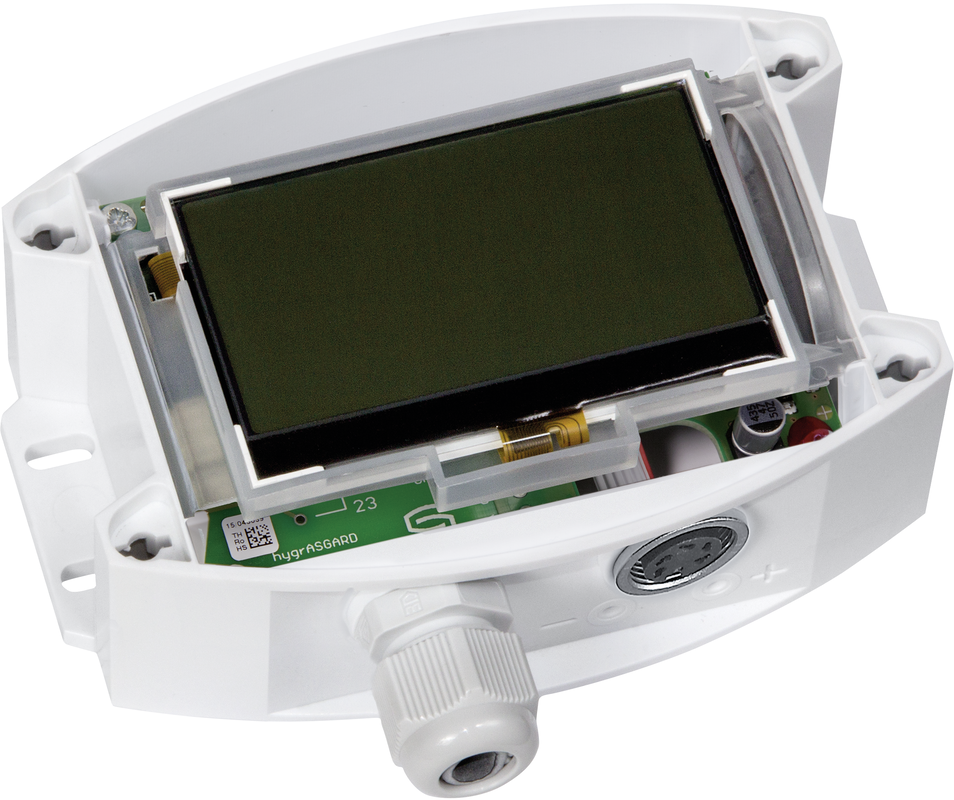

Surface-mounted humidity and temperature sensors HYGRASGARD® AFF-25-I LCD

SKU 1201-7132-0400-101 EAN 4 251325 611488 Product group: WG02
In stock , available in 1-3 working days
Shipping calculated at checkout.
$506.52
$506.52

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • 0...100 % RH
  • typically ± 1.8 % (10...90 % RH) at +25 °C, otherwise ± 2.0 %
  • relative humidity [% RH]
  • 4...20 mA
  • IP 65

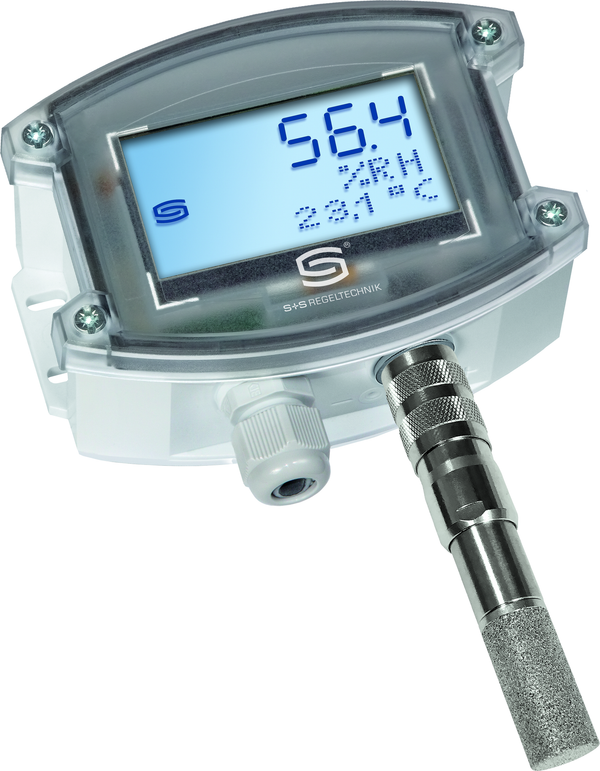

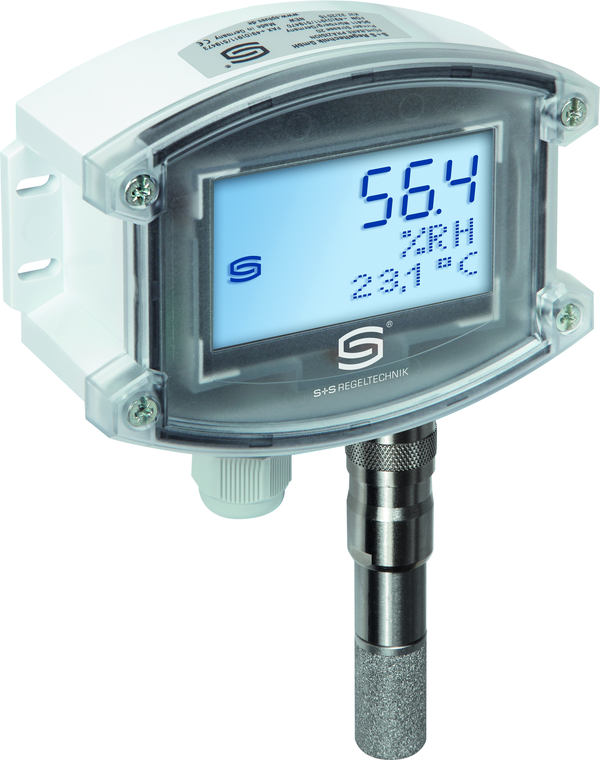

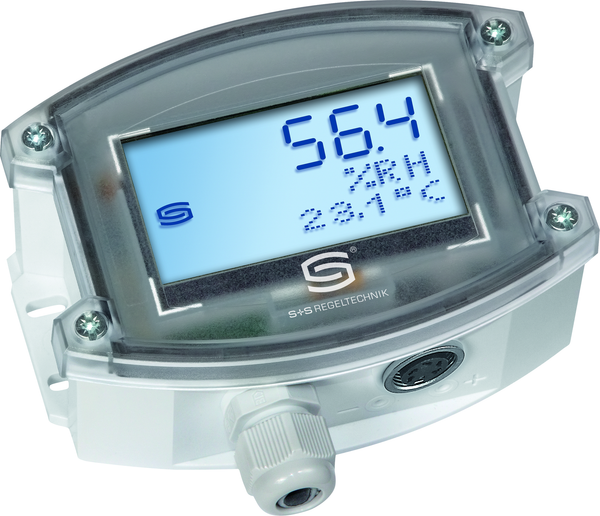

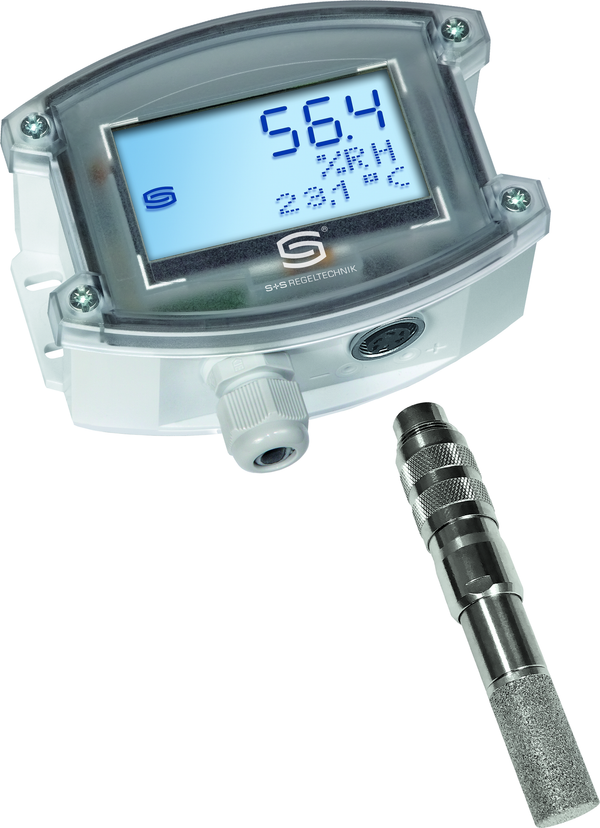

Calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF-25 / AFTF-25 (± 1.8 %) with plug-in measuring head, metal sinter filter, housing made of impact-resistant plastic with quick-release screws, optionally with/without display, with cable gland (optional M12 plug connector in accordance with DIN EN 610762101).


The devices measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. They have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and
clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.

Technical data

Measurement relative humidity
Output 4..20 mA
Display Yes
Output variant cable gland
Measurement size in addition to °C + %RH none
Measuring range 0...100 % RH
Equipment metal sinter filter | replaceable measuring head
Output 4...20 mA
Sensor tolerance for humidity 1.8 %
