°C
%RH

Surface-mounted humidity and temperature sensors HYGRASGARD® AFTF-25-I LCD

SKU 1201-7132-1400-101 EAN 4 251325 611501 Product group: WG02
In stock , available in 1-3 working days
Shipping calculated at checkout.
$533.51
$533.51

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • −35...+35 / −35...+75 / 0...+50 / 0...+80 °C
    0...100 % RH
  • typically ±1.8 % (10...90 % RH) at +25 °C; otherwise ±2.0 %
  • Temperature [°C], relative humidity [% RH]
  • 4...20 mA
  • IP 65

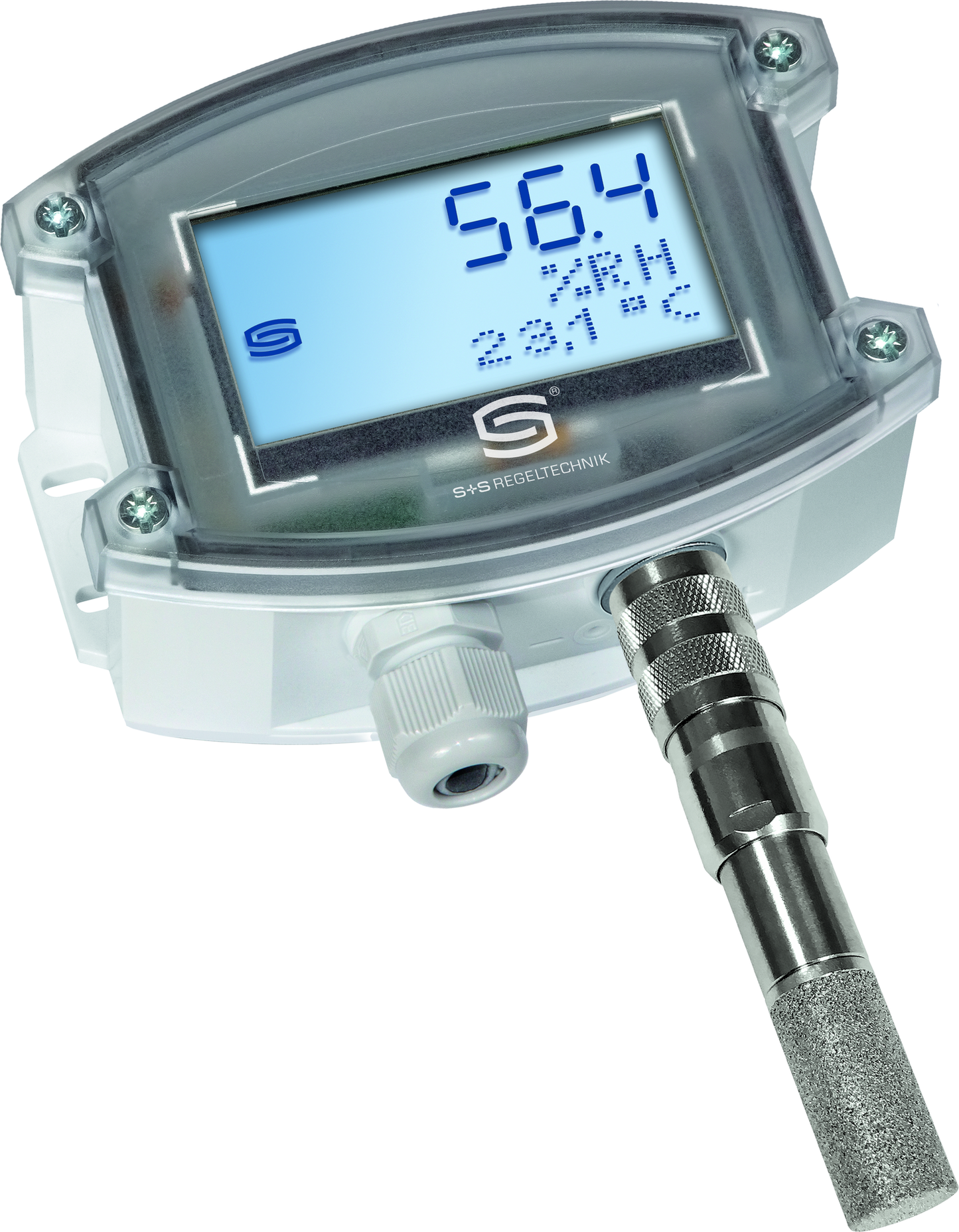

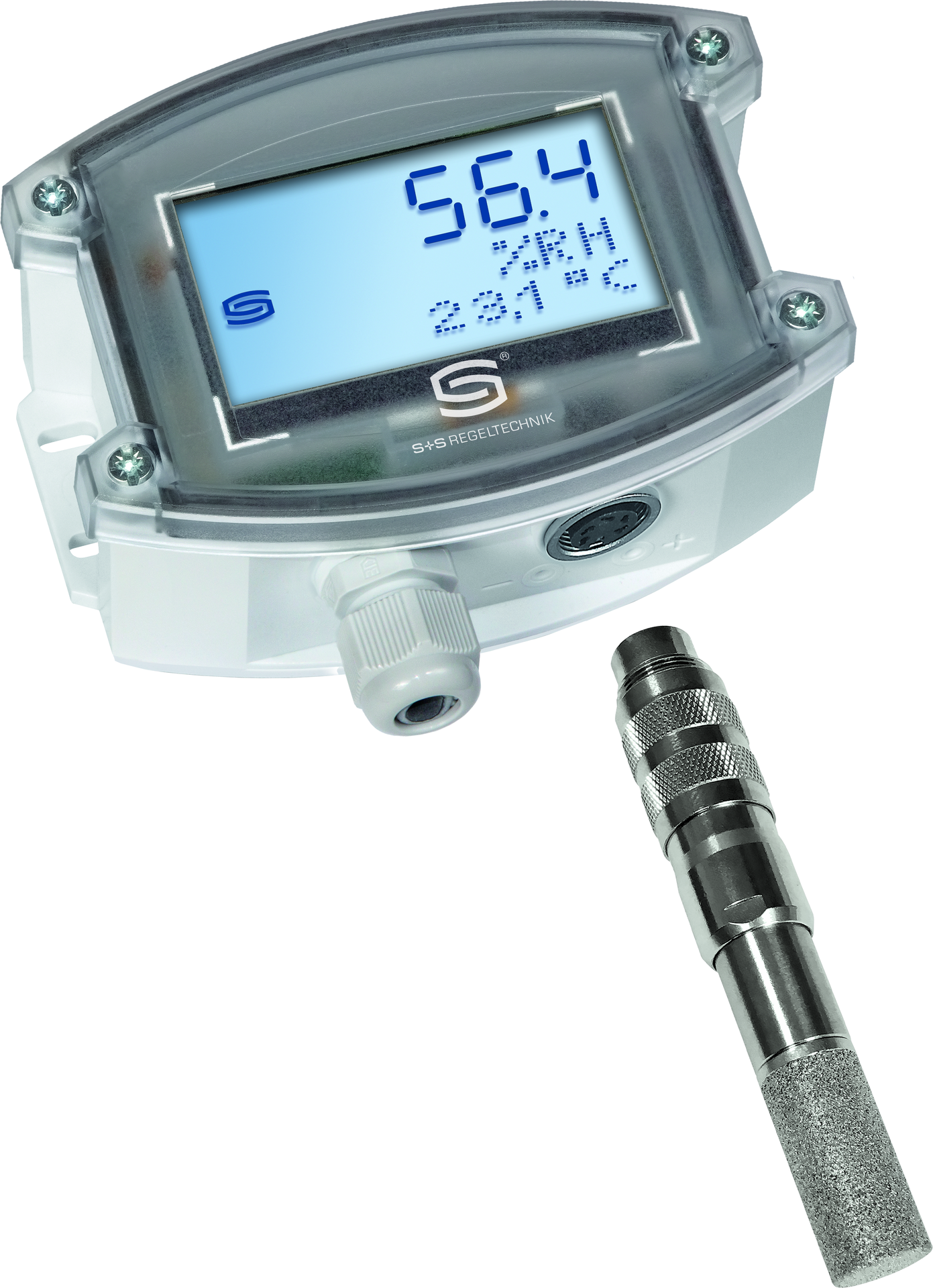

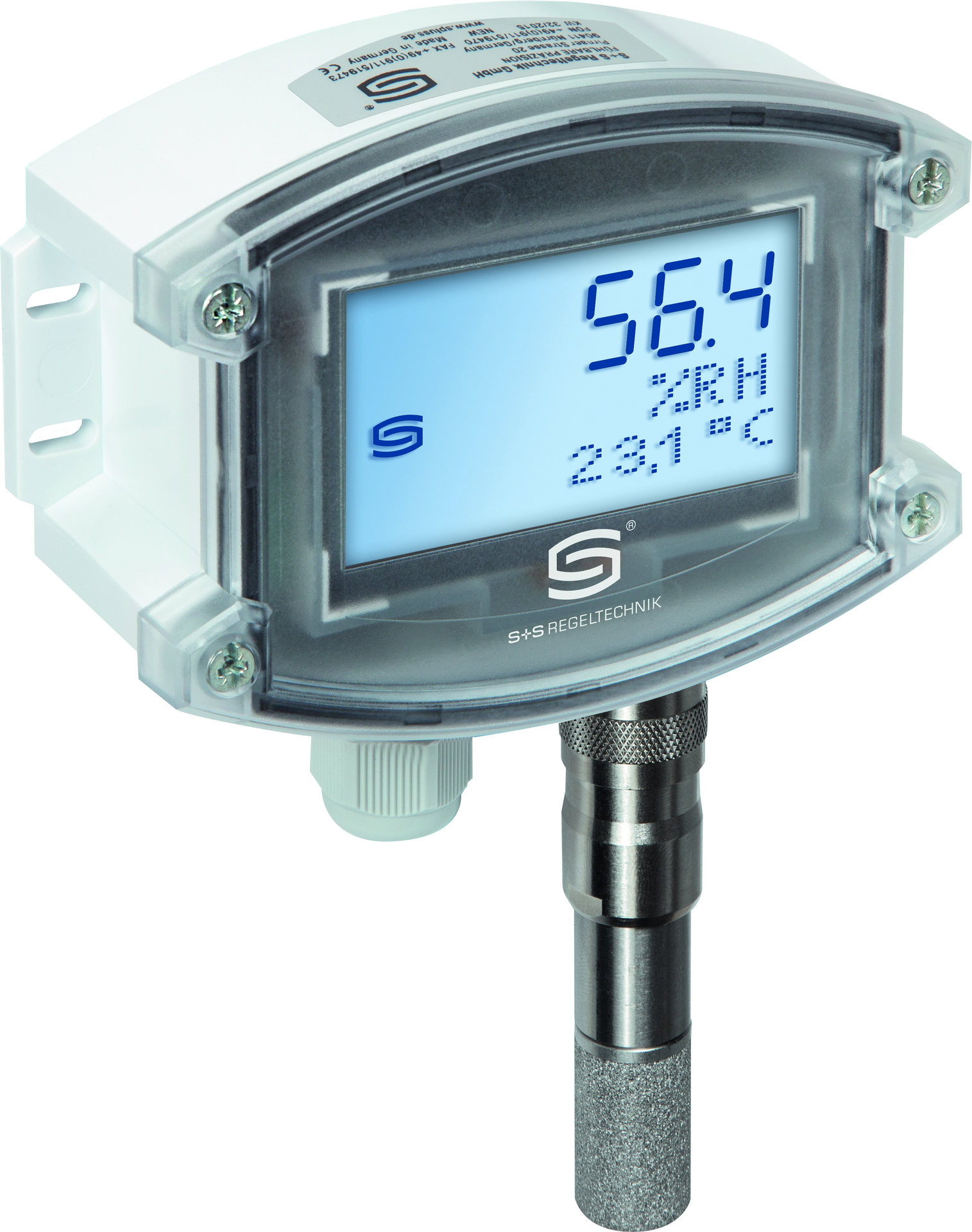

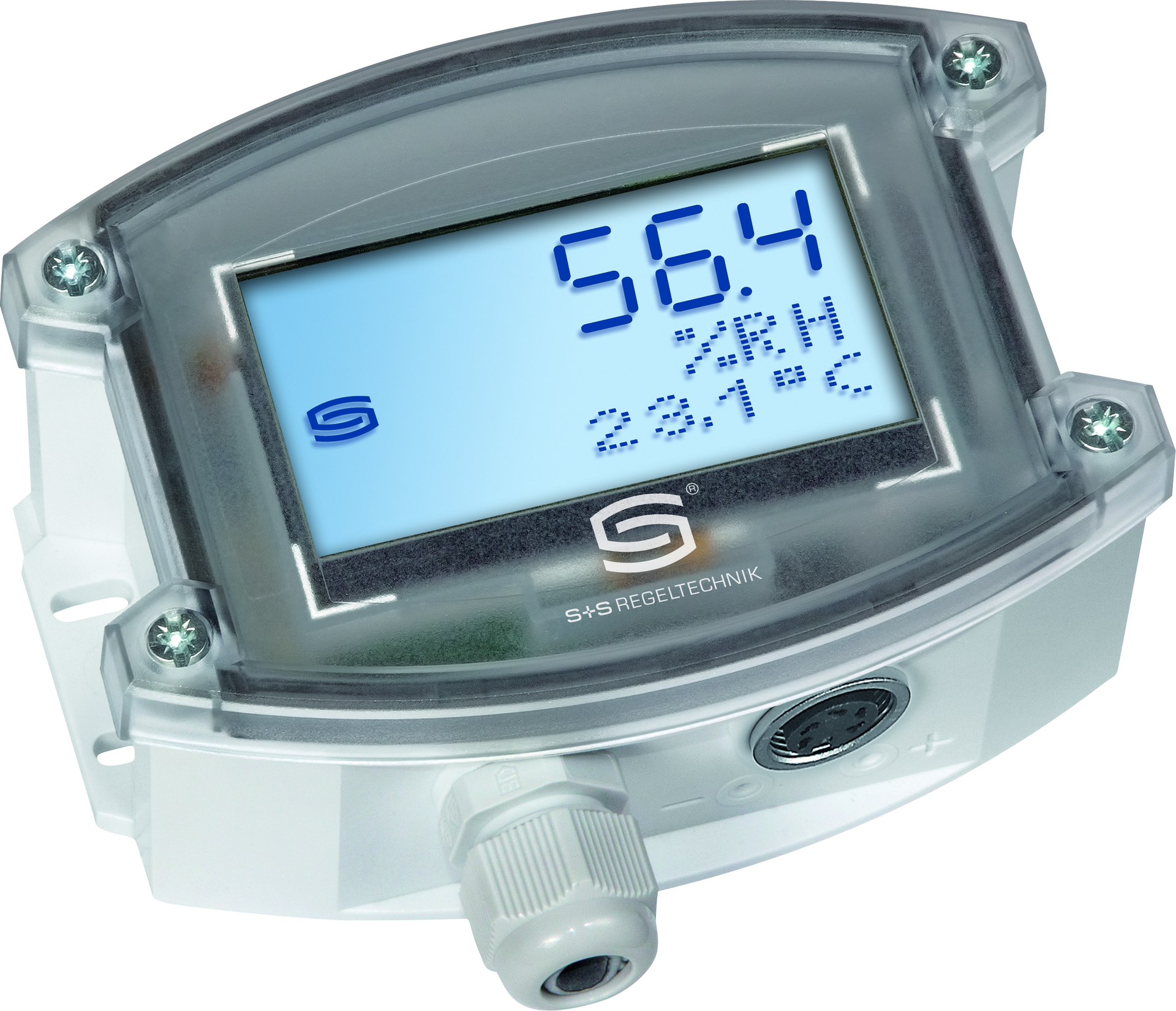

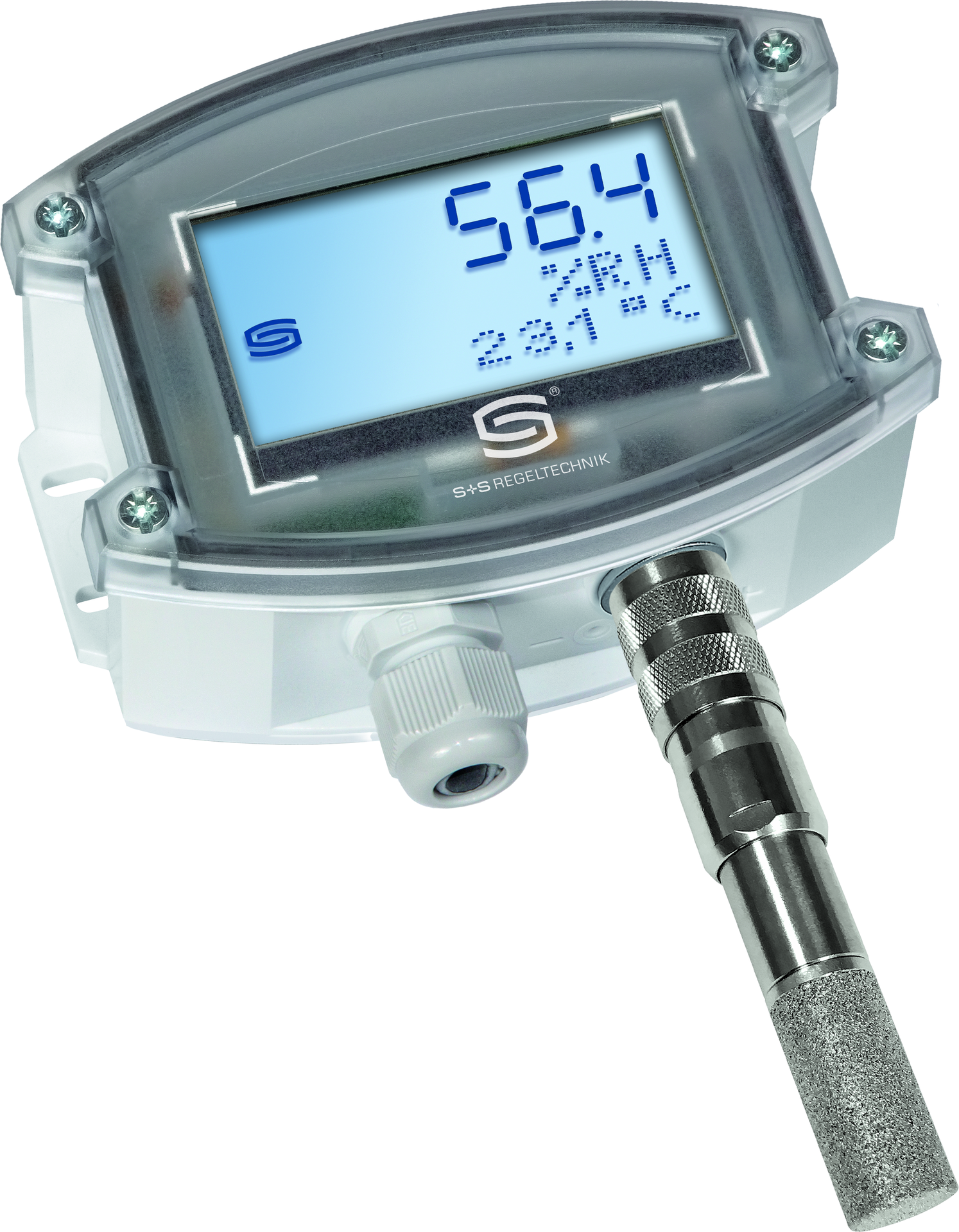

Calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF-25 / AFTF-25 (± 1.8 %) with plug-in measuring head, metal sinter filter, housing made of impact-resistant plastic with quick-release screws, optionally with/without display, with cable gland (optional M12 plug connector in accordance with DIN EN 610762101).


The devices measure the relative humidity and/or temperature of the air and convert the measured variable into a standard signal of 0-10 V or 4...20 mA. They have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and
clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.

Technical data

Measurement Temperature, relative humidity
Output 4..20 mA
Display Yes
Output version Cable gland
Measurement quantity in addition to °C + % RH + °C
Equipment Sintered filter, metal | interchangeable measuring head
Output 4...20 mA
Humidity sensor tolerance 1.8 %
