°C

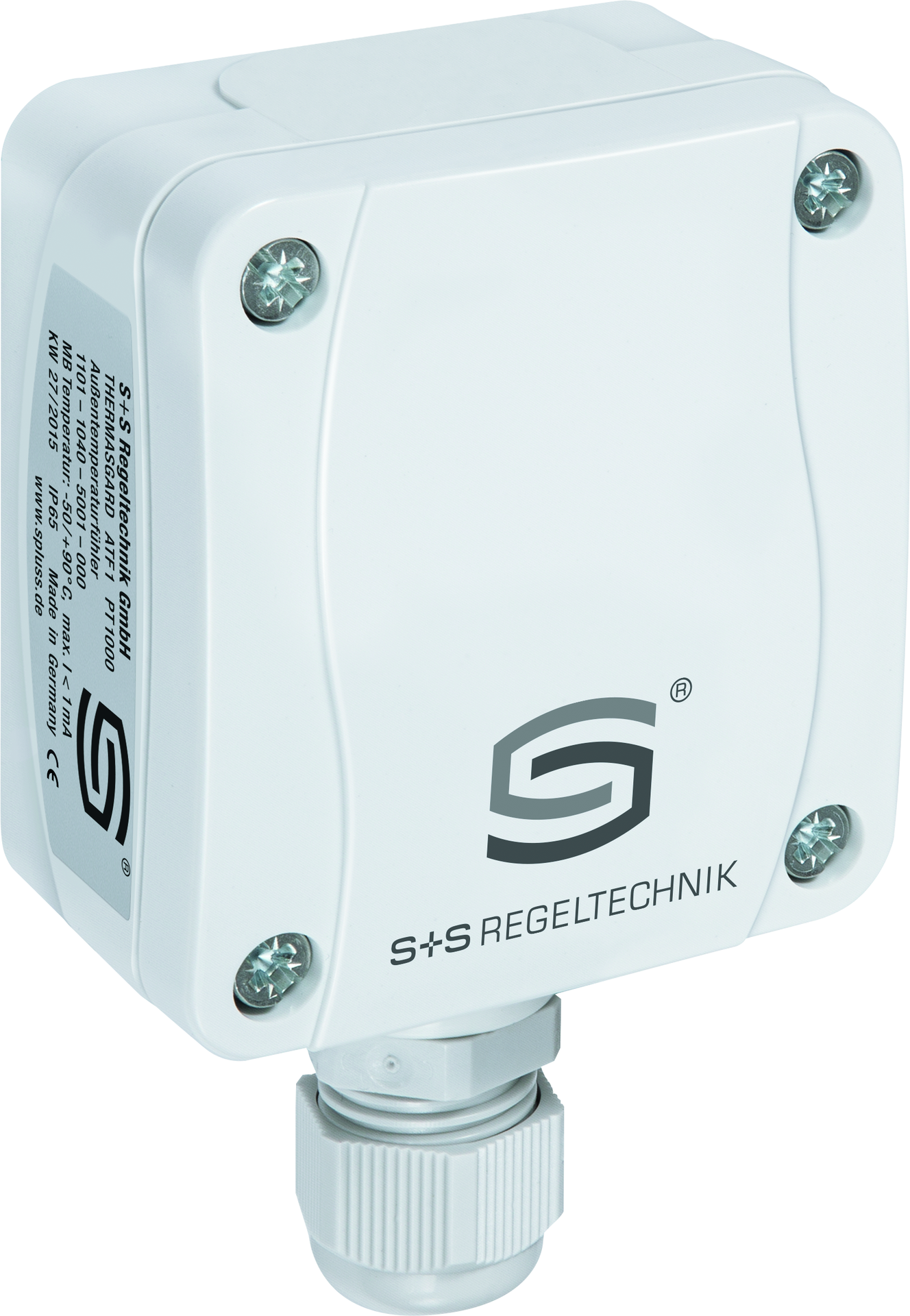

Witterungsfühler im Aufputzgehäuse

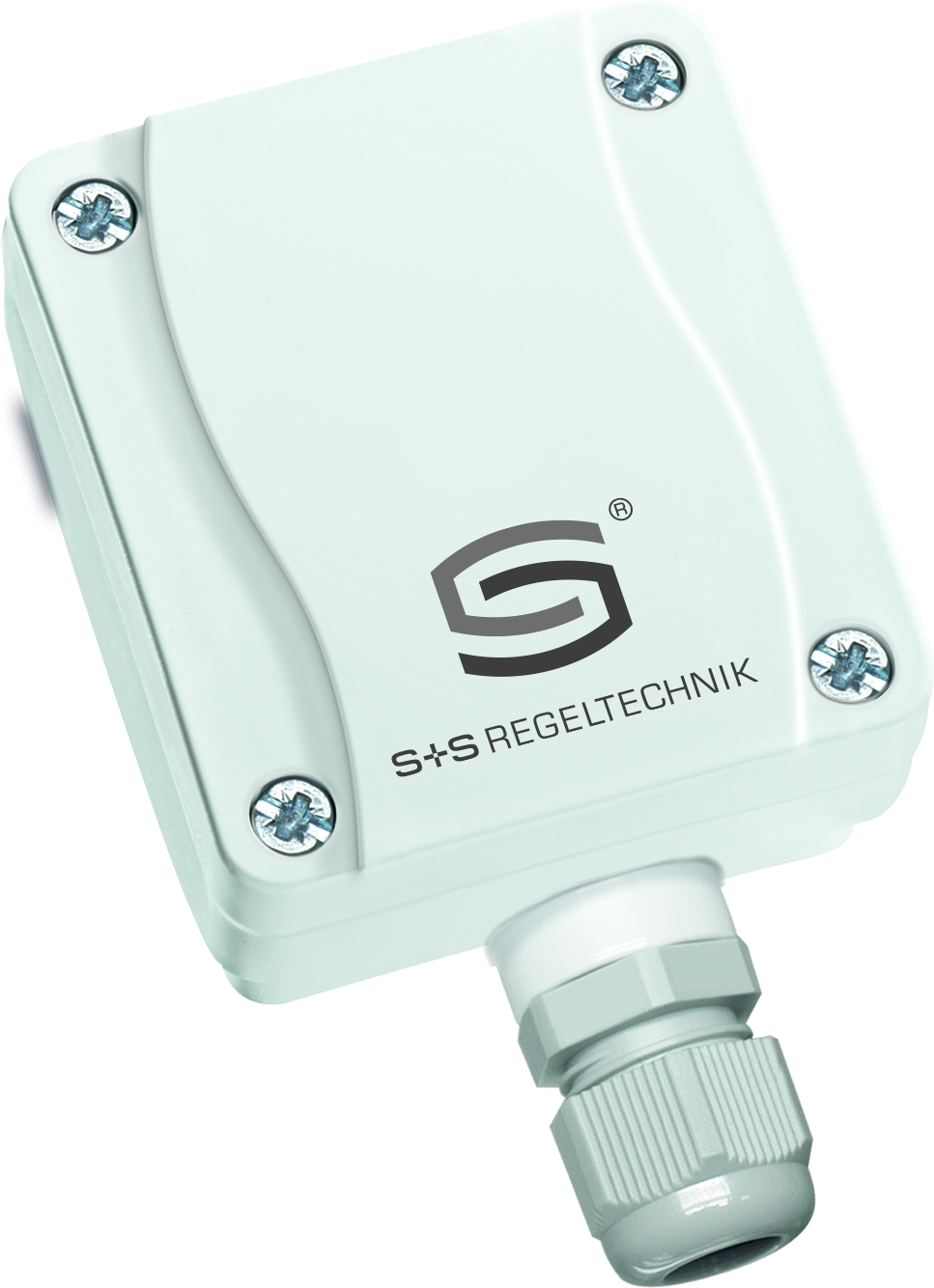

Temperaturfühler im Aufputzgehäuse

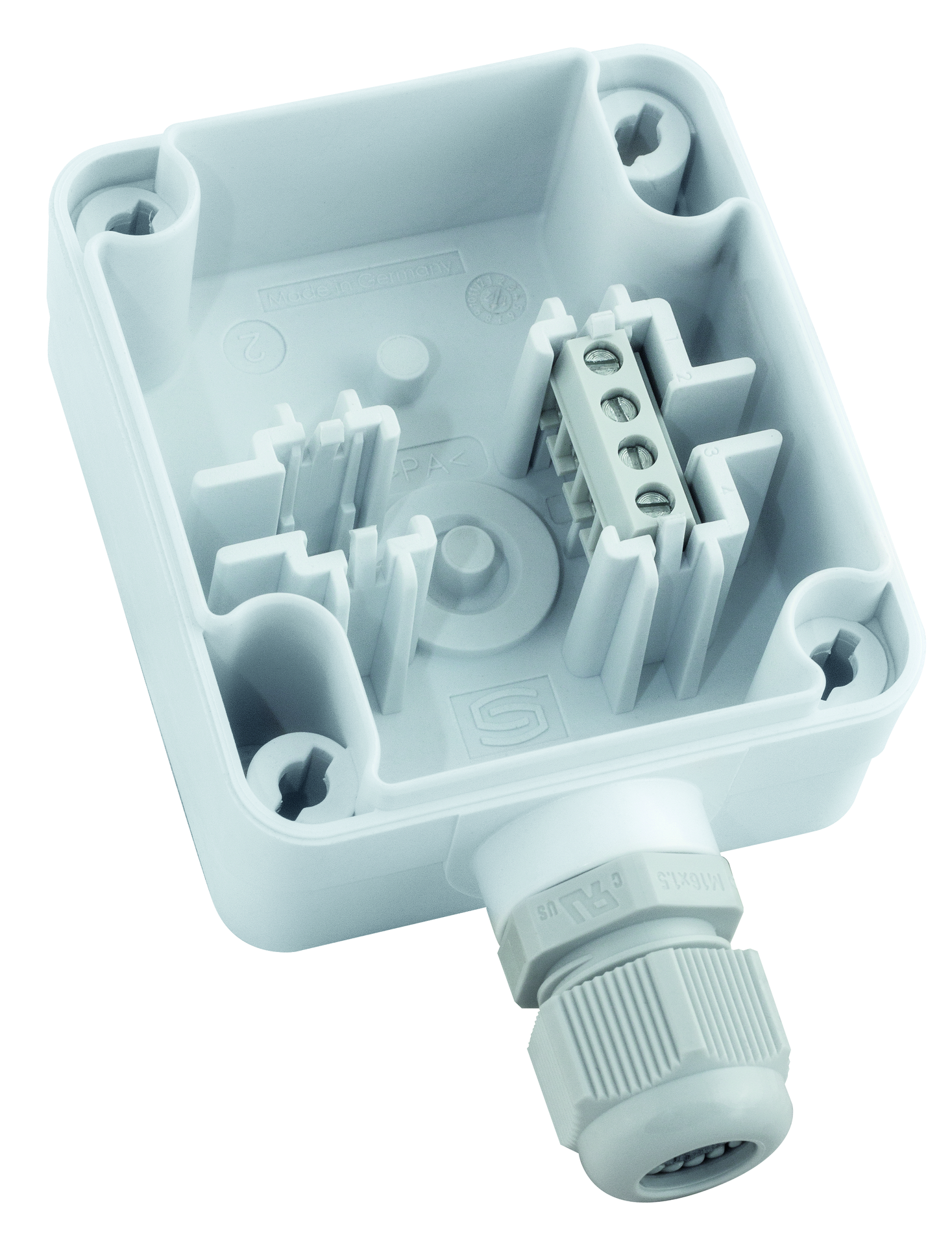

Geöffneter Temperaturfühler mit Anschlussklemmen

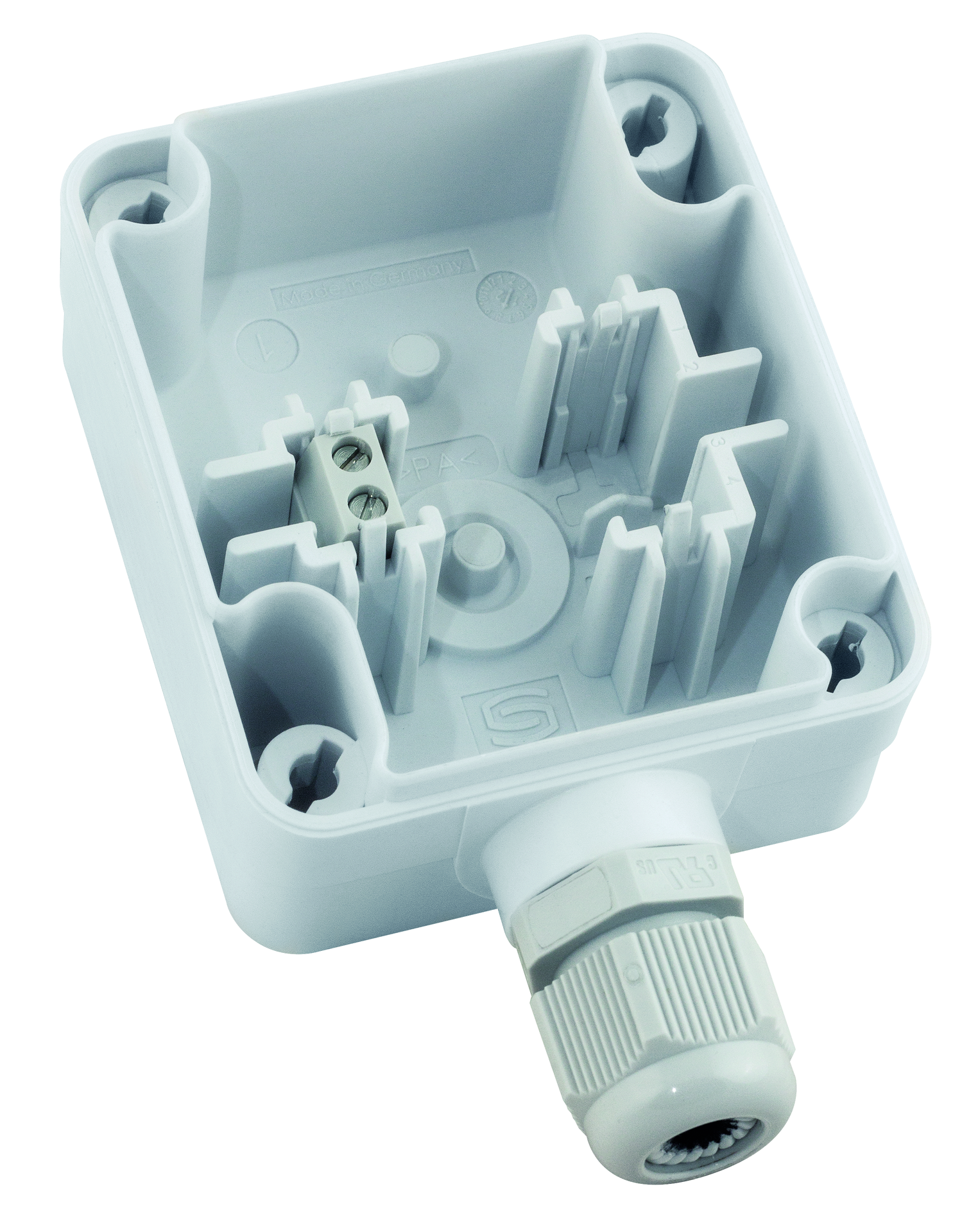

Geöffneter Fühler im Anschlussgehäuse

Outdoor temperature sensor / humid room temperature sensor THERMASGARD® ATF1 Pt1000A

SKU 1101-1040-6003-000 EAN 4 251325 600284 Product group: WG03
In stock , available in 1-3 working days
Shipping calculated at checkout.
$29.56
$29.56

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • Passive
  • –50...+90 °C
  • 4-wire connection
  • IP65, IP67
External wall resistance thermometer/ weather sensor THERMASGARD® ATF 1 (internal sensor) with passive output, with housing made of impact-resistant plastic and quick-locking screws. External wall resistance thermometer/ weather sensor THERMASGARD® ATF 01 (internal sensor) with passive output, with housing made of impact-resistant plastic and snap-on cover.



It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.

Technical data

Sensor PT1000A
Function type Measurement temperature
Measured variables Temperature, passive temperature
Display No
IP protection class IP67
Output variant Cable gland
Housing Tyr 1
Measuring range –50...+90 °C
