AOS signal
Outdoor temperature / humid room temperature transducer

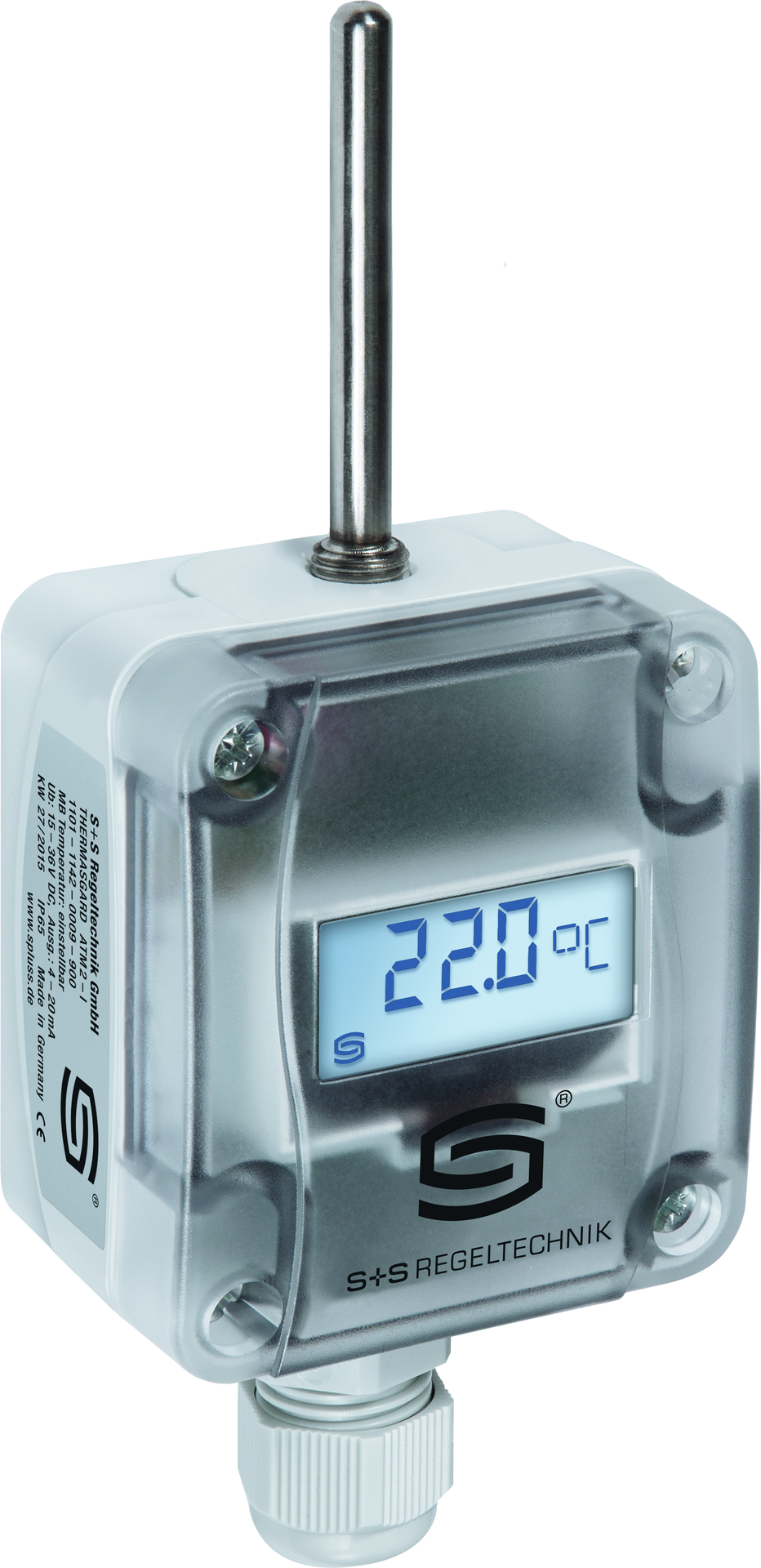

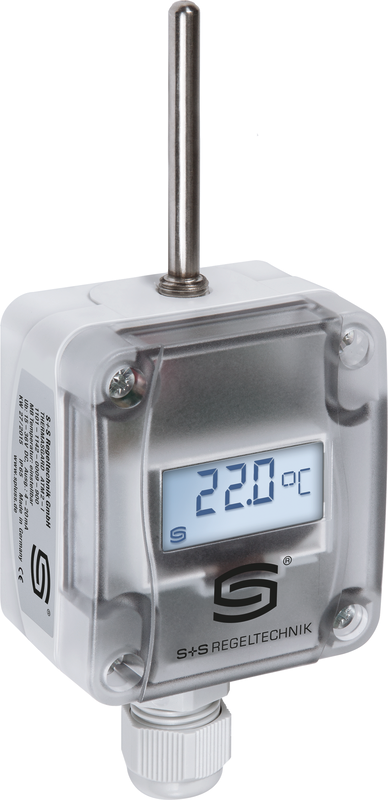

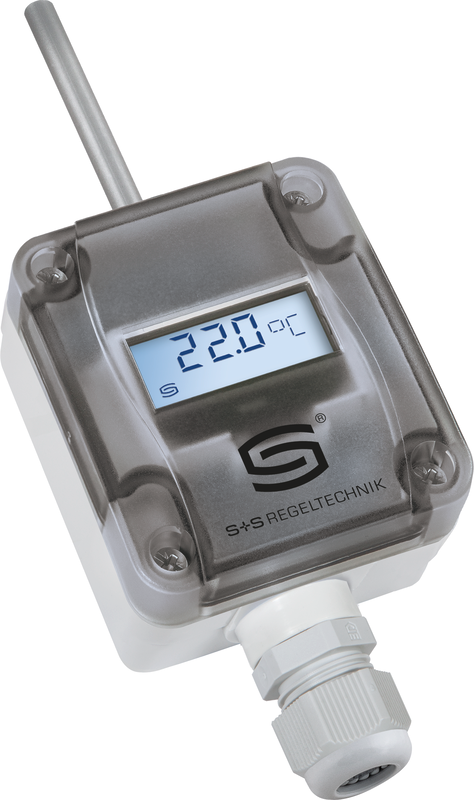

THERMASGARD® ATM2-A LCD

SKU 1101-114E-2009-900 Product group: WG01
In stock , available in 1-3 working days
Regular price $183.31
Regular price Sale price $183.31

Product description

  • - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
  • typically ± 0.2 K at +25 °C
  • AOS - automatic 0 -10 V/ 4...20 mA
  • Cable gland
  • IP65
Calibratable outdoor temperature transmitter THERMASGARD® ATM 2 with eight switchable measuring ranges, external sensor, continuous output, housing made of impact-resistant plastic with quick-locking screws, optional with/without displaywith cable gland or M12 plug connector according to DIN EN 61076-2-101.

It is used to record the outdoor temperature, the temperature in humid areas, e.g. for mounting on external walls, in cold stores and greenhouses, in industrial areas and in agriculture. In outdoor areas, the temperature transmitter is preferably installed on the north side or in a protected location. In direct sunlight, the sun and ball impact protection WS 01 or WS 04 (accessory) or the device variant with mounted sunshade SS 02 (on request).

The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
