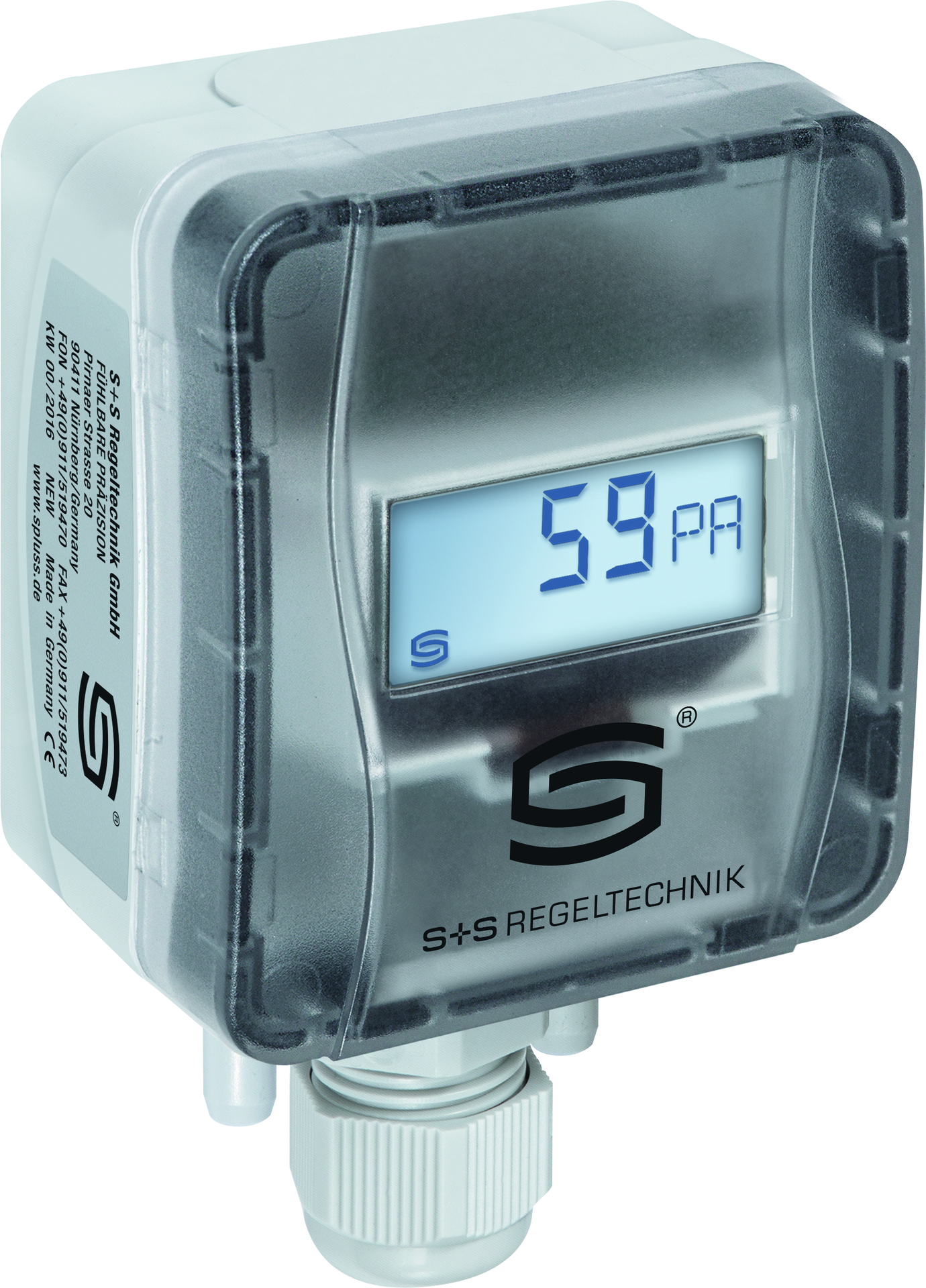

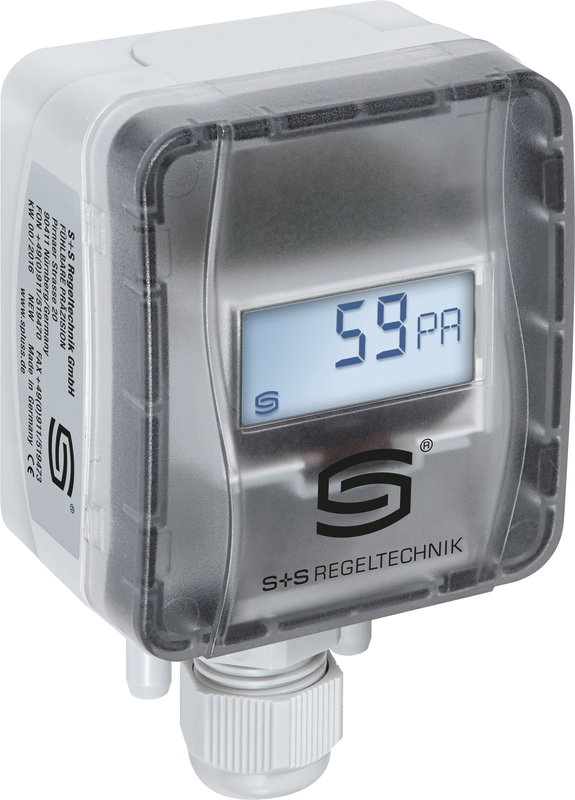

Druck- Differenzdruck- und Volumenstrommessumformer PREMASGARD 2120-SD LCD, mit LCD-Anzeige - S+S Regeltechnik

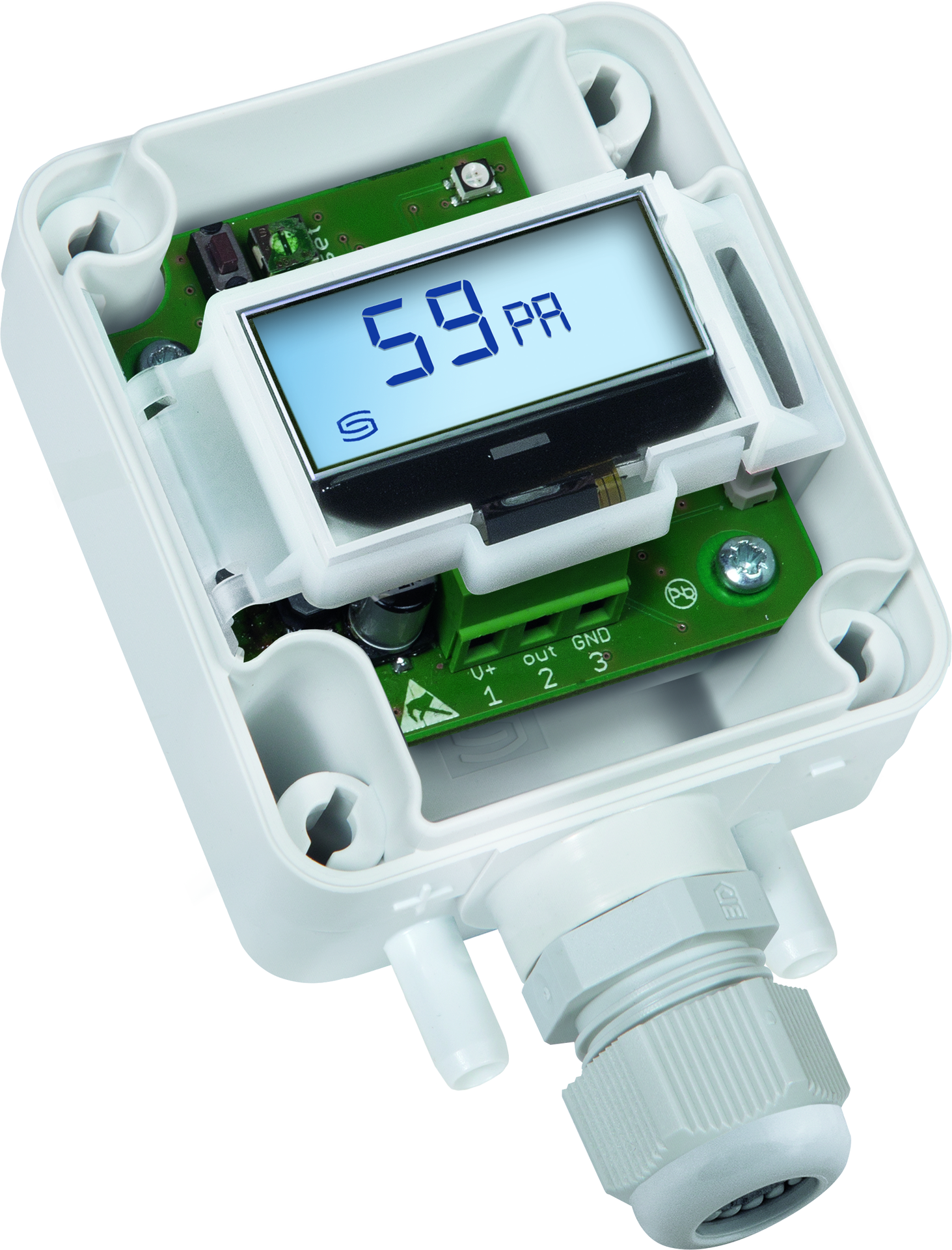

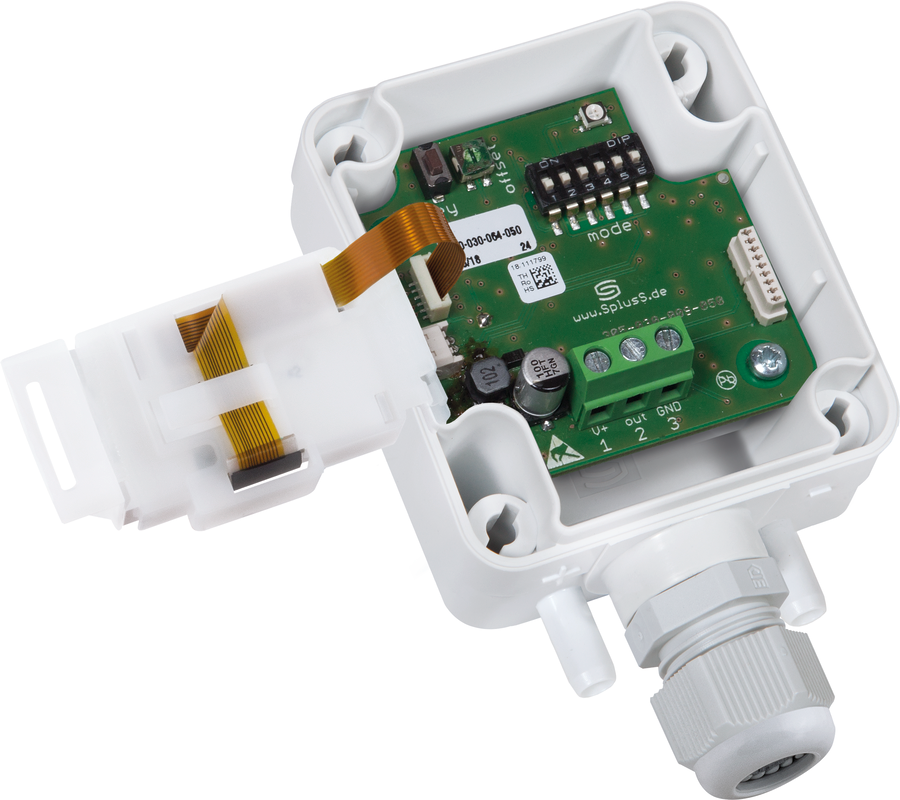

PREMASGARD 2120-SD LCD, mit geöffneter Abdeckung - S+S Regeltechnik

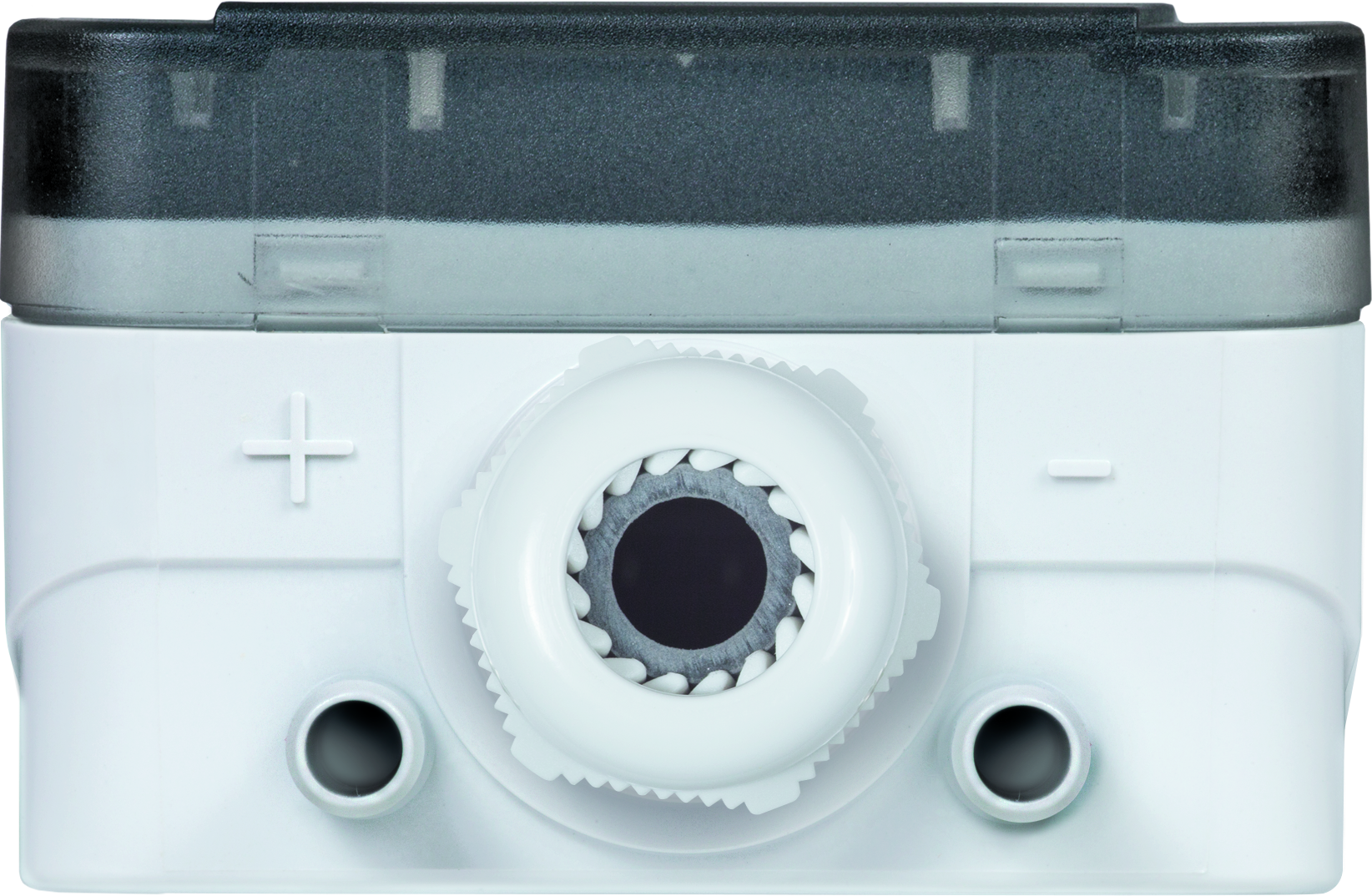

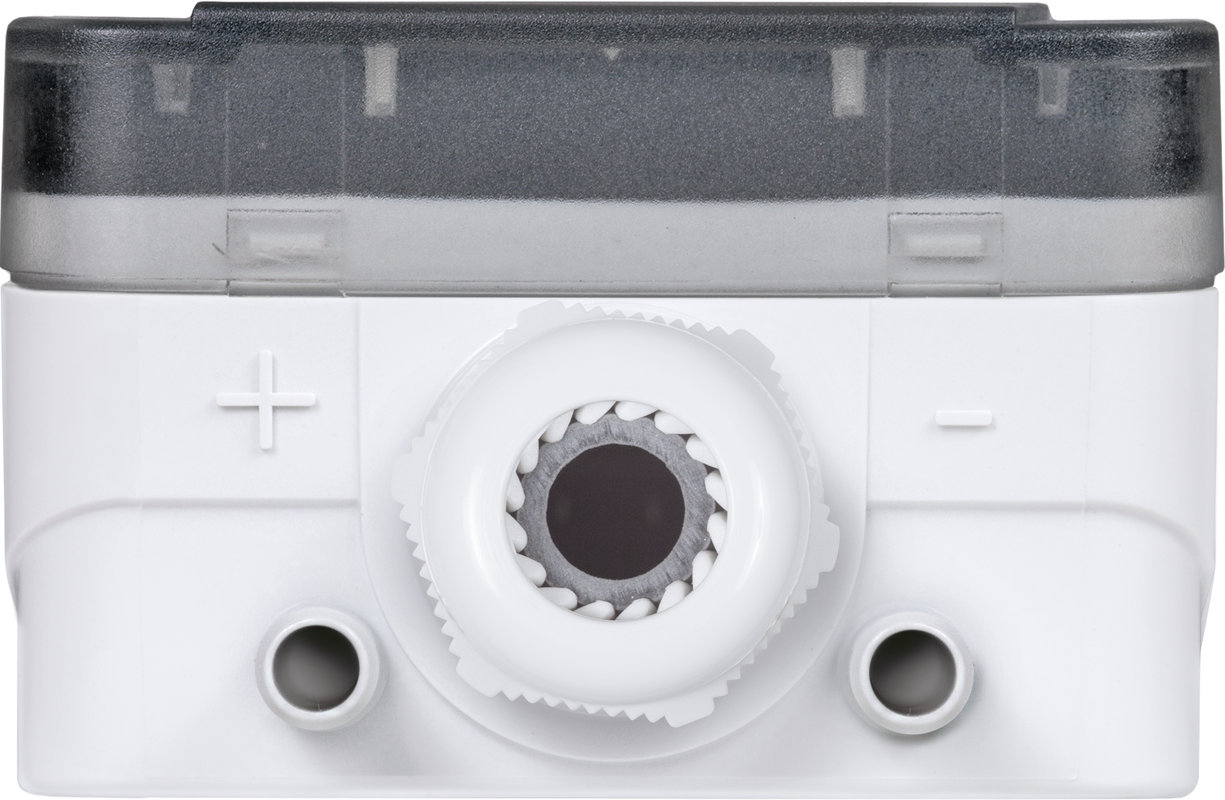

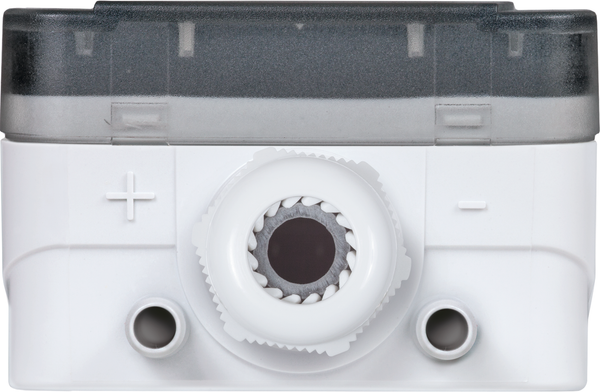

PREMASGARD 2120-SD LCD, Anschlussseite des Geräts - S+S Regeltechnik

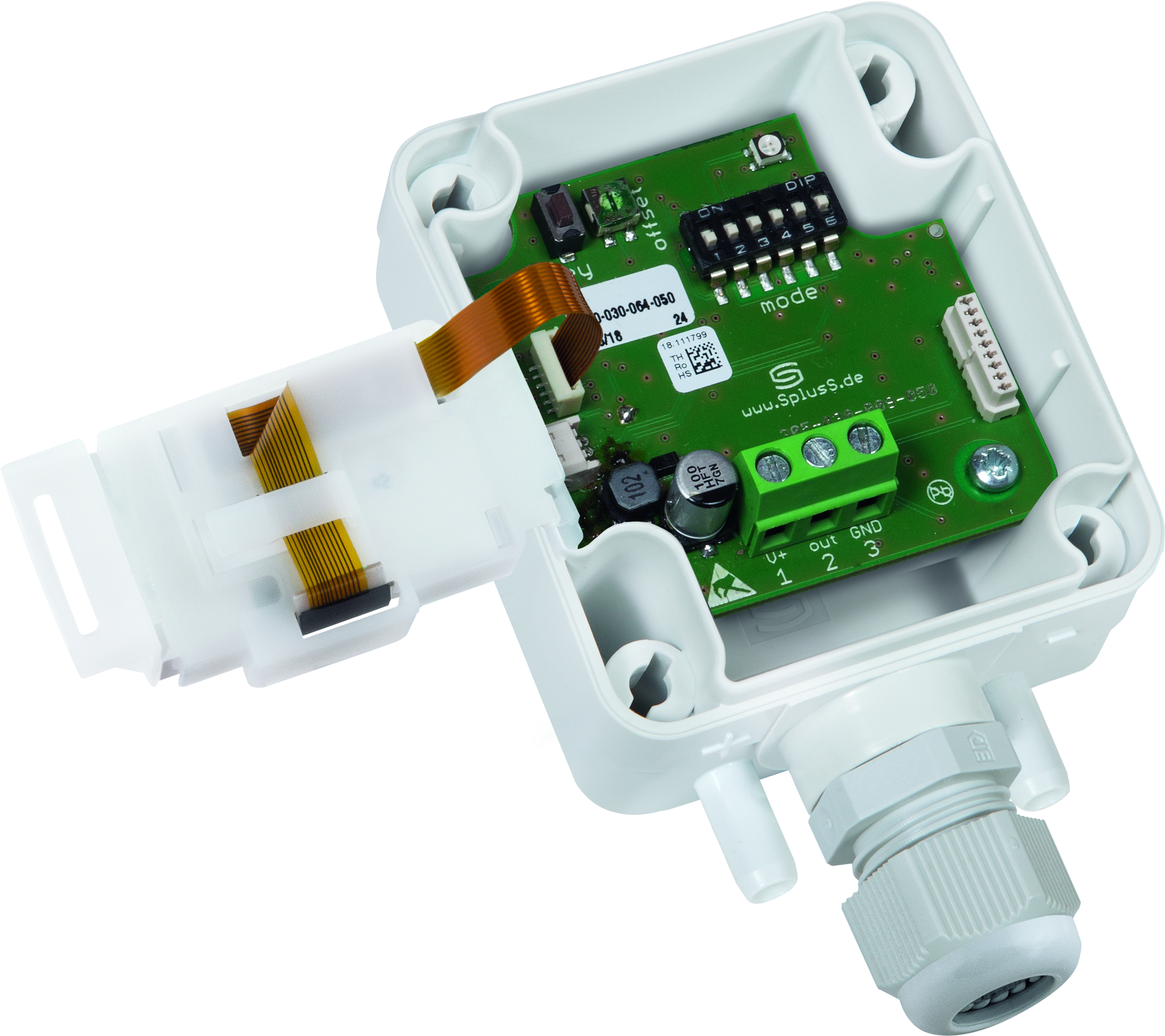

PREMASGARD 2120-SD LCD, mit geöffneter Abdeckung - S+S Regeltechnik

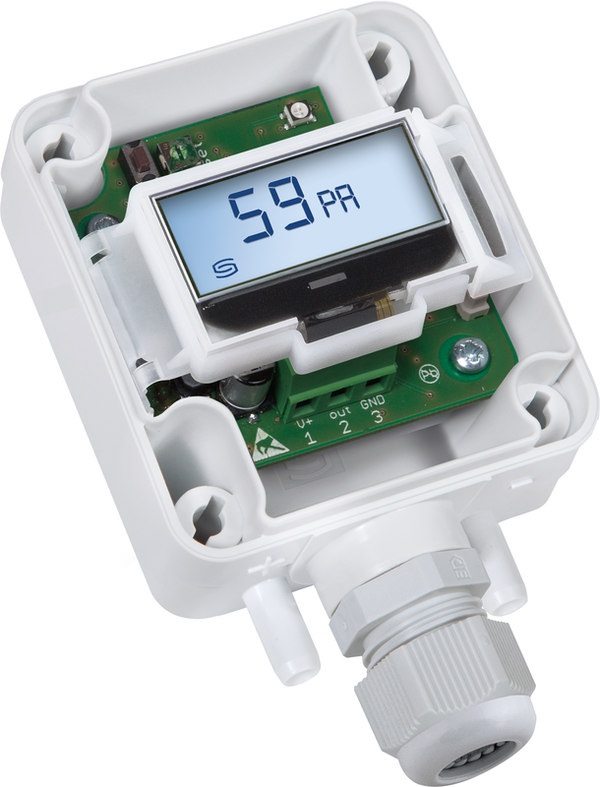

PREMASGARD 2120-SD LCD, mit geöffneter Abdeckung und LCD-Anzeige - S+S Regeltechnik

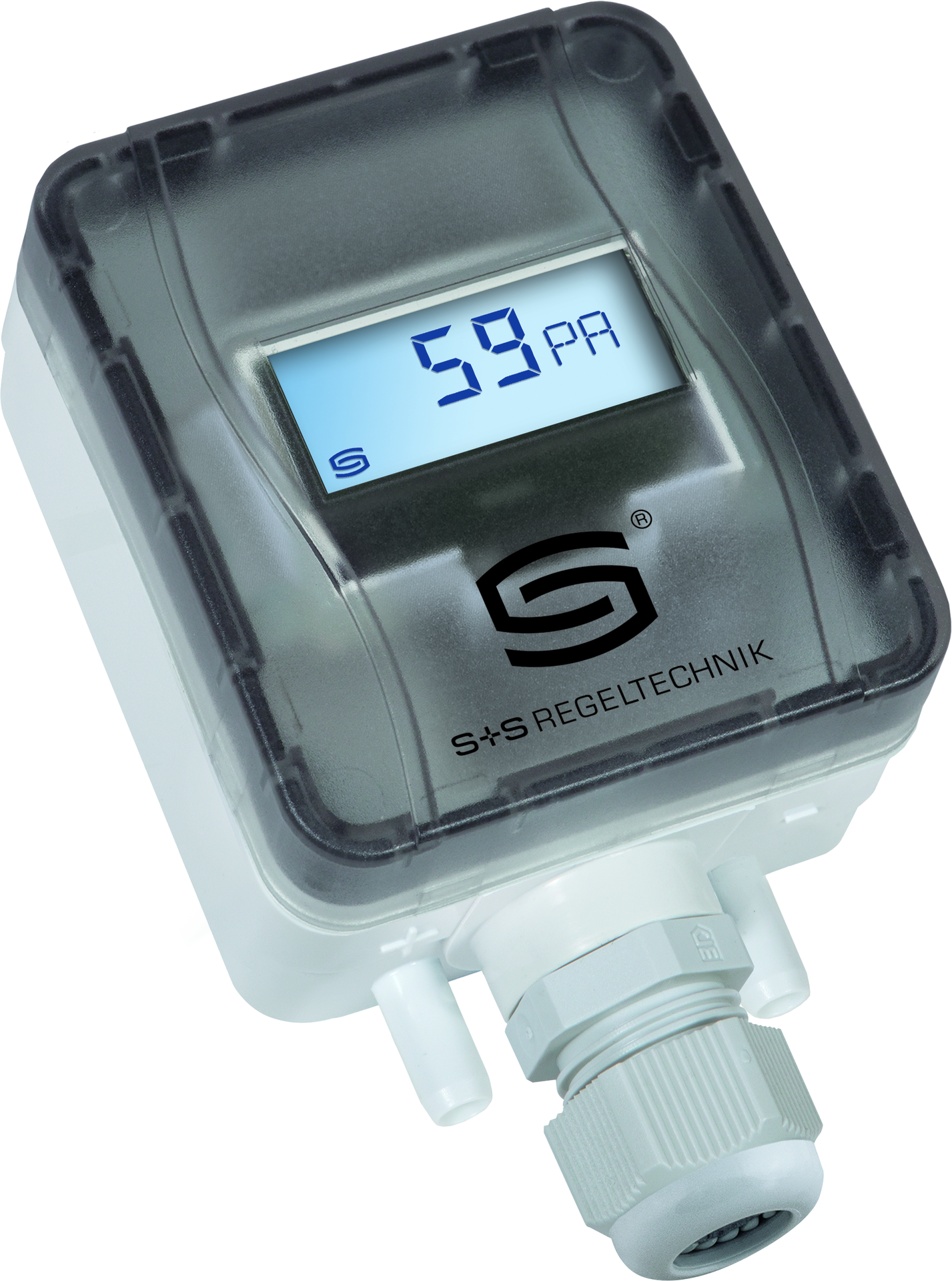

PREMASGARD 2120-SD LCD, mit LCD-Anzeige - S+S Regeltechnik
Pressure-Differential pressure and volume flow transducer

PREMASGARD 2120-SD LCD

SKU 1301-11B7-2110-000 EAN 4251325623535 Product group: WG01B
In stock , available in 1-3 working days
Regular price $224.01
Regular price Sale price $224.01

Product description

  • ±100Pa
  • Accuracy: ± 3 Pa
  • 0-10V / 4..20mA
  • IP54
  • square root output signal adjustable
The calibratable, compact pressure sensors in the PREMASGARD® 212x - SD are equipped with 8 switchable measuring ranges, 2 switchable output signals (16 devices in one) and an optional display and are used to measure positive, negative or differential pressures and air volume flows.


The piezoresistive measuring element is temperature-compensated and guarantees high reliability and accuracy. The pressure transmitters have a button for manual zero point adjustment and an adjustable offset. The pressure sensors are used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths and commercial kitchens, for filter monitoring and level measurement or for controlling frequency converters. The measuring media of the pressure transducers are clean air (non-condensing) or gaseous, non-aggressive, non-flammable media. The differential pressure sensors are supplied incl. connection set ASD-06 (2 m connection hose, two pressure connection nipples, screws).

Blog posts

Kanalfühler im Fokus – So steigern Sie Energieeffizienz und Betriebssicherheit

Focus on duct sensors - how to increase energy ...

In modern HVAC systems, the precise detection of humidity and temperature in the ventilation duct...

Focus on duct sensors - how to increase energy ...

In modern HVAC systems, the precise detection of humidity and temperature in the ventilation duct...

Druck im System? So behalten Sie Temperatur & Feuchte im Griff!

Pressure in the system? How to keep temperature...

Made for extreme conditions - HYGRASGARD® humidity and temperature sensors - specially developed for use...

Pressure in the system? How to keep temperature...

Made for extreme conditions - HYGRASGARD® humidity and temperature sensors - specially developed ...

Kurz erklärt: RYMASKON® – Interface vs. Controller

Briefly explained: Rymaskon® - Interface vs. Co...

For modern building automation, we offer you a variety of room operating devices that can...

Briefly explained: Rymaskon® - Interface vs. Co...

For modern building automation, we offer you a variety of room operating devices that can optimiz...

Der All-in-One Controller.

The all-in-one controller.

With a controller from the RYMASKON® series, you have a digital room controller that can...

The all-in-one controller.

With a controller from the RYMASKON® series, you have a digital room controller that can do more ...

Auf die Halt(er)ung kommt es an!

It depends on the stop!

Whether in ventilation channels or directly on the ventilation device-the KMW-F 450mm bracket offers a...

It depends on the stop!

Whether in ventilation channels or directly on the ventilation device-the KMW-F 450mm bracket off...

W-Modbus – die Revolution in der Gebäudeautomation!

W-Modbus - the revolution in building automation!

W-Modbus is a wireless solution for building automation that is characterized by simple installation, long...

W-Modbus - the revolution in building automation!

W-Modbus is a wireless solution for building automation that is characterized by simple installat...

Jetzt Verfügbar: Die neuen Rymaskon Raumbediengeräte

Now available: The new Rymaskon room operating ...

Our best room sensor on the marketThe new RYMASKON room operating units are now in...

Now available: The new Rymaskon room operating ...

Our best room sensor on the marketThe new RYMASKON room operating units are now in stock and avai...

Wir freuen uns, Ihnen unsere neuste Innovation von S+S vorstellen zu dürfen: Das verbesserte LCD-SHD Display-Modul!

We are pleased to present our latest innovation...

This display module revolutionizes the pressure measurement of gases and liquids by converting signals to...

We are pleased to present our latest innovation...

This display module revolutionizes the pressure measurement of gases and liquids by converting si...

BIM/ CAD/ 3D Daten auf Knopfdruck

BIM/ CAD/ 3D data at the touch of a button

S+S offers qualified CAD data for all devices, which you can download easily, quickly and...

BIM/ CAD/ 3D data at the touch of a button

S+S offers qualified CAD data for all devices, which you can download easily, quickly and free of...

Doppeldrucksensor PREMASGARD® 722x mit zwei Druckzellen

PREMASGARD® 722x dual pressure sensor with two ...

Our PREMASGARD® 722x dual pressure sensor is used to measure pressure, differential pressure and volume...

PREMASGARD® 722x dual pressure sensor with two ...

Our PREMASGARD® 722x dual pressure sensor is used to measure pressure, differential pressure and ...

Accessories

2 Anschlussnippel ASD-07 - S+S Regeltechnik

ASD-07

Regular price $9.24
Regular price Sale price $9.24

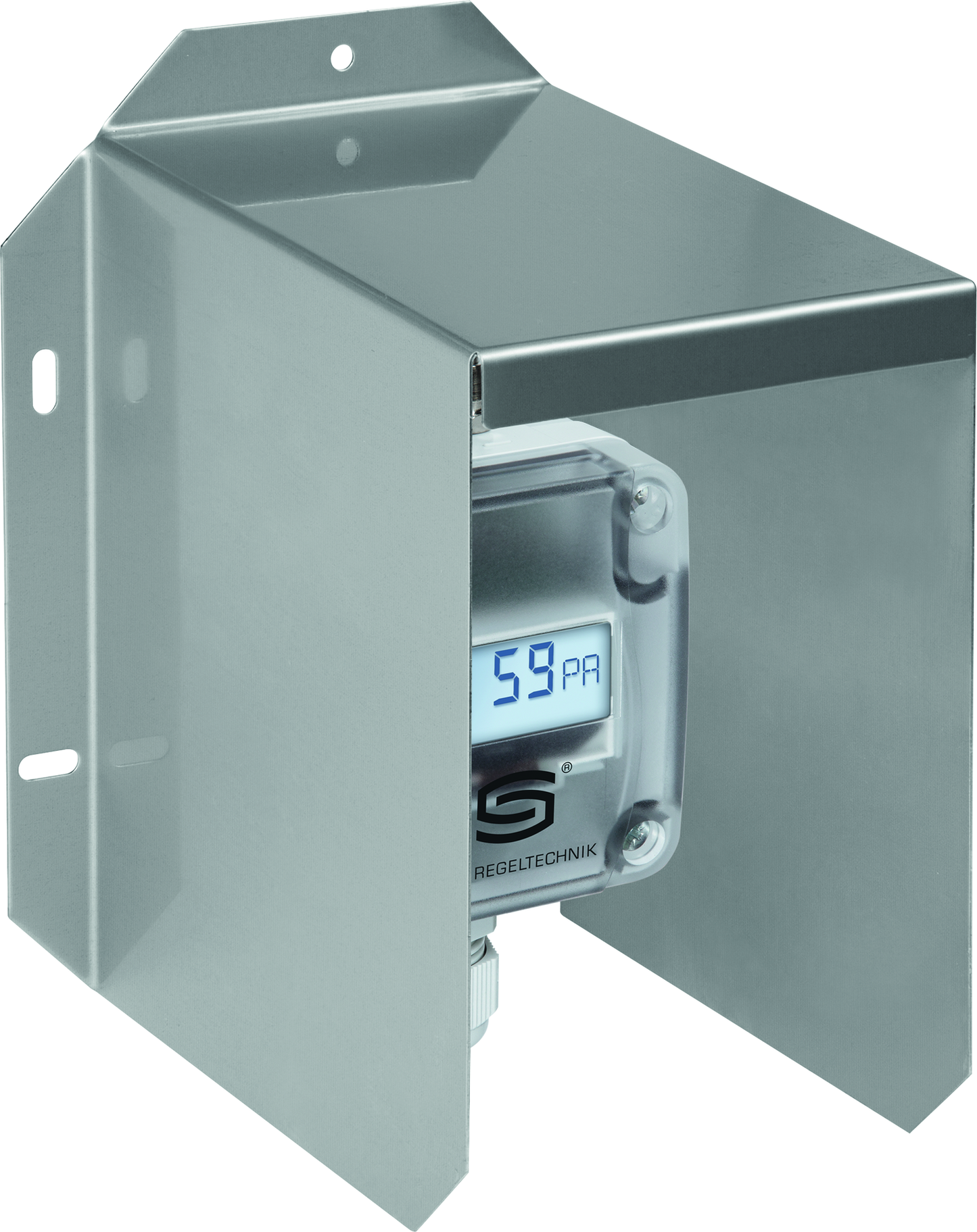

Wetter- und Sonnenschutz WS-04 - S+S Regeltechnik
